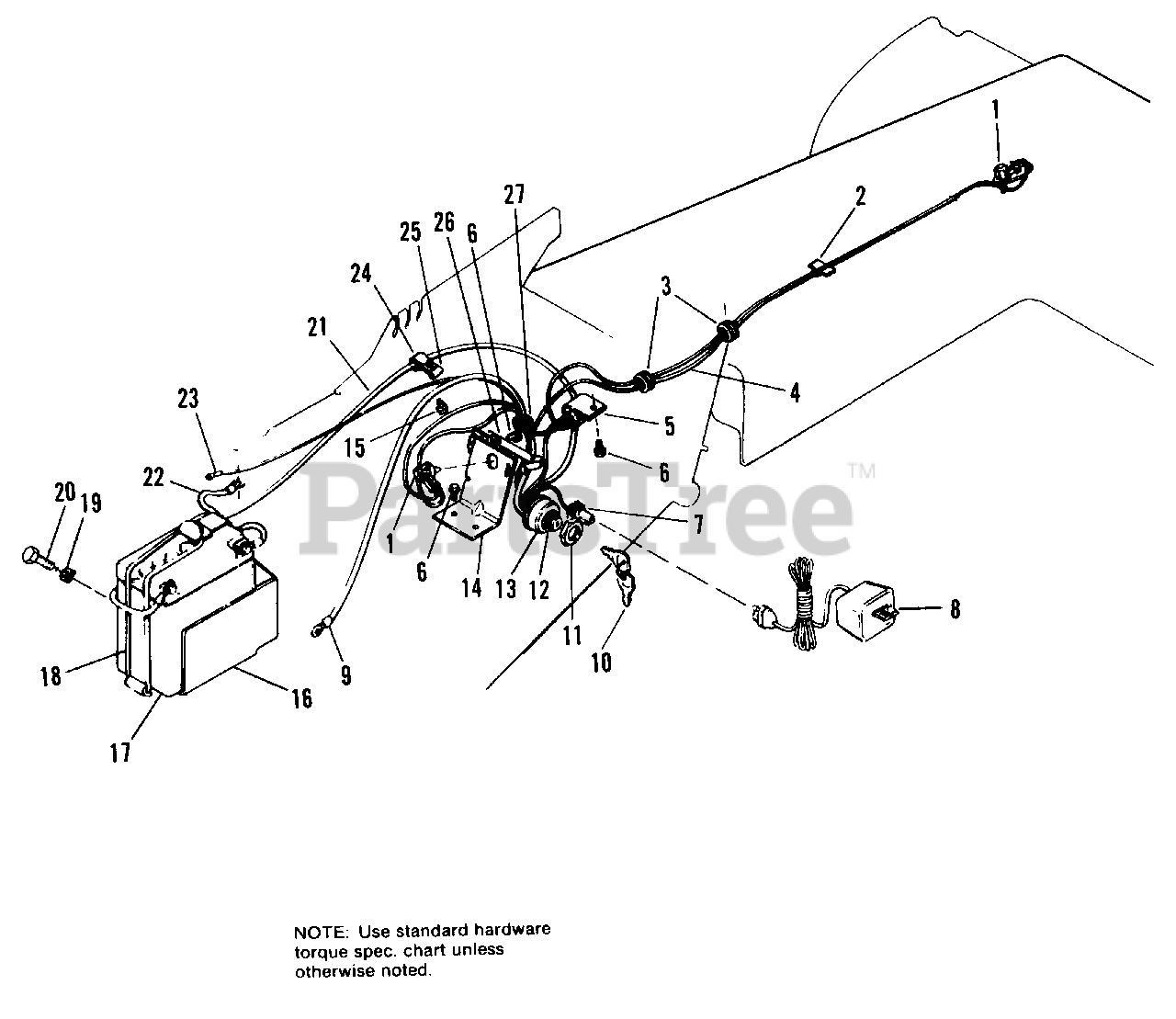

1600326 - AGCO Scamp Rear-Engine Riding Mower, 5hp Electrical Group Parts Diagram

Scamp Rear-Engine Riding Mower, 5hp

Electrical Group Parts Diagram

  • Title

1

Simplicity 1609279

SWITCH

$

$

Not available

2

Simplicity 176912

CLIP

$

$

Not available

3

Simplicity 176833

GROMMET

$

$

Not available

4

Simplicity 176835

WIRE, Green

$

$

Not available

5

Simplicity 176792

INTERLOCK

$

$

Not available

6

Simplicity 2829000

SCREW, Hex, Washer Hd., Taptite, 1/4-20 x 3

$

$

Not available

7

Simplicity 176852

RECEPTACLE, Charger

$

$

Not available

8

Simplicity 170046

CHARGER, Battery

$

$

Not available

9

Simplicity 177981

CABLE ASSY. (Switch to Start)

$

$

Not available

10

Simplicity 1717163SM

KEYS

$9.49

$

In Stock, only 3 left!

0

11

Simplicity 2122234SM

NUT, Hex, Special
(Superseded to 704229)

$3.49

$

Usually ships in 2-12 days

0

12

Simplicity 2818906

LOCKWASHER, 5/8

$

$

Not available

13

Simplicity 122218

SWITCH, Ignition

$

$

Not available

14

Simplicity 176805

SWITCH, Support

$

$

Not available

15

Simplicity 2827428

SCREW, Hex, Washer Hd., Taptite, 1/4-20 x 3/8

$

$

Not available

16

Simplicity 176623

SUPPORT ASSY., Battery

$

$

Not available

17

Simplicity 177390

BATTERY & CLIP ASSY.

$

$

Not available

18

Simplicity 2172744SM

STRAP, Rubber

$19.99

$

Usually ships in 2-12 days

0

19

Simplicity 920299

NUT, Speed

$

$

Not available

20

Simplicity 2828688

SCREW, Self Tapping, #10 x 1/2

$

$

Not available

21

Simplicity 2176974

CABLE ASSY. (Battery pos. to ignition switch)

$

$

Not available

22

Simplicity 2176975

CABLE ASSY. (Battery neg. to ground)

$

$

Not available

23

Simplicity 176834

WIRE, Black

$

$

Not available

24

Simplicity 154247

CLAMP

$

$

Not available

25

Simplicity 2832771

CLIP, Cable

$

$

Not available

26

Simplicity 176804

CLIP

$

$

Not available

27

Simplicity 2172176SM

GROMMET

$6.99

$

In Stock, only 2 left!

0
