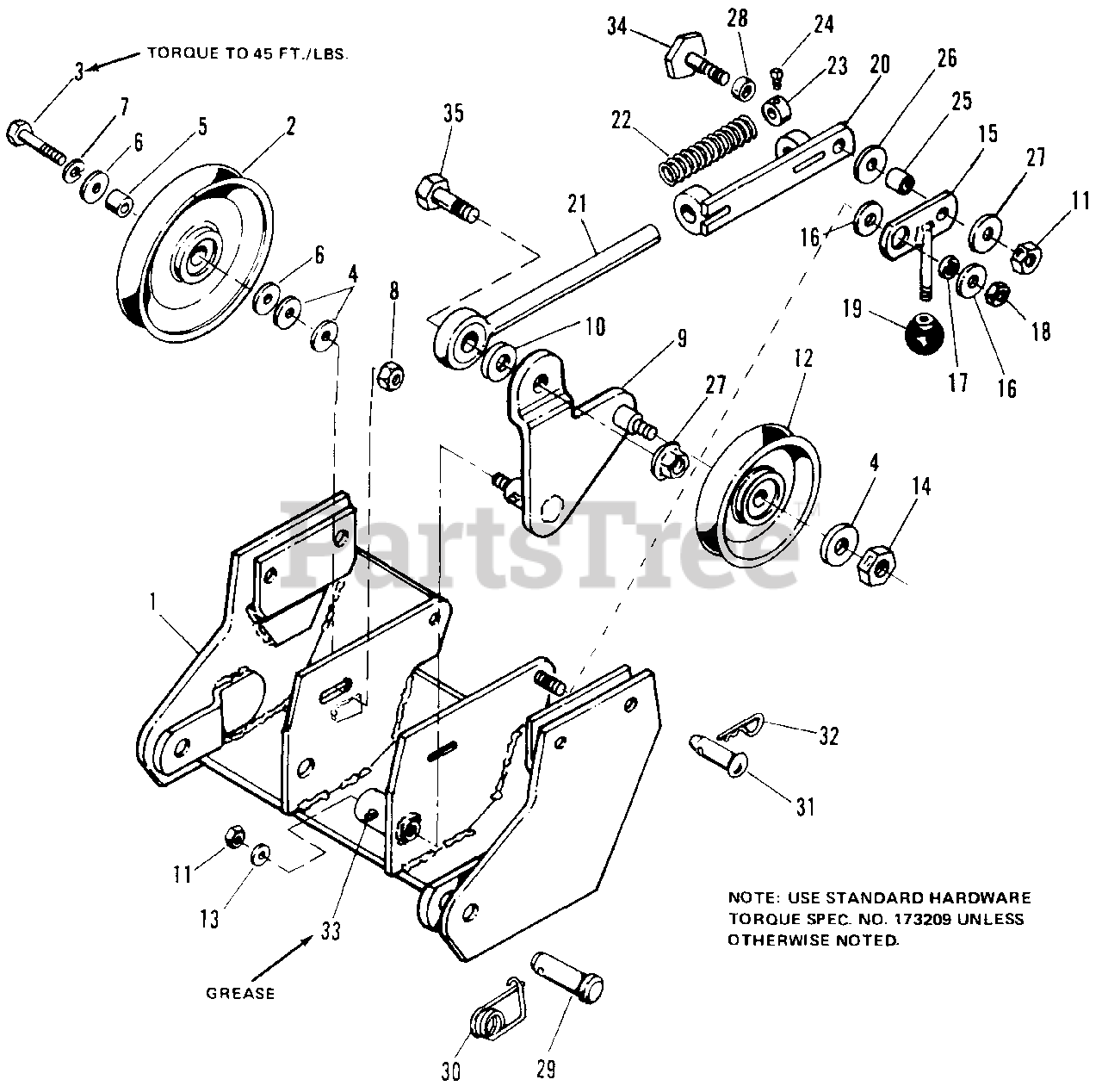

1600328 - Simplicity Hitch Assembly 60" Rotary Mower & 57" Sickle Bar Hitch Assy Parts Diagram

Hitch Assembly

60" Rotary Mower & 57" Sickle Bar Hitch Assy Parts Diagram

  • Title

1

Simplicity 177010

SUPPORT ASSY

$

$

Not available

2

Simplicity 2171641SM

PULLEY

$126.99

$

In Stock, only 2 left!

0

3

Simplicity 923433

CAPSCREW, Hex Hd., 3/8-24 x 1-3/4, Gr. 8

$

$

Not available

4

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

5

Simplicity 2170291

SPACER

$

$

Not available

6

Simplicity 2153052

WASHER

$

$

Not available

7

Simplicity 1916965SM

LOCKWASHER, Spring, 3/8
(Superseded to 703454)

$3.49

$

In Stock, only 3 left!

0

8

Simplicity 930789

NUT, Flange, Whiz Lock, 3/8-24

$

$

Not available

9

Simplicity 177014

LEVER ASSY

$

$

Not available

10

Simplicity 2818431

WASHER, Plain, 1/2

$

$

Not available

11

Simplicity 2823428

NUT, Hex, Full Lock, 3/8-16

$

$

Not available

12

Simplicity 2171640SM

PULLEY

$126.99

$

In Stock, only 2 left!

0

13

Simplicity 2154325

WASHER

$

$

Not available

14

Simplicity 2824650

NUT, Hex, Full Lock, Jam, 1/2-13

$

$

Not available

15

Simplicity 171642

LEVER ASSY

$

$

Not available

16

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

17

Simplicity 2154177SM

SPACER

$41.99

$

In Stock, only 3 left!

0

18

Simplicity 2828731

NUT, Hex, Lock, Jam, 1/2-13

$

$

Not available

19

Simplicity 2122005SM

KNOB

$15.99

$

Usually ships in 2-12 days

0

20

Simplicity 177004

GUIDE ASSY, Rod

$

$

Not available

21

Simplicity 177204

BOLT, Eye

$

$

Not available

22

Simplicity 2163103SM

SPRING

$8.99

$

Usually ships in 2-12 days

0

23

Simplicity 105201

COLLAR, Set

$

$

Not available

24

Simplicity 2828804

SCREW, Set, Sq. Nk., Cup Pt., 1/4-20 x 3/8, Gr. 8

$

$

Not available

25

Simplicity 2153081

SPACER

$

$

Not available

26

Simplicity 2159134

WASHER, Special

$

$

Not available

27

Simplicity 2828352

NUT, Hex, Flange, Whix Lock, 3/8-16
(Superseded to 703793)

$4.49

$

Usually ships in 2-12 days

0

28

Simplicity 1729270SM

BUSHING

$

$

Not available

29

Simplicity 2112052

PIN, Yolk

$

$

Not available

30

Simplicity 2176012SM

CLIP, Pin Safety
(Superseded to 703852)

$4.49

$

In Stock, Qty 13

0

31

Simplicity 2102004SM

PIN, Pivot

$9.99

$

In Stock, only 2 left!

0

32

Simplicity 2106788

CLIP, Spring

$

$

Not available

33

Simplicity 2821133SM

FITTING, Lube, Dr. Type, 1/2
(Superseded to 703907)

$5.49

$

In Stock, Qty 20+

0

34

Simplicity 2108418

SCREW

$

$

Not available

35

Simplicity 2108412

BOLT, Shoulder

$

$

Not available
