1600342 - Simplicity 26" Revitalizer Attachment 26" Revitalizer Frame & Wheels (5008, 5010) Parts Diagram

26" Revitalizer Attachment

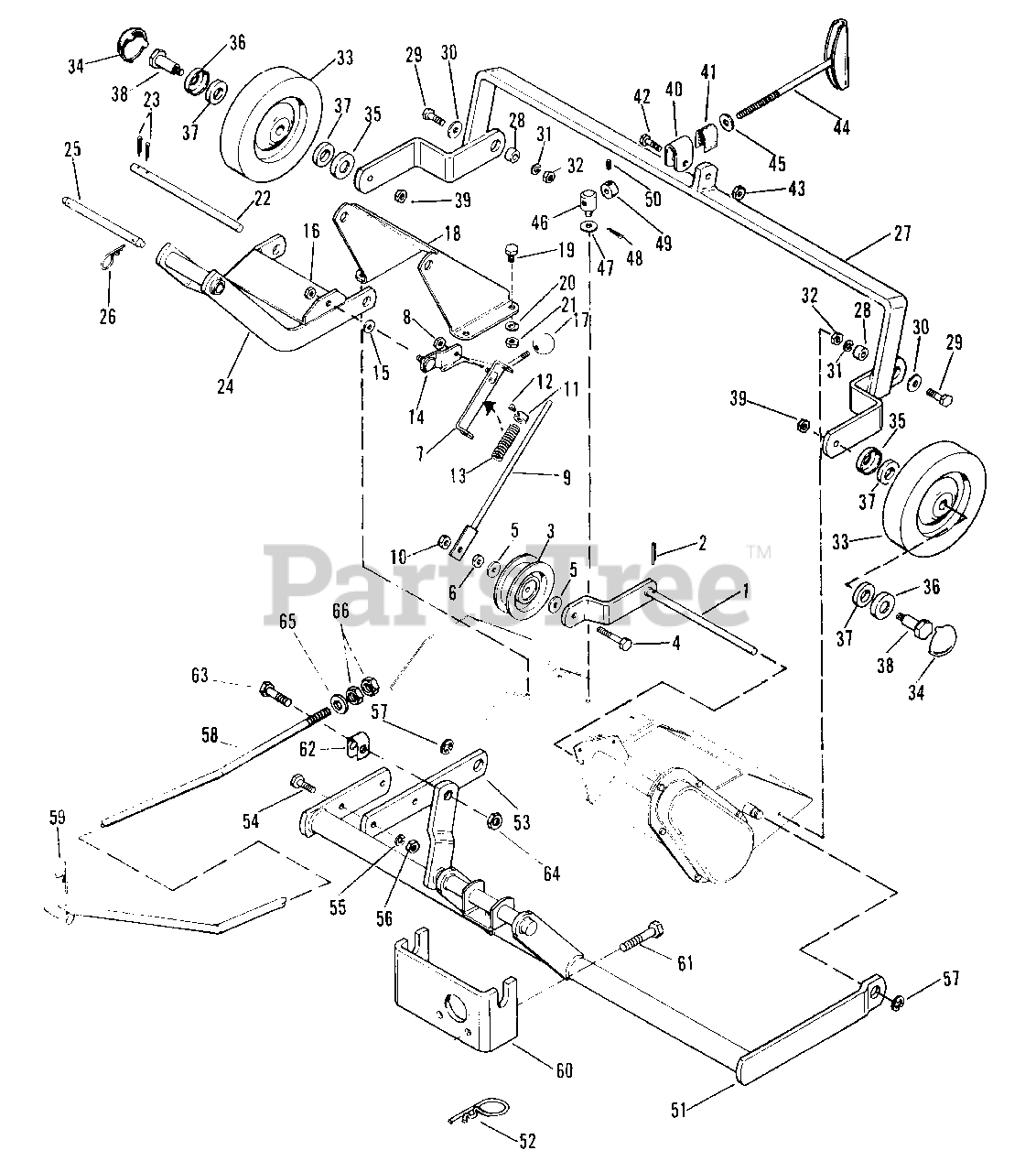

26" Revitalizer Frame & Wheels (5008, 5010) Parts Diagram

  • Title

1

Simplicity 170390

Idler Arm Assembly

$

$

Not available

2

Simplicity 2818452

Cotter Pin, 1/8 x 1" lg.

$

$

Not available

3

Simplicity 2154534SM

Idler Pulley

$32.99

$

In Stock, only 2 left!

0

4

Simplicity 2819361

Hex Capscrew, 3/8"-16 x 1-3/4" lg.

$

$

Not available

5

Simplicity 2817642

Plain Washer, 5/16"

$

$

Not available

6

Simplicity 2823362

Hex Nut, Full, 3/8"-16

$

$

Not available

7

Simplicity 2158406

Rod Guide Assembly

$

$

Not available

8

Simplicity 2828698

Hex Nut Full Lock, Jam, 5/16"-18

$

$

Not available

9

Simplicity 170352

Clutch Rod Assembly

$

$

Not available

10

Simplicity 2823428

Hex Nut, Full, 3/8"-16

$

$

Not available

11

Simplicity 1729276SM

Set Collar

$

$

Not available

12

Simplicity 2828804

Set Screw, Sq. Hd., Clip Pt. 1/4"-20 x 3/8"

$

$

Not available

13

Simplicity 2163103SM

Spring

$8.49

$

Usually ships in 2-12 days

0

14

Simplicity 170349

Clutch Lever Assembly

$

$

Not available

15

Simplicity 2159134

Special Washer

$

$

Not available

16

Simplicity 2823362

Hex Nut, Full, 5/16"-18

$

$

Not available

17

Simplicity 2122005SM

Knob

$14.99

$

In Stock, only 1 left!

0

18

Simplicity 170398

Arm Support

$

$

Not available

19

Simplicity 2819318

Hex Capscrew, 5/16"-18 x 5/8" lg.

$

$

Not available

20

Simplicity 1917356SM

Lock Washer, 5/16"
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

21

Simplicity 917317

Hex Nut, Full, 5/16"-18

$

$

Not available

22

Simplicity 170345

Pivot Pin

$

$

Not available

23

Simplicity 2818452

Cotter Pin, 1/8" x 1" lg.

$

$

Not available

24

Simplicity 170399

Link Assembly

$

$

Not available

25

Simplicity 156266

Pin

$

$

Not available

26

Simplicity 1918196SM

Spring Clip
(Superseded to 5025210YP)

$3.99

$

In Stock, only 3 left!

0

27

Simplicity 170421

Frame Assembly

$

$

Not available

28

Simplicity 2153073

Spacer

$

$

Not available

29

Simplicity 2807731

Hex Capscrew, 3/8"-16 x 1" lg.

$

$

Not available

30

Simplicity 2817642

Plain Washer, 5/16"

$

$

Not available

31

Simplicity 1916965SM

Lock Washer 3/8"
(Superseded to 703454)

$3.49

$

In Stock, Qty 11

0

32

Simplicity 2816950SM

Hex Nut, Full, 3/8"-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 11

0

33

Simplicity 108702

Wheel

$

$

Not available

34

Simplicity 108783

Hub Cap

$

$

Not available

35

Simplicity 108827

Seal Housing

$

$

Not available

36

Simplicity 108820

Seal Housing

$

$

Not available

37

Simplicity 108819

Wheel Seal

$

$

Not available

38

Simplicity 108764

Wheel Bolt

$

$

Not available

39

Simplicity 2828731

Hex Nut, Lock, Jam 3/8"-16

$

$

Not available

40

Simplicity 2152050SM

Rod Guide

$9.49

$

Usually ships in 2-12 days

0

41

Simplicity 2121175SM

Liner

$7.99

$

Usually ships in 2-12 days

0

42

Simplicity 2807729

Hex Capscrew, 5/16"-18 x 1-1/4" lg.

$

$

Not available

43

Simplicity 2823362

Hex Nut Full, Lock, 5/16"-18

$

$

Not available

44

Simplicity 2108415

Adjusting Screw Assembly

$

$

Not available

45

Simplicity 1924940SM

Plain Washer, 3/8"
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

46

Simplicity 108172

Pivot

$

$

Not available

47

Simplicity 2817642

Plain Washer, 5/16"

$

$

Not available

48

Simplicity 2818447

Cotter Pin, 3/32" x 3/4" lg.

$

$

Not available

49

Simplicity 105201

Set Collar

$

$

Not available

50

Simplicity 2830545

Soc. Hd. Set Screw, Hollow Pt., 1/4"-20 x 5/16" lg.

$

$

Not available

51

Simplicity 170403

Hitch Assembly

$

$

Not available

52

Simplicity 2106788

Spring Clip

$

$

Not available

53

Simplicity 170415

R.H. Pivot Bar

$

$

Not available

54

Simplicity 2816431

Hex Capscrew, 5/16"-18 x 1" lg.

$

$

Not available

55

Simplicity 1917356SM

LockWasher, 5/16"
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

56

Simplicity 1917372SM

Hex Nut, Full, 5/16"-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

57

Simplicity 2827793SM

"E" Ring
(Superseded to 703977)

$4.99

$

In Stock, Qty 20+

0

58

Simplicity 176202

Lift Rod

$

$

Not available

59

Simplicity 1918196SM

Spring Clip
(Superseded to 5025210YP)

$3.99

$

In Stock, only 3 left!

0

60

Simplicity 123096

Attachment Hitch

$

$

Not available

61

Simplicity 2828726

Hex Capscrew, 3/8"-16 x 1-1/4" lg.

$

$

Not available

62

Simplicity 2152050SM

Rod Guide

$9.49

$

Usually ships in 2-12 days

0

63

Simplicity 2830570

Hex Capscrew, 5/16"-18 x 1-1/2" lg.

$

$

Not available

64

Simplicity 2823362

Hex Nut, Full, Lock, 5/16"-18

$

$

Not available

65

Simplicity 2818430

Plain Washer, 7/16"

$

$

Not available

66

Simplicity 2819262

Hex Nut, Jam, 1/2"-20

$

$

Not available
