1600343 - Simplicity 30" Tiller Attachment 30" Tiller Deflector & Tines (5008, 5010) Parts Diagram

30" Tiller Attachment

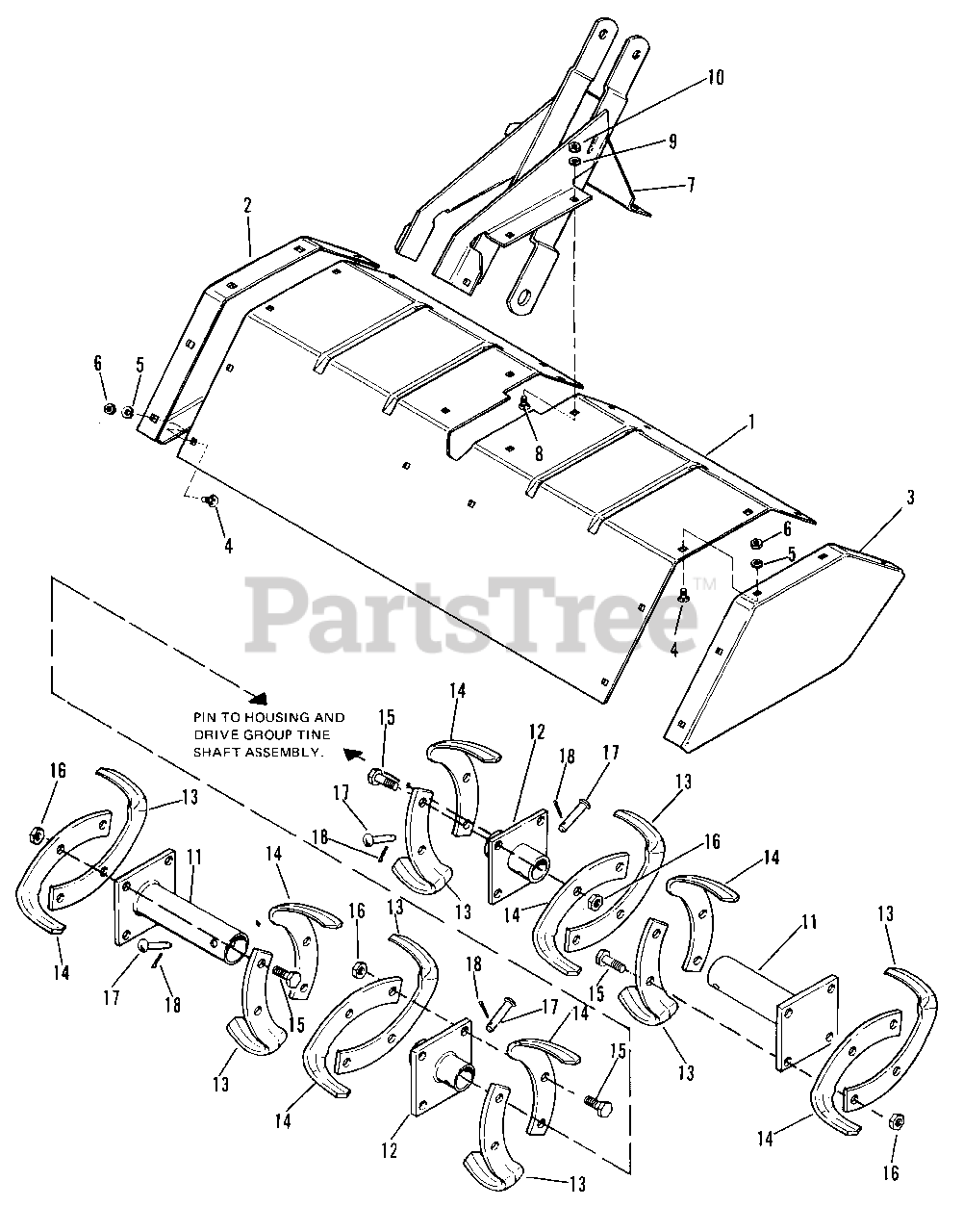

30" Tiller Deflector & Tines (5008, 5010) Parts Diagram

  • Title

1

Simplicity 170034

DEFLECTOR

$

$

Not available

2

Simplicity 2105273A

DEFLECTOR, End plate, L.H.

$

$

Not available

3

Simplicity 2105274A

DEFLECTOR, End plate, R.H.

$

$

Not available

4

Simplicity 923700

BOLT, Carriage, 5/16-18 x 1/2

$

$

Not available

5

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

6

Simplicity 1917372SM

NUT, hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

7

Simplicity 170324

SUPPORT ASSEMBLY

$

$

Not available

8

Simplicity 2823346

BOLT, Carriage, 5/16-18 x 3/4

$

$

Not available

9

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

10

Simplicity 1917372SM

NUT, hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

11

Simplicity 2170127

TINE HUB ASSEMBLY

$

$

Not available

12

Simplicity 118084

INNER TINE PLATE ASSY.

$

$

Not available

13

Simplicity 1729271SM

TINE BLADE L.H.

$

$

Not available

14

Simplicity 1729272SM

TINE BLADE R.H.

$28.99

$

Usually ships in 2-12 days

0

15

Simplicity 920488

CAPSCREW, Hex, 7/16-20 x 1-1/4

$

$

Not available

16

Simplicity 2828867

LOCKNUT, hex, 7/16-20

$

$

Not available

17

Simplicity 2118053SM

PIN
(Superseded to 704241)

$9.99

$

Usually ships in 2-12 days

0

18

Simplicity 2818451

PlN, Cotter, 1/8 x 3/4

$

$

Not available
