1600343 - Simplicity 30" Tiller Attachment 30" Tiller Hitch & Lift (5008, 5010) Parts Diagram

30" Tiller Attachment

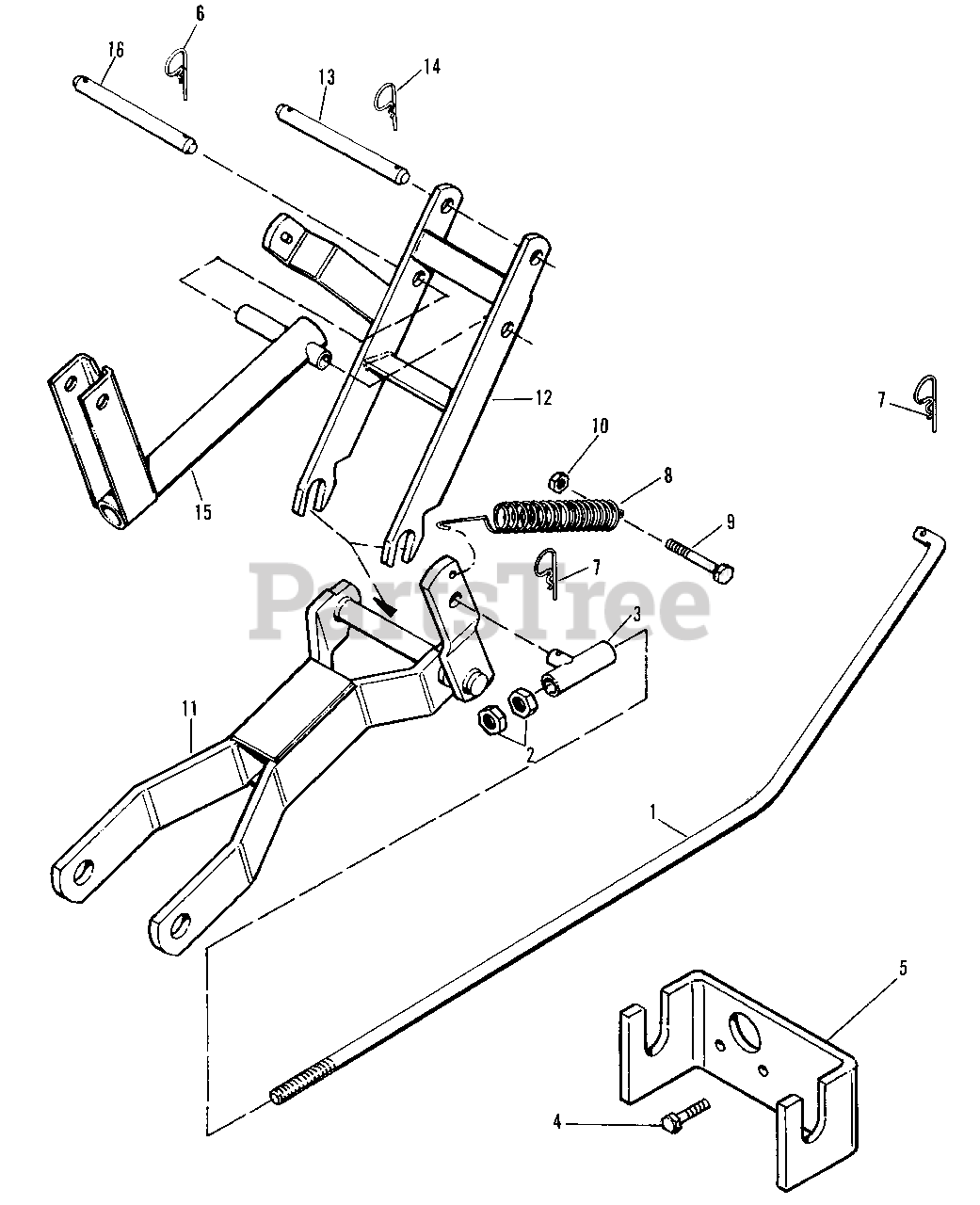

30" Tiller Hitch & Lift (5008, 5010) Parts Diagram

  • Title

1

Simplicity 176202

LIFT ROD (Front)

$

$

Not available

2

Simplicity 2819262

NUT, Hex jam, 1/2-20

$

$

Not available

3

Simplicity 170436

GUIDE TUBE ASSEMBLY

$

$

Not available

4

Simplicity 2828726

CAPSCREW, Hex, 3/8-16 x 1-1/4

$

$

Not available

5

Simplicity 123096

HITCH

$

$

Not available

6

Simplicity 1918196SM

CLIPS, Hairpin
(Superseded to 5025210YP)

$3.99

$

In Stock, only 2 left!

0

7

Simplicity 1918196SM

CLIPS, Hairpin
(Superseded to 5025210YP)

$3.99

$

In Stock, only 2 left!

0

8

Simplicity 170383

SPRING

$

$

Not available

9

Simplicity 2821972

CAPSCREW, hex, 3/8-16 x 2-1/2

$

$

Not available

10

Simplicity 2816950SM

NUT, hex, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 11

0

11

Simplicity 170554

HITCH & Lift ASSEMBLY

$

$

Not available

12

Simplicity 1650482

STRUT ASSEMBLY

$

$

Not available

13

Simplicity 170117

PIN

$

$

Not available

14

Simplicity 1918196SM

CLIPS, Hairpin
(Superseded to 5025210YP)

$3.99

$

In Stock, only 2 left!

0

15

Simplicity 170114

BEAM

$

$

Not available

16

Simplicity 170115

PIN

$

$

Not available
