1600395 - Simplicity Cart Cover Vacuum Collector Cart Cover Parts Diagram

Cart Cover

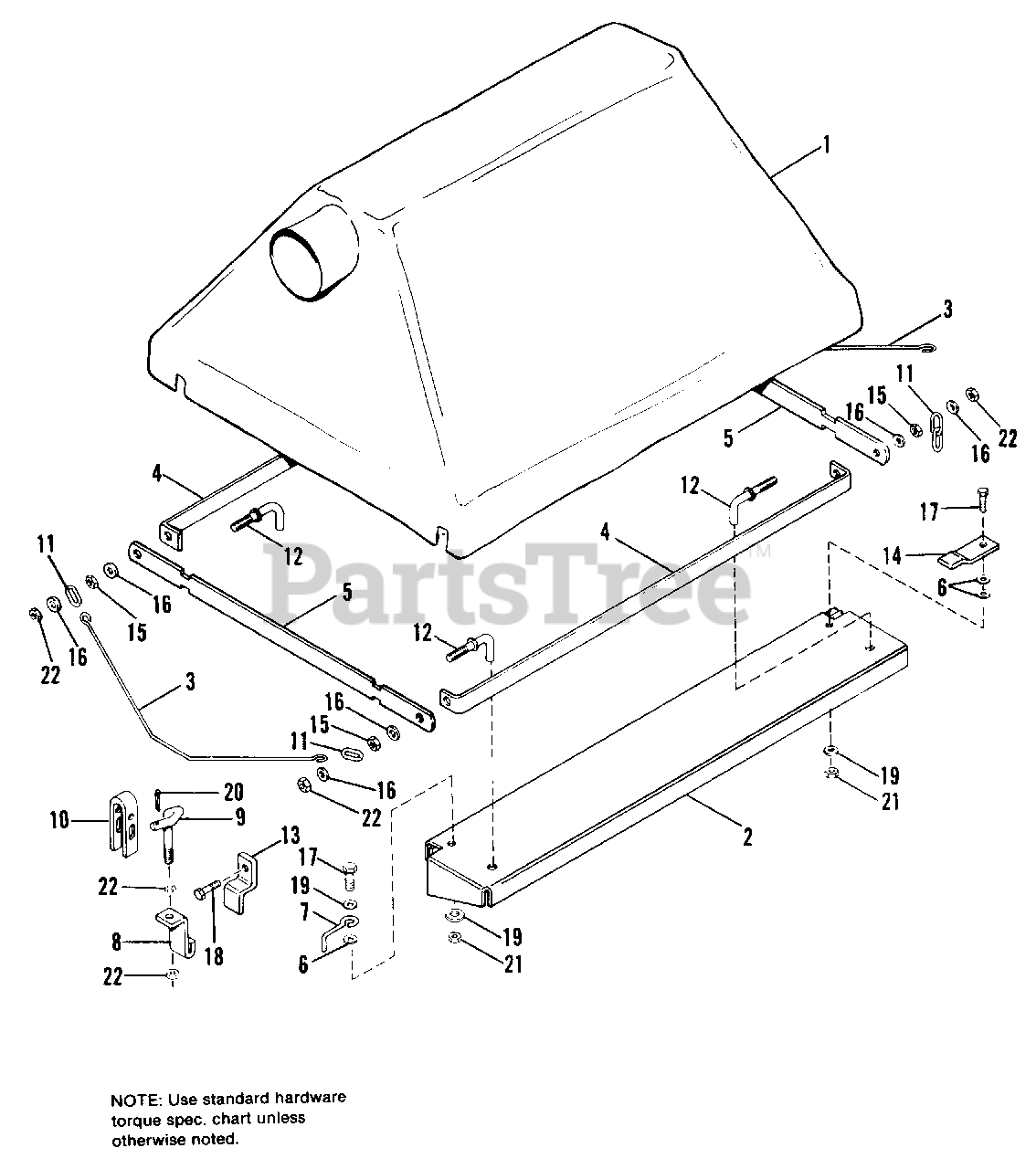

Vacuum Collector Cart Cover Parts Diagram

  • Title

1

Simplicity 2177917SM

COVER, Cart

$

$

Not available

2

Simplicity 178187

PANEL, Side

$

$

Not available

3

Simplicity 178188

BAIL

$

$

Not available

4

Simplicity 178191

BAR, Reinforcement, Side

$

$

Not available

5

Simplicity 178192

BAR, Reinforcement, End

$

$

Not available

6

Simplicity 2159134

WASHER, Special

$

$

Not available

7

Simplicity 1630-65

STOP, Belt

$

$

Not available

8

Simplicity 170000

LATCH

$

$

Not available

9

Simplicity 170001

LATCH, Rod

$

$

Not available

10

Simplicity 170002

LEVER

$

$

Not available

11

Simplicity 170134

LINK, Repair

$

$

Not available

12

Simplicity 178189

PIN

$

$

Not available

13

Simplicity 178190

BRACKET

$

$

Not available

14

Simplicity 178198

BRACKET

$

$

Not available

15

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 12

0

16

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

17

Simplicity 1921332SM

CAPSCREW, Hex Hd., 5/16-18 x 3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

18

Simplicity 1920415SM

CAPSCREW, Hex Hd., 3/8-16 x 1-1/4
(Superseded to 703871)

$4.99

$

In Stock, only 2 left!

0

19

Simplicity 1919326SM

WASHER, Plain, 5/16

$4.49

$

In Stock, Qty 18

0

20

Simplicity 1918452SM

COTTER PIN, 1/8 x 1
(Superseded to 703795)

$5.99

$

Usually ships in 2-12 days

0

21

Simplicity 1923362SM

LOCKNUT, Hex, 5/16-18 x 17/64
(Superseded to 703164)

$3.49

$

In Stock, Qty 10

0

22

Simplicity 1930645SM

LOCKNUT, Hex, Full, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0
