1600419 - Simplicity 10" Tine Extension Tine Extension, 10 Parts Diagram

10" Tine Extension

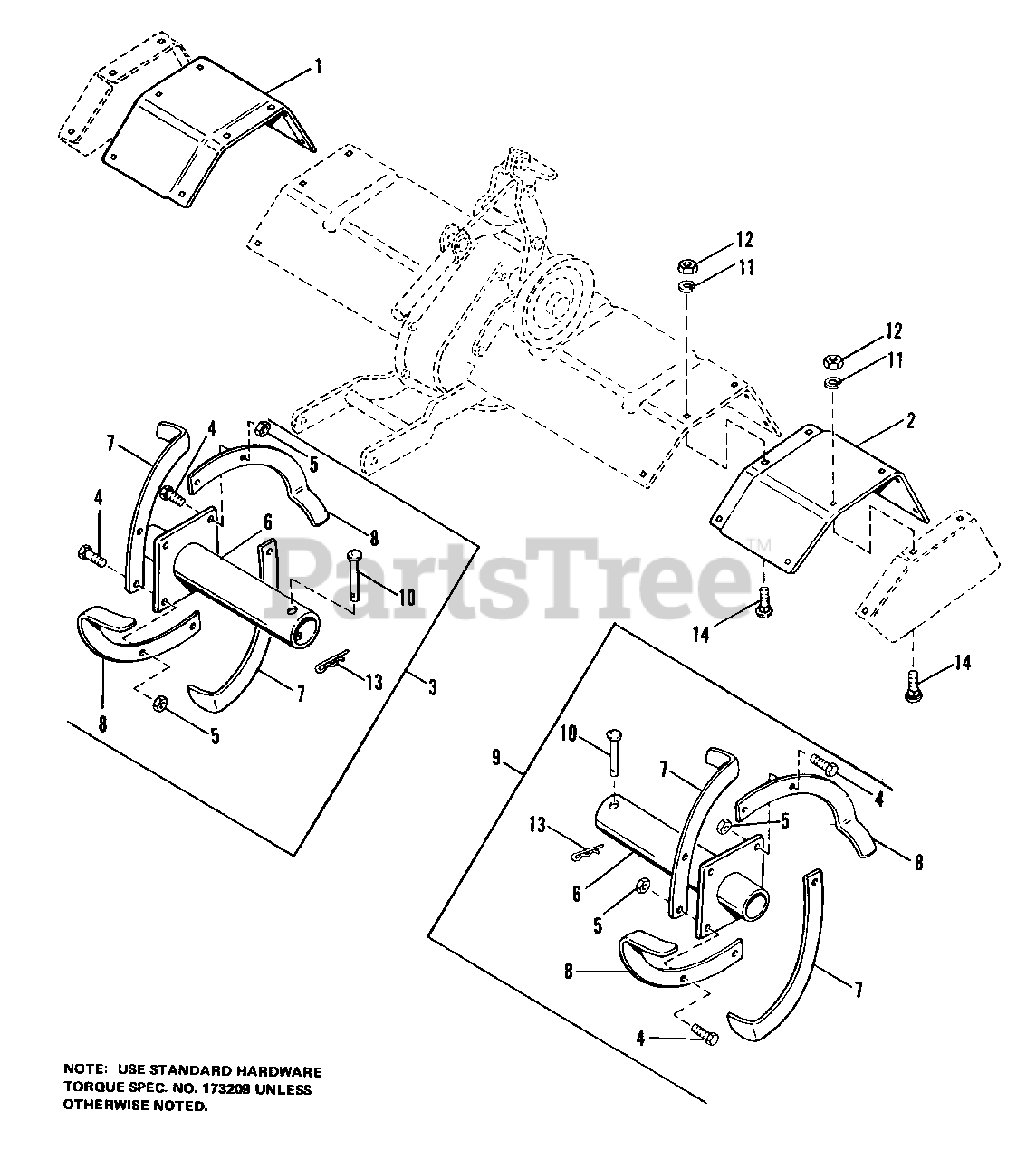

Tine Extension, 10 Parts Diagram

  • Title

1

Simplicity 105275

DEFLECTOR, Ext., R.H.

$

$

Not available

2

Simplicity 105276

DEFLECTOR, Ext., L.H.

$

$

Not available

3

Simplicity 1609339

BLADE ASSY, L.H., Tine

$

$

Not available

4

Simplicity 920488

CAPSCREW, Hex Hd,, 7/16-20 x 1-1/4

$

$

Not available

5

Simplicity 2828867

NUT, Hex Lock, 7/16-20

$

$

Not available

6

Simplicity 1609334

HUB & PLATE ASSY, Outer Tine

$

$

Not available

7

Simplicity 1729271SM

TINE BLADE, L.H.

$

$

Not available

8

Simplicity 1729272SM

TINE BLADE, R.H.

$28.99

$

Usually ships in 2-12 days

0

9

Simplicity 1609340

BLADE ASSY, R.H., Outer Tine

$

$

Not available

10

Simplicity 2118053SM

PIN
(Superseded to 704241)

$9.99

$

Usually ships in 2-12 days

0

11

Simplicity 1917356SM

LOCKWASHER, Spring, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

12

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

13

Simplicity 1918196SM

PIN, Quick, 1-7/8
(Superseded to 5025210YP)

$3.99

$

In Stock, only 2 left!

0

14

Simplicity 2820562

BOLT, Rd., Sht. Sq. Nk., 5/16-18 x 3/4

$

$

Not available
