16009-02 (1746633) - Troy-Bilt Light MAIN ASSEMBLY Parts Diagram

Light

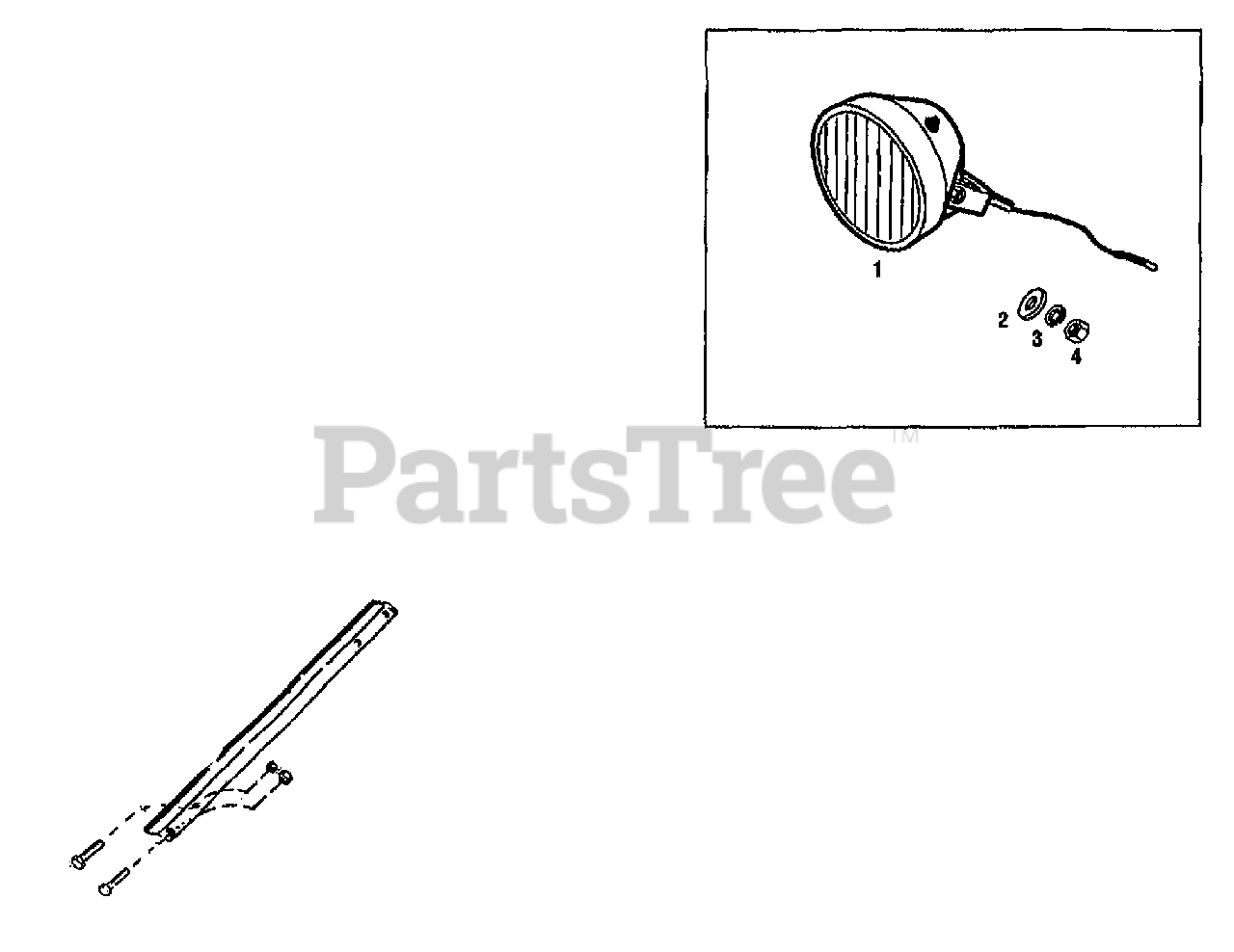

MAIN ASSEMBLY Parts Diagram

  • Title
1

Troy-Bilt 1745785

ASSM-LIGHT

$

$

Currently unavailable

2

Troy-Bilt 1107383

WASHER-FLAT 3/8 SAE
(Superseded to 736-3050)

$3.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 1100243

WASHER-LK .375 @ DEPL
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 1186231

NUT-HEX 3/8-16 ZP
(Superseded to 912-3017)

$3.99

$

In Stock, Qty 20+

0

Troy-Bilt 1746633

KIT-LIGHT

$

$

Currently unavailable
