Parts Home > Toro > Walk-Behind Mowers > 16050 - Toro Walk-Behind Mower, Electric (SN: 002000001 - 002999999) (1972) > ELECTRIC MOTOR

16050 - Toro Walk-Behind Mower, Electric (SN: 002000001 - 002999999) (1972)

Walk-Behind Mower, Electric

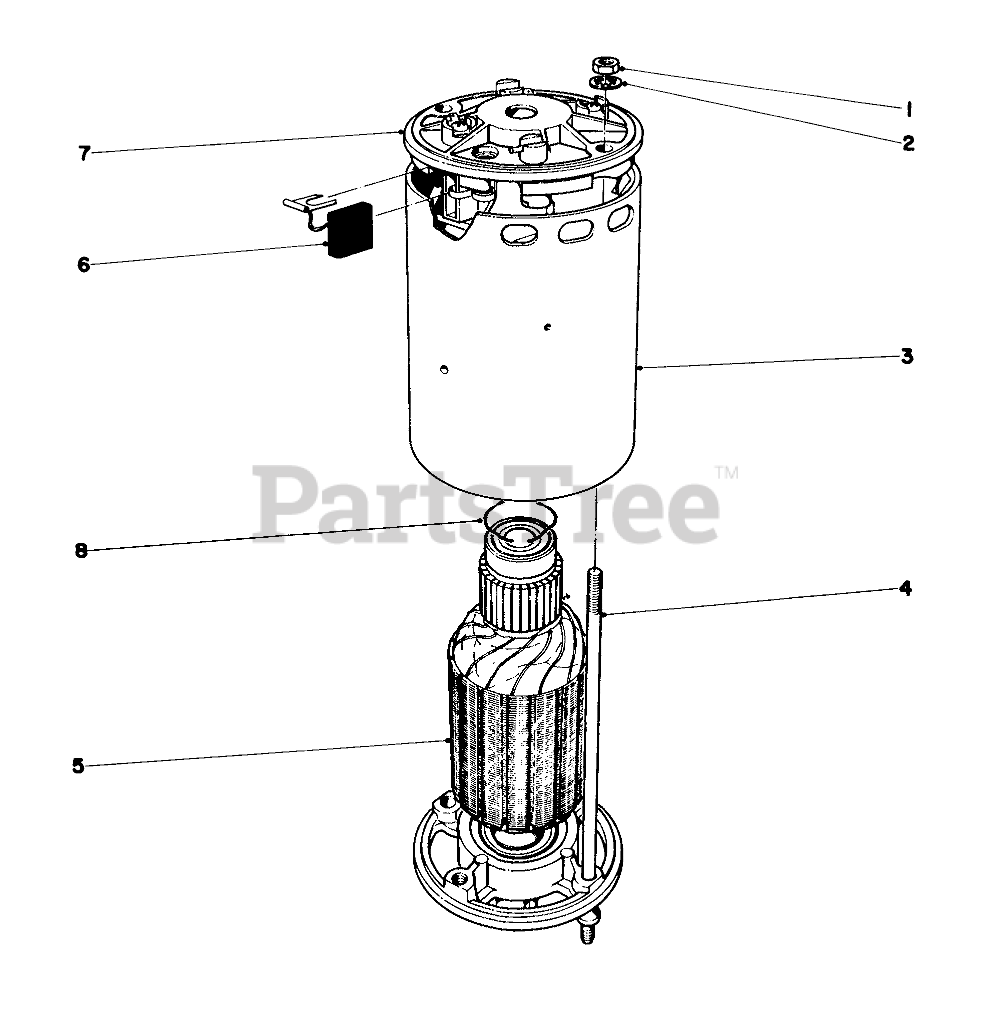

16050 - Toro Walk-Behind Mower, Electric (SN: 002000001 - 002999999) (1972) > Parts Diagrams (3) > ELECTRIC MOTOR

  • Title
3217-6

1

NUT-HEX

Part# 3217-6

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.02

3254-2

2

WASHER-LOCK, INTERNAL

Part# 3254-2

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $0.21

218-410

3

Motor Shell

Part# 218-410

OEM Warranty Repair Part for Toro

Currently unavailable

218-409

4

Tie Bolt

Part# 218-409

OEM Warranty Repair Part for Toro

Currently unavailable

218-408

5

Armature Assy. w/Bearings

Part# 218-408

OEM Warranty Repair Part for Toro

Currently unavailable

218-406

6

Brush-Motor

Part# 218-406

OEM Warranty Repair Part for Toro

Not available

218-411

7

Upper End Plate Assembly of Brushes

Part# 218-411

OEM Warranty Repair Part for Toro

Currently unavailable

218-448

8

Thrust Spring

Part# 218-448

OEM Warranty Repair Part for Toro

Currently unavailable
