16050 - Toro Walk-Behind Mower, Electric (SN: 002000001 - 002999999) (1972)

Walk-Behind Mower, Electric

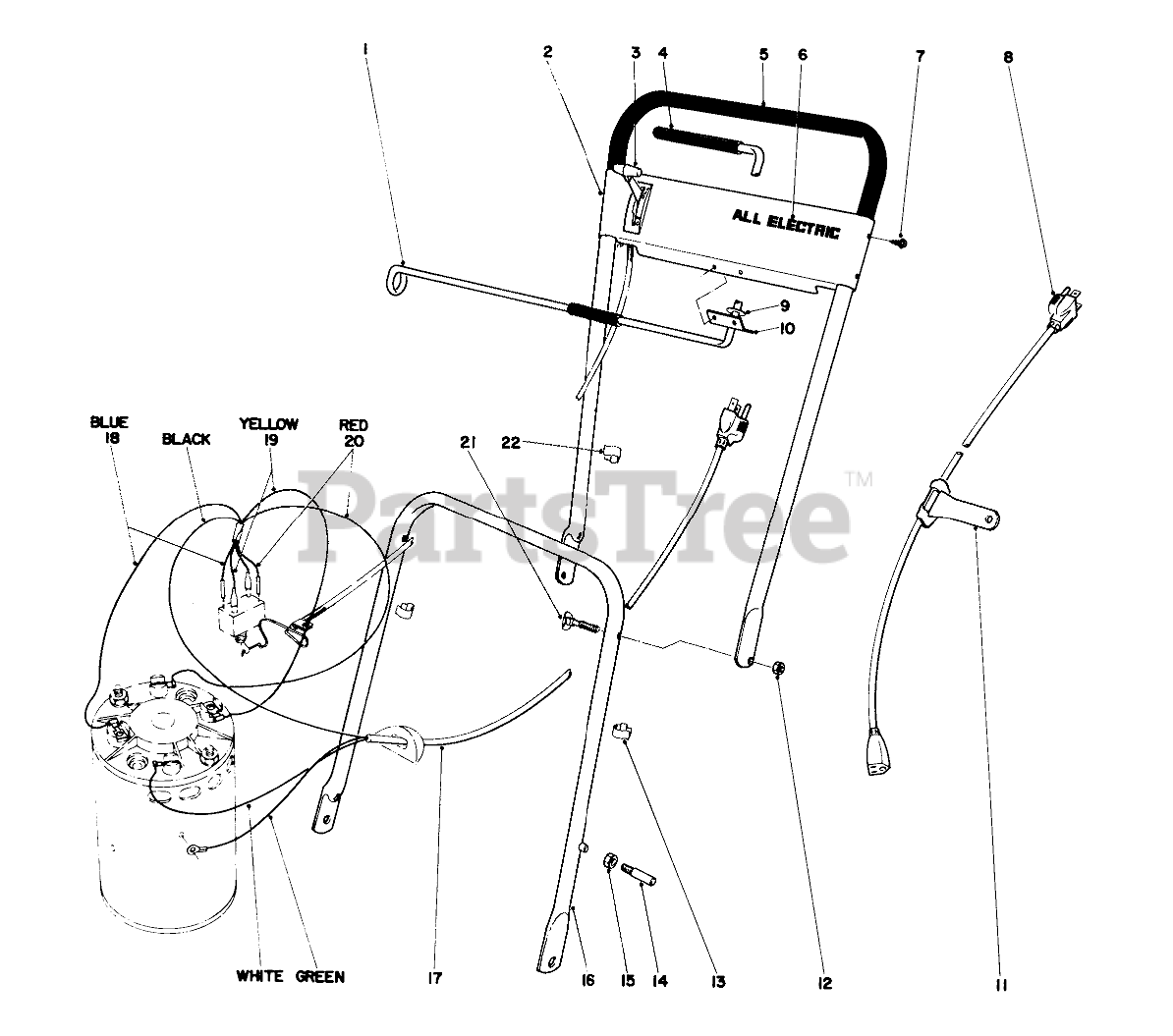

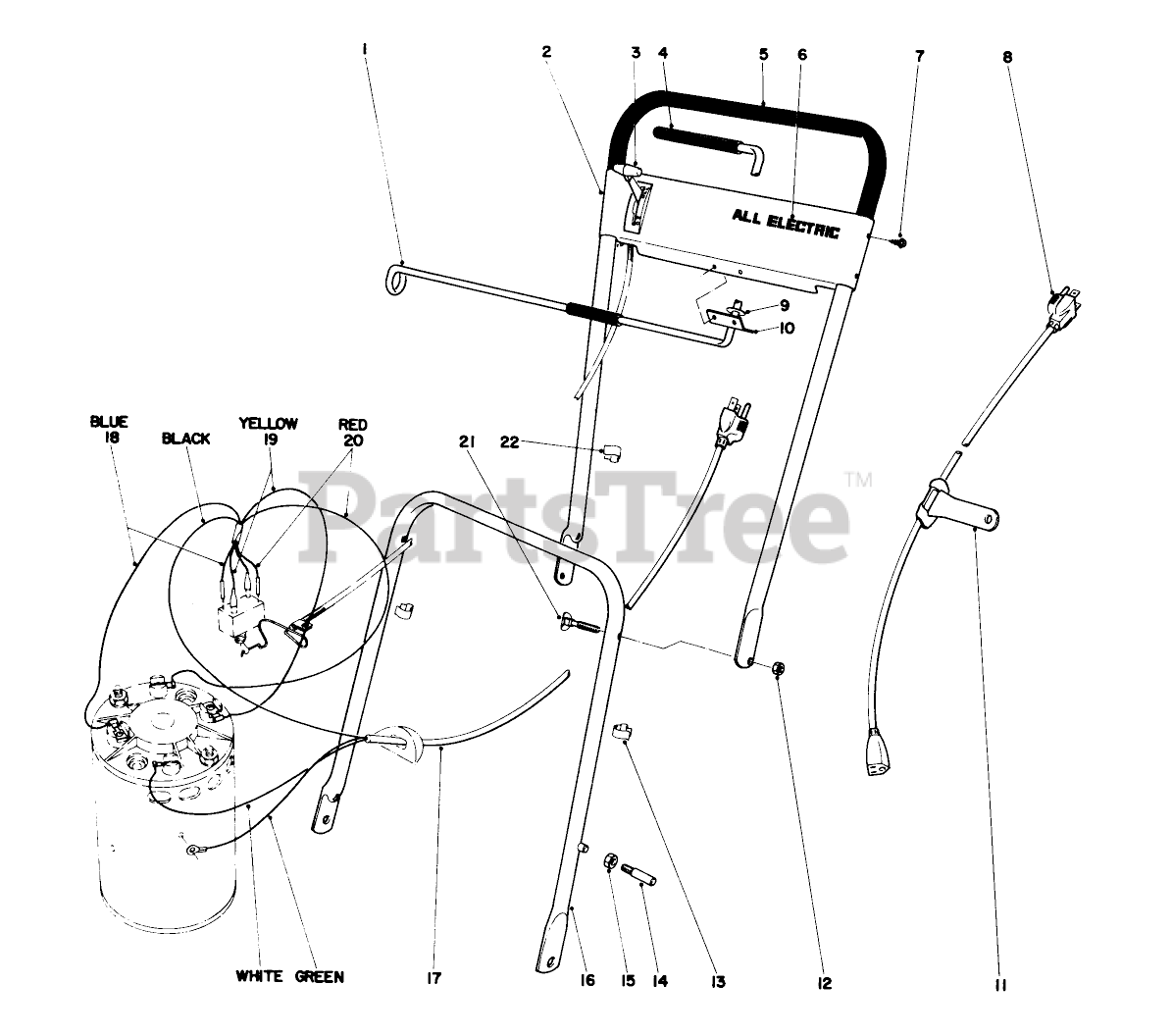

16050 - Toro Walk-Behind Mower, Electric (SN: 002000001 - 002999999) (1972) > Parts Diagrams (3) > HANDLE ASSEMBLY

  • Title
4-3949

1

Pivot Rod & Bracket Assembly (Incl. Ref. 9-10)

Part# 4-3949

OEM Warranty Repair Part for Toro

Currently unavailable

12-2700

2

Escutcheon Plate

Part# 12-2700

OEM Warranty Repair Part for Toro

Currently unavailable

54754

3

Switch Control

Part# 54754

OEM Warranty Repair Part for Toro

Currently unavailable

5-3741

4

Grip-Pivot Rod

Part# 5-3741

OEM Warranty Repair Part for Toro

Currently unavailable

12-2220

5

Upper Handle w/Grip

Part# 12-2220

OEM Warranty Repair Part for Toro

Currently unavailable

12-5460

6

Decal

Part# 12-5460

OEM Warranty Repair Part for Toro

Currently unavailable

32104-76

7

SCREW-HWHTF

Part# 32104-76

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.98

5-3760

8

Cord Assembly (Incl. Ref. 11)

Part# 5-3760

OEM Warranty Repair Part for Toro

Currently unavailable

3256-23

9

WASHER-PLAIN

Part# 3256-23

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.67

5-3754

10

Bracket-Escutcheon

Part# 5-3754

OEM Warranty Repair Part for Toro

Currently unavailable

5-3757

11

Cord Strain Relief

Part# 5-3757

OEM Warranty Repair Part for Toro

Currently unavailable

32146-5

12

Nut

Part# 32146-5 (Superseded to 32153-3)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.46

218404

13

Cord Clip

Part# 218404

OEM Warranty Repair Part for Toro

Not available

6-6940

14

Handle Pin

Part# 6-6940 (Superseded to 17-9380)

Note: Replacement Parts Only

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $9.05

32146-8

15

Nut

Part# 32146-8 (Superseded to 32153-4)

Note: Replacement Parts Only

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.99

10-9540

16

LWR HANDLE STAKED ASM

Part# 10-9540

OEM Warranty Repair Part for Toro

Not available

5-3743

17

Cord Assembly

Part# 5-3743

OEM Warranty Repair Part for Toro

Currently unavailable

5-3748

18

Lead Wire (Blue)

Part# 5-3748

OEM Warranty Repair Part for Toro

Currently unavailable

5-3736

19

Lead Wire (Yellow)

Part# 5-3736

OEM Warranty Repair Part for Toro

Currently unavailable

5-3746

20

Lead Wire (Red)

Part# 5-3746

OEM Warranty Repair Part for Toro

Currently unavailable

6-6320

21

1-1/4 LG HANDLE SCREW

Part# 6-6320

OEM Warranty Repair Part for Toro

Not available

218-75

22

CONTROL WIRE CLIP

Part# 218-75

OEM Warranty Repair Part for Toro

Not available

12-2090

Grass Bagging Kit

Part# 12-2090

Note: Not illustrated

OEM Warranty Repair Part for Toro

Currently unavailable
