16067 - Toro Whirlwind II Walk-Behind Mower (SN: 008000001 - 008999999) (1978) HANDLE ASSEMBLY MODELS 16067, 16155, 16287 Parts Diagram

Whirlwind II Walk-Behind Mower

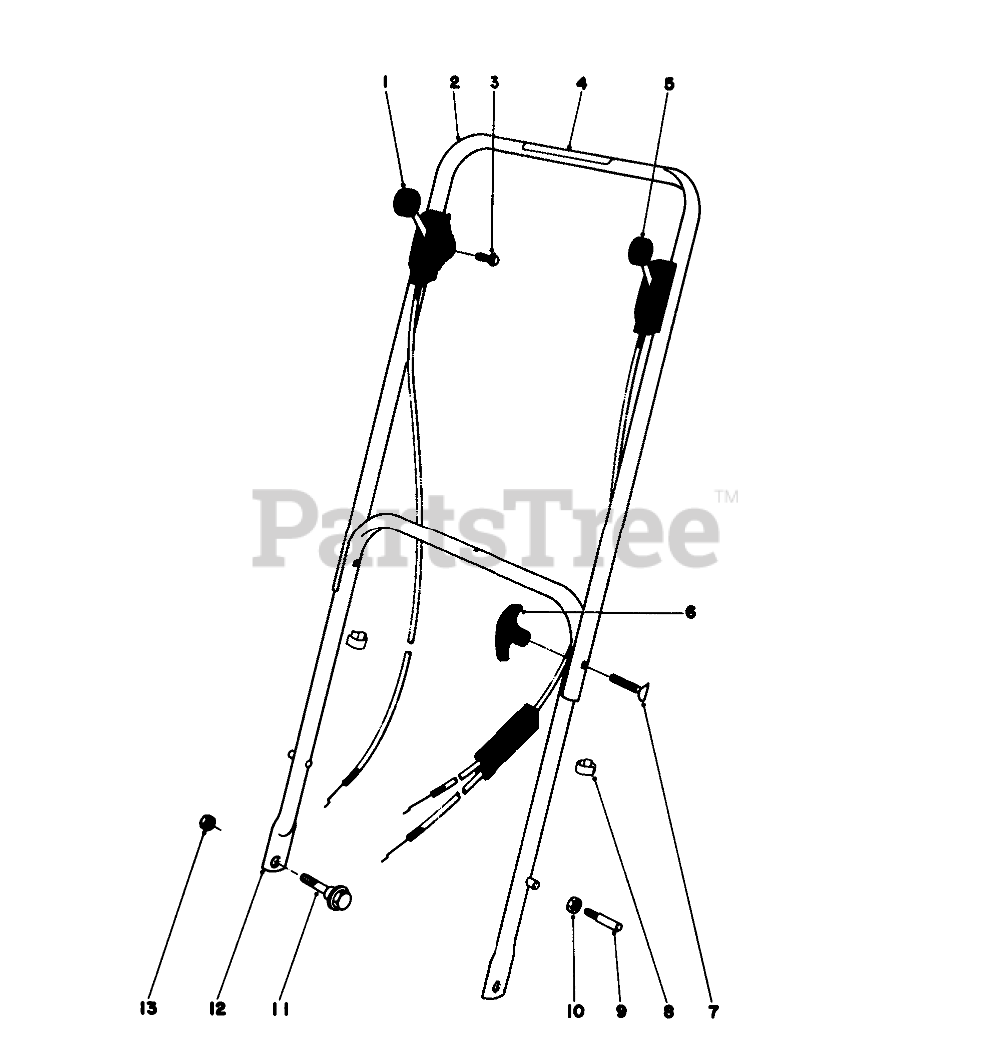

HANDLE ASSEMBLY MODELS 16067, 16155, 16287 Parts Diagram

  • Title

1

Toro 33-2531

Throttle Control
(Superseded to 46-6000)

$42.99

$

Usually ships in 3-6 days

0

2

Toro 27-7030

UPPER HANDLE

$

$

Not available

3

Toro 32144-22

SCREW

$0.99

$

Usually ships in 3-6 days

0

Toro 32144-22

SCREW

Note: Not illustrated

$0.99

$

Usually ships in 3-6 days

0

4

Toro 29-6290

Decal

$

$

Not available

5

Toro 33-2521

Traction Control
(Superseded to 46-6030)

$

$

Not available

6

Toro 23341

Handle Knob

$

$

Currently unavailable

7

Toro 6-6330

HANDLE SCREW

$

$

Not available

8

Toro 218465

Clip

$

$

Currently unavailable

Toro 218-465

BOWDEN CLIP

Note: Not illustrated

$

$

Not available

9

Toro 17-9380

HANDLE PIN

$

$

Not available

10

Toro 32146-8

Nut
(Superseded to 32153-4)

$0.99

$

Usually ships in 3-6 days

0

11

Toro 27-7210

SCREW-SHOULDER

$7.99

$

In Stock, Qty 5

0

12

Toro 27-7040

Lower Handle
(Superseded to 38-1290)

$

$

Not available

Toro 27-7050

Lower Handle
(Superseded to 38-1260)

$202.99

$

Usually ships in 3-6 days

0

13

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0
