16077 - Toro Walk-Behind Mower (SN: 001000001 - 001999999) (1981) Engine Assembly Model 16297 Parts Diagram

Walk-Behind Mower

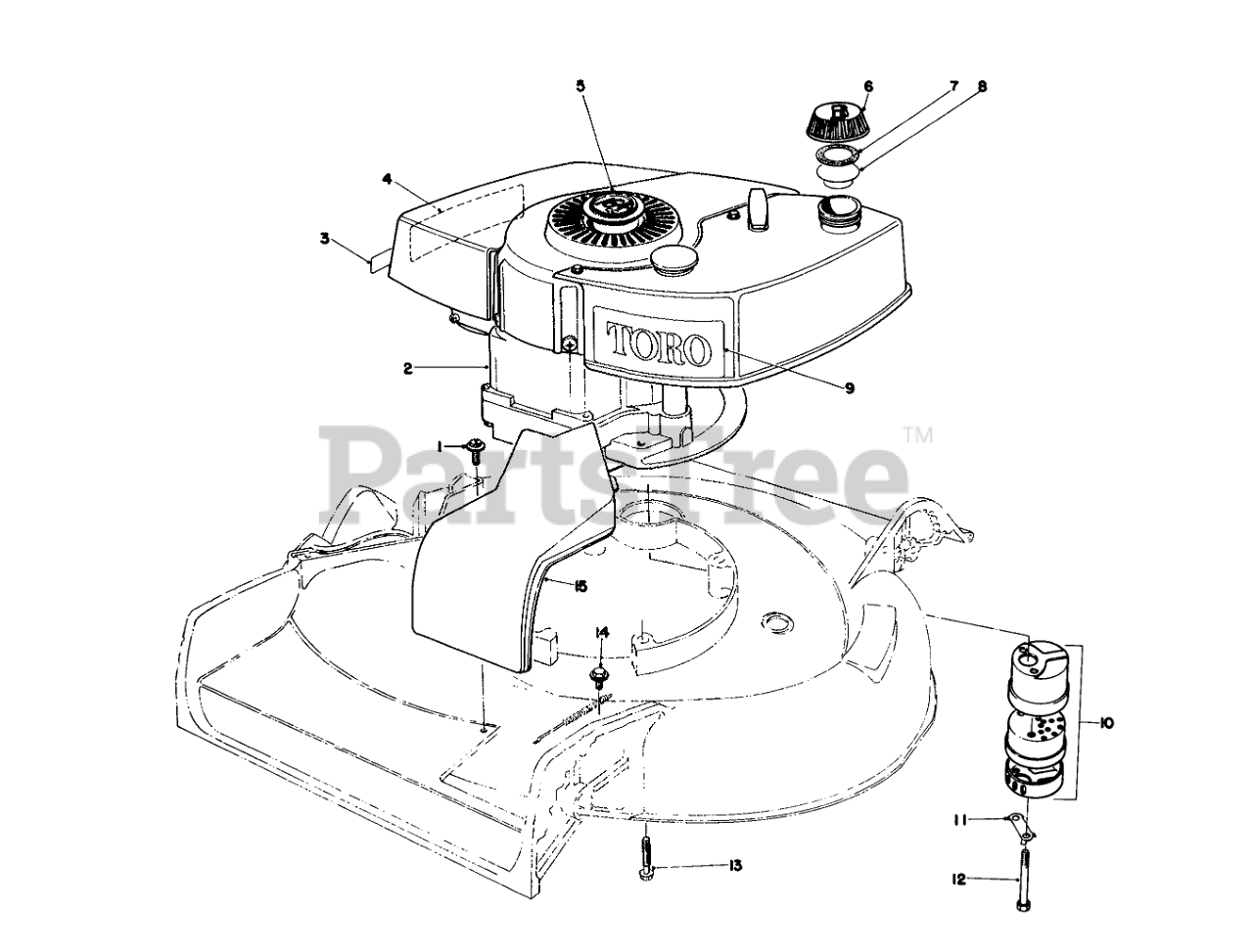

Engine Assembly Model 16297 Parts Diagram

  • Title

1

Toro 12-5450

SCREW

$10.99

$

Usually ships in 3-6 days

0

2

Toro 221-688

Engine

$

$

Currently unavailable

3

Toro 40-2960

DISCONTINUED

$

$

Not available

4

Toro 40-2950

DISCONTINUED

$

$

Not available

5

Toro 38-1481

DISCONTINUED

$

$

Not available

6

Toro 27-7872

See Supercession: 42-0682
(Superseded to 42-0682)

$

$

Not available

7

Toro 2210-144

GASKET

$

$

Not available

8

Toro 2210-143

DISCONTINUED

$

$

Not available

9

Toro 40-5460

DISCONTINUED

$

$

Not available

10

Toro 5-4796

Muffler (Incl. Ref. #11 12)

$

$

Currently unavailable

Toro 39-5930

DISCONTINUED

Note: Not illustrated

$

$

Not available

11

Toro 3-5094

CLIP - LOCKING

$12.99

$

Usually ships in 3-6 days

0

12

Toro 321-20

SCREW-HH

$7.99

$

Usually ships in 3-6 days

0

13

Toro 11-0580

3/8-16 X 2-3/4 CAPSCR

$

$

Not available

14

Toro 32144-11

SCREW-THD ROLL, HWH

$8.49

$

In Stock, only 2 left!

0

15

Toro 284731

Cover-Belt Drive

$

$

Currently unavailable
