16077 - Toro Walk-Behind Mower (SN: 002000001 - 002999999) (1982) HOUSING ASSEMBLY MODEL 16297 Parts Diagram

Walk-Behind Mower

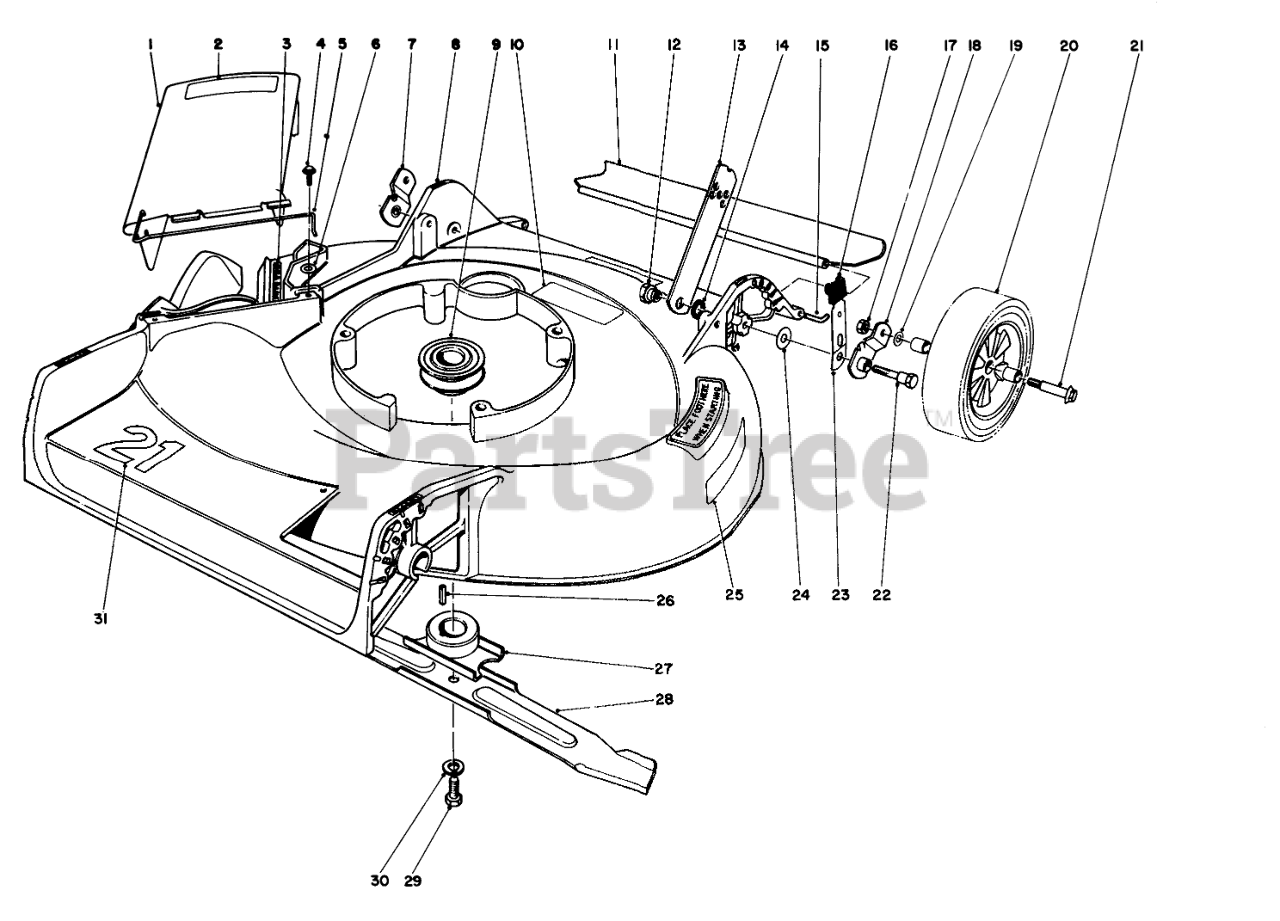

HOUSING ASSEMBLY MODEL 16297 Parts Diagram

  • Title

1

Toro 27-7814

Deflector Cover Assembly (Incl. Ref. #2 & 5)
(Superseded to 13-5909)

$110.99

$

Usually ships in 3-6 days

0

2

Toro 40-2780

Decal-Caution

$

$

Not available

3

Toro 40-2760

Decal-Danger

$

$

Not available

4

Toro 12-3270

SCREW

$3.49

$

In Stock, only 2 left!

0

5

Toro 20-2640

SPRING HINGE

$

$

Not available

6

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

7

Toro 20-2130

Pivot Arm
(Superseded to 98-1527)

$

$

Not available

8

Toro 8-7959

Housing (Incl. Ref. #3, 10 & 25)

$

$

Not available

9

Toro 21-5580

DRIVER PULLEY

$

$

Not available

10

Toro 40-3040

Decal-Warning
(Superseded to 47-7410)

$

$

Not available

11

Toro 224950

Rear Shield

$

$

Currently unavailable

12

Toro 274520

Pivot Nut

$

$

Currently unavailable

13

Toro 27-7080

HANDLE LATCH

$22.99

$

Usually ships in 3-6 days

0

14

Toro 274510

Spacer-Handle Latch

$

$

Currently unavailable

15

Toro 33-3201

SHIELD ROD

$

$

Not available

16

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 13

0

17

Toro 321464

Nut

$

$

Currently unavailable

18

Toro 20-2140

Pivot Arm
(Superseded to 98-1511)

$34.99

$

Usually ships in 3-6 days

0

19

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

20

Toro 27-6200

WHEEL TIRE ASM 8 IN

$

$

Not available

21

Toro 27-6230

BOLT-WHEEL

$8.49

$

In Stock, only 3 left!

0

22

Toro 28-8880

PIVOT SCREW

$9.49

$

In Stock, only 2 left!

0

23

Toro 25-8000

SPRING ARM ASM

$69.99

$

Usually ships in 3-6 days

0

24

Toro 54460

Washer

$

$

Currently unavailable

25

Toro 40-2730

Decal-Step

$

$

Not available

26

Toro 27-6300

KEY-SQUARE

$6.49

$

In Stock, only 1 left!

0

27

Toro 20-2750

Blade Retailer
(Superseded to 49-7890)

$64.99

$

Usually ships in 3-6 days

0

28

Toro 20-2720

Blade
(Superseded to 20-2720-03)

$36.99

$

In Stock, only 4 left!

0

29

Toro 3-5246

SPECIAL SCREW

$

$

Not available

30

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, Qty 5

0

31

Toro 36-1030

Decal 21"

$

$

Not available

Toro 11-0249

Loose Parts

Note: Not illustrated

$

$

Currently unavailable

Toro 25-9150

REPLACEMNT SERIAL PLT

Note: Not illustrated

$17.99

$

Usually ships in 3-6 days

0
