16113 - Toro Whirlwind II Walk-Behind Mower (SN: 007000001 - 007999999) (1977) HOUSING ASSEMBLY MODEL 16009 & 16113 Parts Diagram

Whirlwind II Walk-Behind Mower

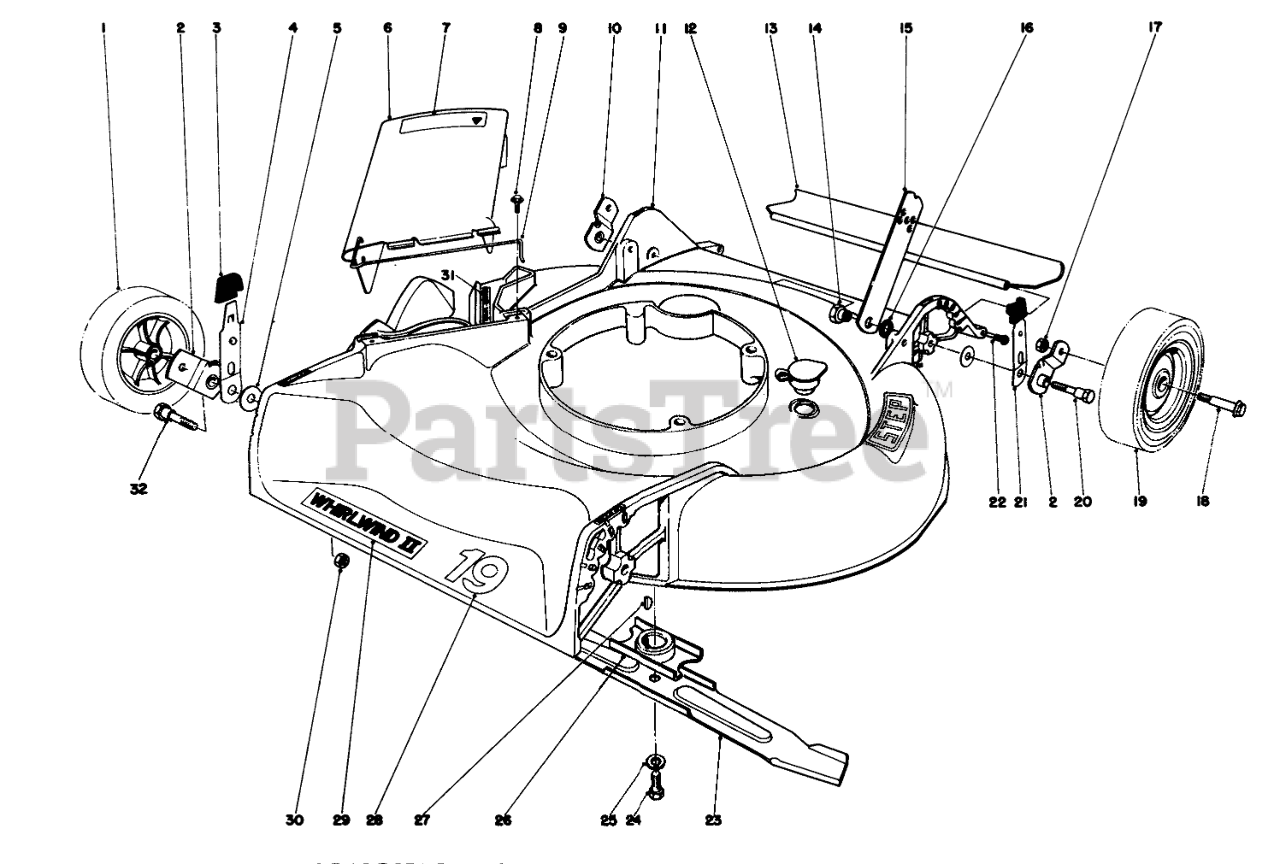

HOUSING ASSEMBLY MODEL 16009 & 16113 Parts Diagram

  • Title

1

Toro 174140

Wheel & Tire Assembly

$

$

Currently unavailable

Toro 174120

Wheel & Tire Assembly

Note: Not illustrated

$

$

Currently unavailable

2

Toro 20-2140

Pivot Arm
(Superseded to 98-1511)

$

$

Not available

3

Toro 25-7740

KNOB-ARM

$5.49

$

In Stock, Qty 13

0

4

Toro 25-8000

SPRING ARM ASM

$

$

Not available

5

Toro 54460

Washer

$

$

Currently unavailable

6

Toro 27-7810

Deflector Assembly (Incl. Ref. # 7 & 9)
(Superseded to 13-4049)

$

$

Not available

7

Toro 204330

Decal Caution

$

$

Currently unavailable

8

Toro 12-3270

SCREW

$3.99

$

In Stock, Qty 11

0

9

Toro 20-2640

SPRING HINGE

$

$

Not available

10

Toro 20-2130

Pivot Arm
(Superseded to 98-1527)

$

$

Not available

11

Toro 6-7389

Housing

$

$

Currently unavailable

Toro 6-7399

Housing

$

$

Not available

12

Toro 64500

Plug Washout

$

$

Currently unavailable

13

Toro 224960

Rear Shield

$

$

Currently unavailable

Toro 224950

Rear Shield

$

$

Currently unavailable

14

Toro 27-6520

HANDLE PIVOT NUT

$10.99

$

Usually ships in 3-6 days

0

15

Toro 27-7070

Handle Latch
(Superseded to 100-3296-03)

$

$

Not available

Toro 27-7080

HANDLE LATCH

$

$

Not available

16

Toro 27-4510

Spacer Handle Latch

$

$

Currently unavailable

17

Toro 32146-6

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, only 4 left!

0

18

Toro 3-2652

Bolt

$

$

Not available

19

Toro 174120

Wheel & Tire Assembly

$

$

Currently unavailable

20

Toro 28-8880

PIVOT SCREW

$10.99

$

In Stock, only 2 left!

0

21

Toro 27-7240

SPRING ARM ASM

$

$

Not available

Toro 25-8000

SPRING ARM ASM

$

$

Not available

22

Toro 8-6160

SAFTEY SHIELD SCREW

$

$

Not available

23

Toro 20-2730

Blade
(Superseded to 20-2730-03)

$

$

Not available

Toro 20-2720

Blade
(Superseded to 20-2720-03)

$43.99

$

In Stock, only 4 left!

0

24

Toro 3-5246

SPECIAL SCREW

$

$

Not available

25

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 2 left!

0

26

Toro 20-2750

Blade Retailer
(Superseded to 49-7890)

$

$

Not available

27

Toro 3257-32

KEY-WOODRUFF

$2.99

$

In Stock, Qty 15

0

28

Toro 28-4760

Decal-19"

$

$

Not available

Toro 28-4750

Decal-21"

Note: Not illustrated

$

$

Not available

29

Toro 27-6270

Decal Whirlwind

$

$

Not available

30

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.99

$

Usually ships in 3-6 days

0

31

Toro 22-7350

Decal

$

$

Not available

32

Toro 25-3440

PIVOT SCREW

$

$

Not available
