1613 G (1691893) - AGCO Lawn Tractor, 12.5hp Foot Controls Group (Gear) Parts Diagram

Lawn Tractor, 12.5hp

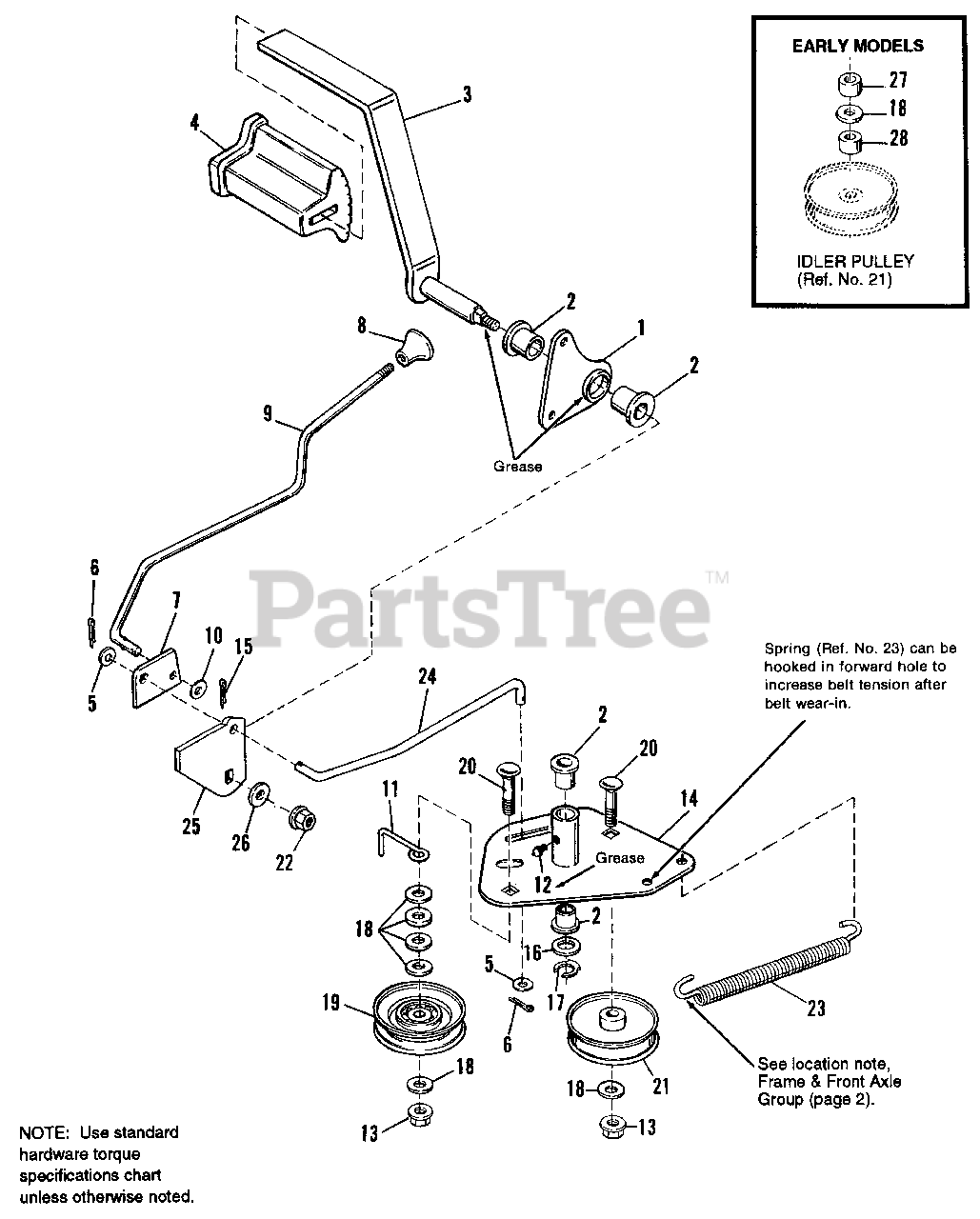

Foot Controls Group (Gear) Parts Diagram

  • Title

1

Simplicity 1704621SM

CAM, Lift

$5.99

$

Usually ships in 2-12 days

0

2

Simplicity 1663114SM

BUSHING, Plastic

$4.49

$

In Stock, Qty 16

0

3

Simplicity 1704295SM

BRAKE PEDAL ASSY.
(Superseded to 1704295ASM)

$217.99

$

Usually ships in 2-12 days

0

4

Simplicity 1718944SM

PAD, Foot Pedal

$73.99

$

In Stock, only 1 left!

0

5

Simplicity 1919326SM

WASHER, Plain, 11/32

$4.49

$

Usually ships in 2-12 days

0

6

Simplicity 1918447SM

COTTER PIN
(Superseded to 703312)

$4.49

$

In Stock, Qty 11

0

7

Simplicity 1704429SM

CAM, Parking Brake

$

$

Not available

8

Simplicity 1676374SM

KNOB, Plastic

$

$

Not available

9

Simplicity 1713480SM

ROD, Parking Brake

$77.99

$

In Stock, only 1 left!

0

10

Simplicity 1921319SM

WASHER, Plain, 9/32
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

11

Simplicity 1678924

BELT STOP

$

$

Not available

12

Simplicity 2821133SM

FITTING, Grease
(Superseded to 703907)

$5.49

$

In Stock, Qty 20+

0

13

Simplicity 1928352SM

NUT, Flange, Whizlock, 3/8-16
(Superseded to 5025128SM)

$3.49

$

In Stock, Qty 20+

0

14

Simplicity 1705442

ARM ASSY., Idler

$

$

Not available

15

Simplicity 1923360SM

COTTER PIN
(Superseded to 703892)

$3.49

$

In Stock, only 1 left!

0

16

Simplicity 1960020SM

WASHER, 5/8

$4.49

$

In Stock, Qty 20+

0

17

Simplicity 1704420SM

KLIPRING, 5/8

$4.99

$

In Stock, Qty 20+

0

18

Simplicity 1924940SM

WASHER, Plain, 13/32 (Qty. 8 on early model idler pulley)
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

19

Simplicity 2174561SM

PULLEY "V"

$47.99

$

In Stock, Qty 5

0

20

Simplicity 1931353SM

CARRIAGE BOLT, 3/8-16 x 1-3/4
(Superseded to 703858)

$4.99

$

In Stock, only 1 left!

0

21

Simplicity 1721133SM

PULLEY, Idler

$29.99

$

In Stock, Qty 14

0

22

Simplicity 1919439SM

NUT, Hex ESNA, 3/8-16
(Superseded to 703117)

$3.99

$

In Stock, Qty 20+

0

23

Simplicity 1666759SM

SPRING, Drive

$

$

Not available

24

Simplicity 1705451

ROD, Clutch, 5/16 Dia.

$

$

Not available

25

Simplicity 1709951SM

ARM, Foot Pedal

$10.99

$

Usually ships in 2-12 days

0

26

Simplicity 1922755SM

WASHER
(Superseded to 704128)

$5.49

$

In Stock, Qty 20+

0

27

Simplicity 2157081SM

SPACER (Early models only)

$9.49

$

In Stock, Qty 9

0

28

Simplicity 1666294SM

SPACER (Early models only)

$5.49

$

In Stock, Qty 20+

0
