1613 G (1691893) - AGCO Lawn Tractor, 12.5hp Hand Controls Group (Gear) Parts Diagram

Lawn Tractor, 12.5hp

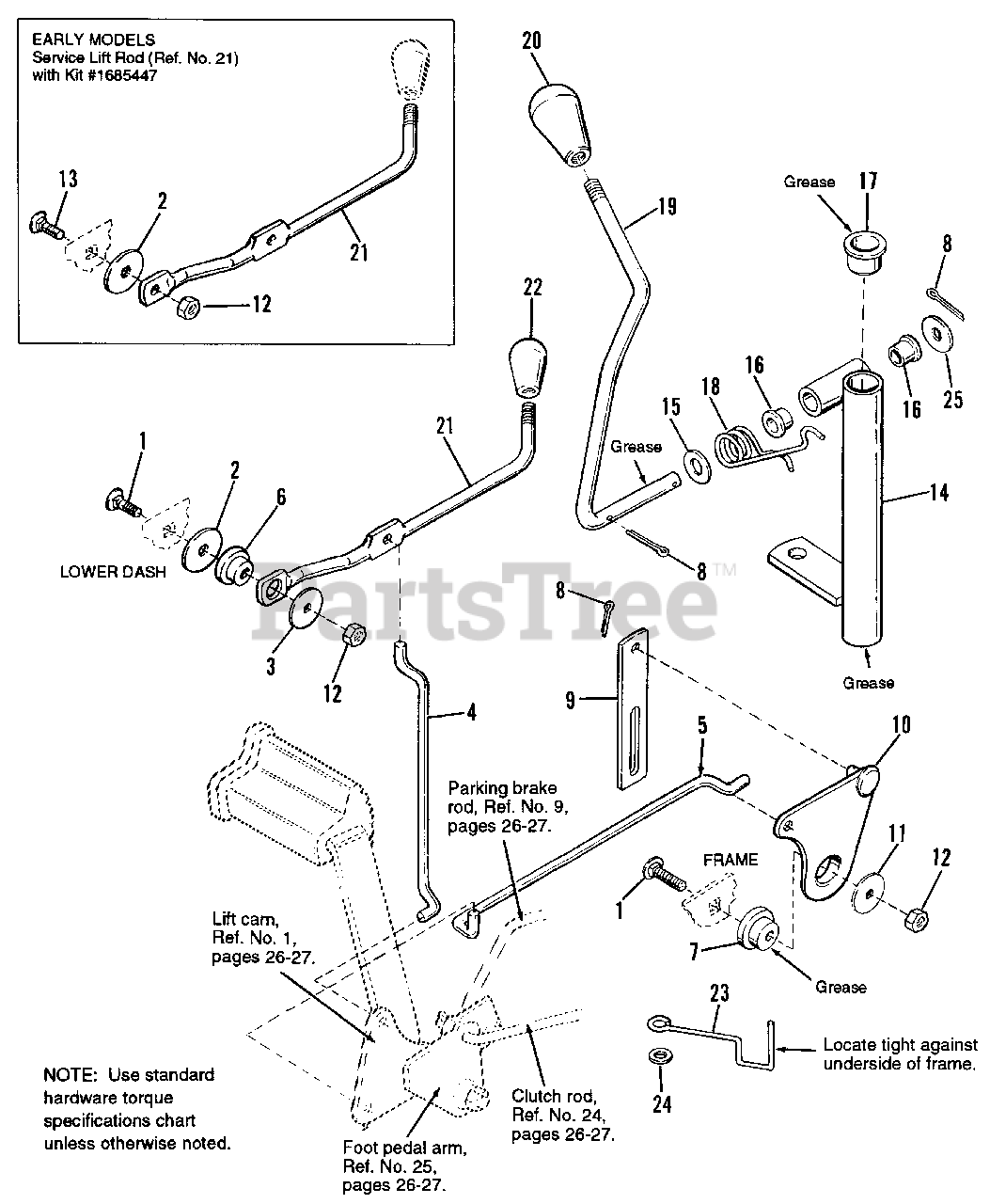

Hand Controls Group (Gear) Parts Diagram

  • Title

1

Simplicity 1931337SM

CARRIAGE BOLT, 5/16-18 x 1-1/2 (Later models only)
(Superseded to 703296)

$4.49

$

In Stock, Qty 10

0

2

Simplicity 1924356SM

WASHER, Plain, 13/32 x 1-1/2 x 1/8
(Superseded to 703591)

$5.49

$

In Stock, Qty 8

0

3

Simplicity 1919381SM

WASHER
(Superseded to 703298)

$4.49

$

In Stock, Qty 13

0

4

Simplicity 1704623SM

LINK, Lift Upper

$16.99

$

Usually ships in 2-12 days

0

5

Simplicity 1704624SM

LINK, Lift

$

$

Not available

6

Simplicity 1705590SM

SPACER, Special

$16.99

$

Usually ships in 2-12 days

0

7

Simplicity 1704629SM

SPACER, Special
(Superseded to 1732540SM)

$10.99

$

In Stock, only 1 left!

0

8

Simplicity 1918447SM

COTTER PIN
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

9

Simplicity 1704756A

LINK, Lift, Upper Transport
(Superseded to 1704756ASM)

$19.99

$

In Stock, only 4 left!

0

10

Simplicity 1704825SM

CAM, Lift Assy.

$80.99

$

Usually ships in 2-12 days

0

11

Simplicity 1960044SM

WASHER, Plain, 21/64 x 1-1/4

$4.49

$

In Stock, Qty 16

0

12

Simplicity 1919438SM

NUT, Hex ESNA Lock, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 8

0

13

Simplicity 1931335SM

CARRIAGE BOLT, 5/16-18 x 1 (Early models only)
(Superseded to 703800)

$3.99

$

In Stock, Qty 16

0

14

Simplicity 1705487

SHIFT LEVER ASSY.

$

$

Not available

15

Simplicity 1924361SM

WASHER, Plain
(Superseded to 703451)

$4.49

$

In Stock, only 2 left!

0

16

Simplicity 1704428SM

BUSHING, Plastic, 1/2 Dia.

$3.99

$

Usually ships in 2-12 days

0

17

Simplicity 2176440SM

BUSHING, Nylon, 3/4 Dia.

$4.99

$

In Stock, Qty 20+

0

18

Simplicity 1709236SM

SPRING, Torsion

$57.99

$

Usually ships in 2-12 days

0

19

Simplicity 1685700SM

LEVER, Shift

$36.99

$

Usually ships in 2-12 days

0

20

Simplicity 1676743SM

KNOB, Plastic

$19.99

$

Usually ships in 2-12 days

0

21

Simplicity 1685447SM

ROD, Lift Handle Kit (Early models)

$27.99

$

Usually ships in 2-12 days

0

21

Simplicity 1686730SM

ROD, Lift Handle (Later Models)

$17.99

$

Usually ships in 2-12 days

0

22

Simplicity 2172038SM

KNOB
(Superseded to 1732470SM)

$19.99

$

In Stock, only 1 left!

0

23

Simplicity 1705638

BELT STOP

$

$

Not available

24

Simplicity 1922755SM

WASHER, Plain
(Superseded to 704128)

$4.99

$

In Stock, Qty 11

0

25

Simplicity 1960206SM

WASHER, 1/2

$3.99

$

In Stock, only 1 left!

0
