1613 G (1691893) - AGCO Lawn Tractor, 12.5hp Wheels & Tires Group (Gear) Parts Diagram

Lawn Tractor, 12.5hp

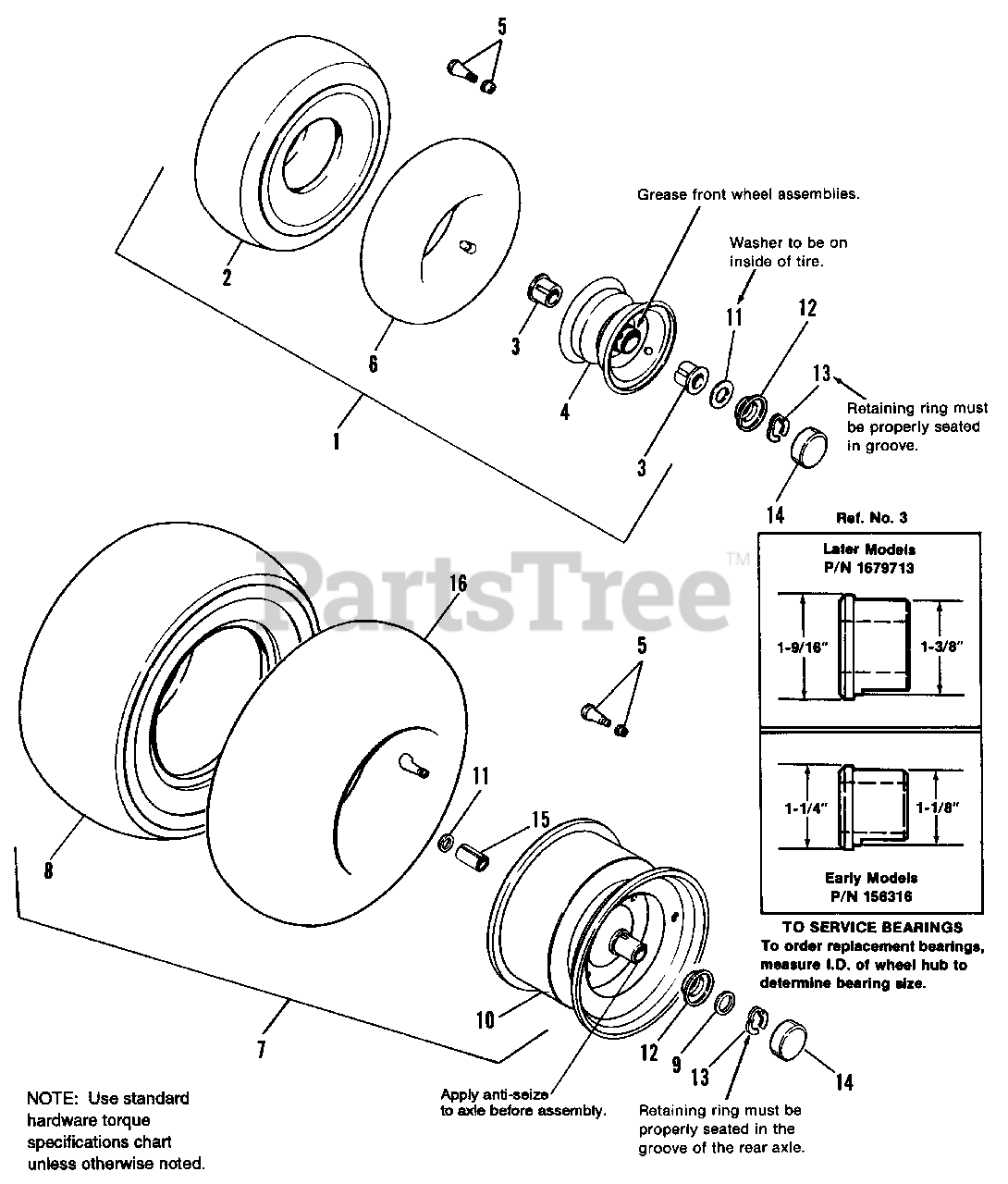

Wheels & Tires Group (Gear) Parts Diagram

  • Title

1

Simplicity 1709856SM

WHEEL & TIRE ASSY. (15 x 6.00-6), Beige (Incl. Ref. Nos. 2, 3, 4, 5, & 6)

$137.99

$

Usually ships in 2-12 days

0

1

Simplicity 1709856SM

WHEEL & TIRE ASSY. (15 x 6.00-6), Silver (Incl. Ref. Nos. 2, 3, 4, 5, & 6)

$137.99

$

Usually ships in 2-12 days

0

2

Simplicity 1713166SM

TIRE (15 x 6.00-6)

$113.99

$

Usually ships in 2-12 days

0

3

Simplicity 1713167SM

BEARING, 1-9/16" Outside O.D, 1-3/8"BEARING, 1-9/16l Wheel Assembly. See inset illustration on page 42.)
(Superseded to 1752171YP)

$11.99

$

In Stock, Qty 20+

0

3

Simplicity 2156316SM

BEARING, 1-1/4" Outside O.D, 1-1/8"BEARING, 1-1/4 Wheel Assembly. See inset illustration on page 42.)

$11.99

$

In Stock, Qty 20+

0

4

Simplicity 1715032

WHEEL ASSY. (Incl. Ref. No. 3), Beige
(Superseded to 1726301SM)

$82.99

$

In Stock, only 1 left!

0

4

Simplicity 1715032

WHEEL ASSY., Silver
(Superseded to 1726301SM)

$82.99

$

In Stock, only 1 left!

0

5

Simplicity 2172353SM

VALVE STEM & CAP
(Superseded to 024373MA)

$

$

Not available

6

Simplicity 1664090SM

TUBE (4.10/3.50-6) Service Only.

$26.99

$

In Stock, only 4 left!

0

7

Simplicity 1673244

WHEEL & TIRE ASSY. (18 x 8.50-8), Beige (Incl. Ref. Nos. 5, 8 & 10)

$

$

Not available

7

Simplicity 1677545

WHEEL & TIRE ASSY. (18 x 8.50-8), Silver (Incl. Ref. Nos. 5, 8 & 10)

$

$

Not available

8

Simplicity 1713170SM

TIRE (18 x 8.50-8)

$

$

Not available

9

Simplicity 1960114SM

WASHER (Rear Axle)
(Superseded to 703151)

$3.49

$

In Stock, Qty 14

0

10

Simplicity 1716132SM

WHEEL ASSY., Beige

$

$

Not available

10

Simplicity 1716132SM

WHEEL ASSY., Silver

$

$

Not available

11

Simplicity 1960160SM

WASHER

$4.99

$

In Stock, Qty 20+

0

12

Simplicity 1701435SM

RETAINER, Hubcap

$13.99

$

Usually ships in 2-12 days

0

13

Simplicity 1611710SM

KLIP RING

$4.49

$

In Stock, Qty 16

0

14

Simplicity 1676519SM

HUBCAP

$8.49

$

In Stock, only 3 left!

0

15

Simplicity 1667191SM

SPACER, Axle

$5.49

$

Usually ships in 2-12 days

0

16

Simplicity 2164247SM

TUBE (18 x 8.5-8)

$40.99

$

In Stock, only 1 left!

0
