1613 H (1692076) - AGCO Lawn Tractor, 12.5hp Transmission Group - Hydrostatic 1 Parts Diagram

Lawn Tractor, 12.5hp

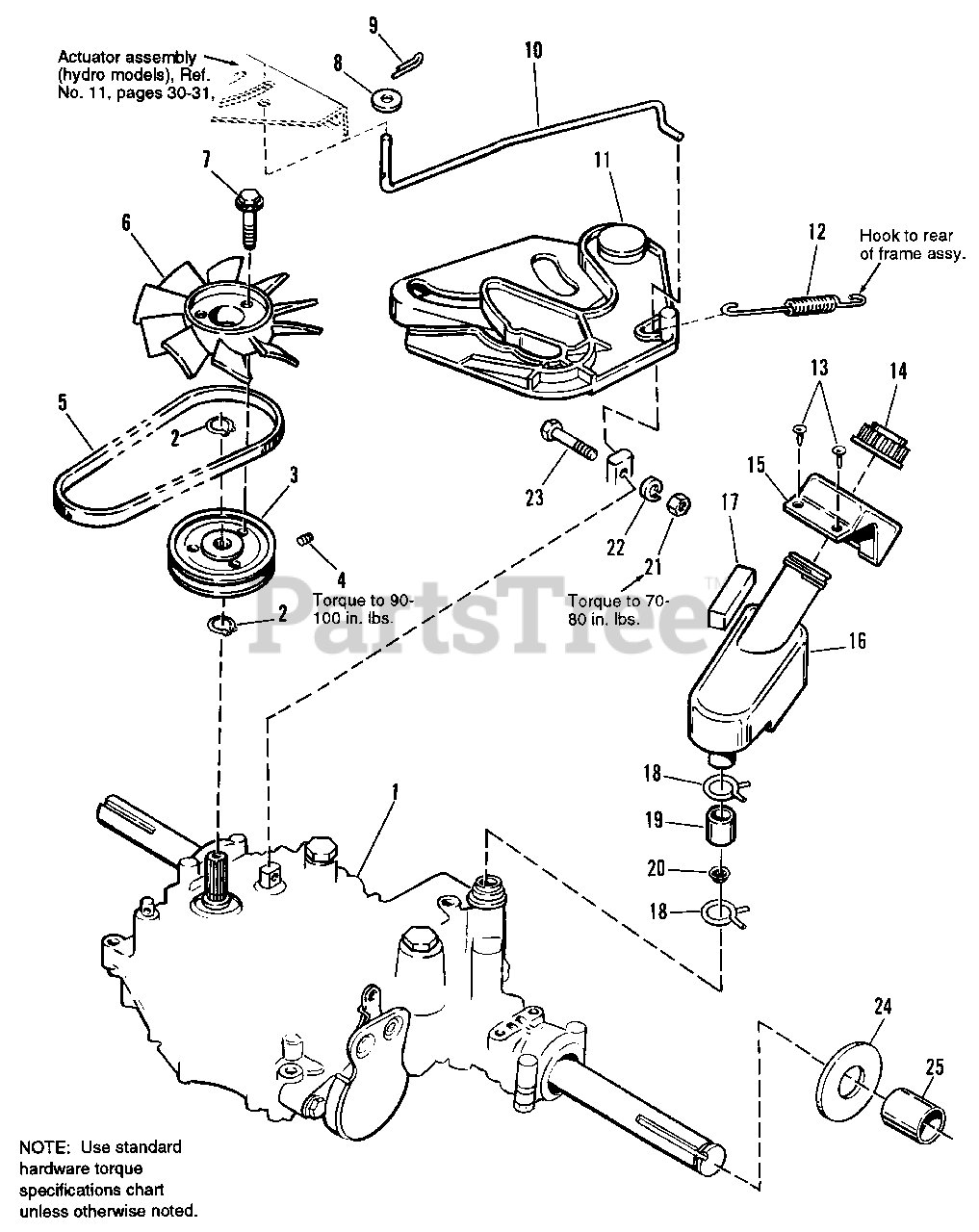

Transmission Group - Hydrostatic 1 Parts Diagram

  • Title

1

Simplicity 1707935

TRANSAXLE, Tuff Torque

$

$

Not available

2

Simplicity 1960328SM

SNAP RING

$5.49

$

Usually ships in 2-12 days

0

3

Simplicity 1707932SM

PULLEY, Driven

$70.99

$

In Stock, only 1 left!

0

4

Simplicity 1708269SM

SETSCREW, 5/16-18 x 5/16

$8.49

$

Usually ships in 2-12 days

0

5

Simplicity 2108508

BELT, Drive
(Superseded to 1713515SM)

$34.99

$

In Stock, Qty 14

0

6

Simplicity 1707933SM

FAN

$11.99

$

In Stock, only 4 left!

0

7

Simplicity 1933958SM

SCREW, Taptite, 1/4-20 x 1-1/8

$4.49

$

In Stock, only 2 left!

0

8

Simplicity 1919326SM

WASHER, 11/32 x 3/4 x 1/16

$4.49

$

In Stock, Qty 18

0

9

Simplicity 1918448SM

COTTER PIN, 15/16 x 1

$4.49

$

In Stock, only 1 left!

0

10

Simplicity 1707768

ROD, Return-to-Neutral

$

$

Not available

11

Simplicity 1708357SM

CAM ASSY.

$

$

Not available

12

Simplicity 1707471SM

SPRING

$9.99

$

Usually ships in 2-12 days

0

13

Simplicity 1704351SM

FASTENER, Panel

$4.99

$

In Stock, only 4 left!

0

14

Simplicity 1676467SM

CAP, Filler
(Superseded to 7012155YP)

$9.49

$

In Stock, only 1 left!

0

15

Simplicity 1707965SM

BEZEL

$

$

Not available

16

Simplicity 1707964

TANK, Expansion Chamber

$

$

Not available

17

Simplicity 2173335

PAD

$

$

Not available

18

Simplicity 1708721SM

CLAMP, Hose

$7.99

$

Usually ships in 2-12 days

0

19

Simplicity 1708052SM

HOSE

$11.99

$

Usually ships in 2-12 days

0

20

Simplicity 1708047SM

SCREEN, Filter

$

$

Not available

21

Simplicity 1960446

NUT, Hex, 6 mm

$

$

Not available

22

Simplicity 1916964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, only 1 left!

0

23

Simplicity 960464

SCREW, Hex, 6 mm-1 x 55 mm

$

$

Not available

24

Simplicity 2860200SM

WASHER, 1" I.D., 2-1/4" O.D.

$5.49

$

Usually ships in 2-12 days

0

25

Simplicity 1708948SM

SPACER, 1-1/2" Long

$6.99

$

Usually ships in 2-12 days

0
