1615 G (1692289) - AGCO Lawn Tractor, 15hp Transmission Group - Gear 1 - Peerless Model 801-059 Parts Diagram

Lawn Tractor, 15hp

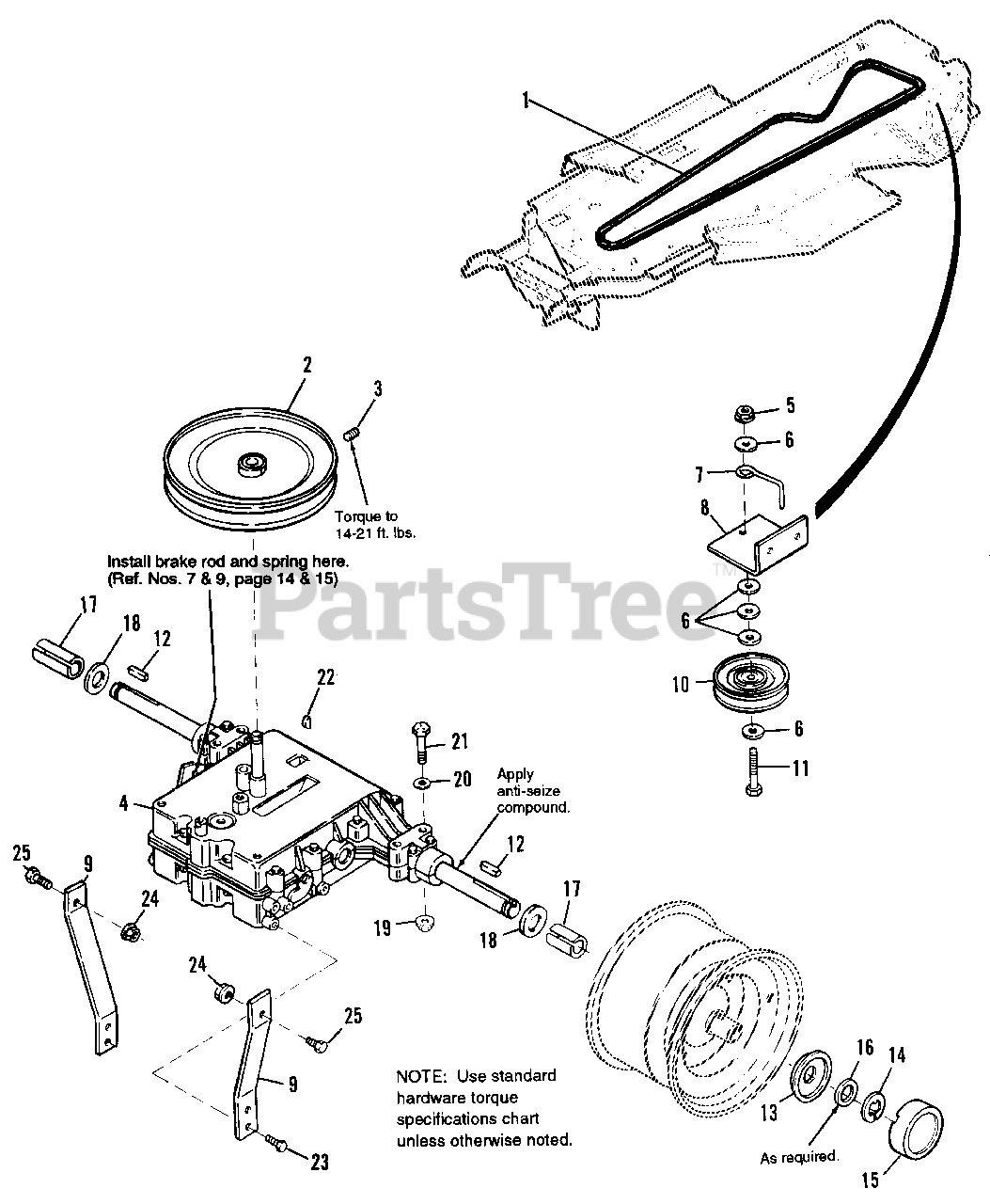

Transmission Group - Gear 1 - Peerless Model 801-059 Parts Diagram

  • Title

1

Simplicity 1657044SM

"V" BELT

$51.99

$

In Stock, Qty 11

0

2

Simplicity 1705482SM

PULLEY ASSY., Driven

$62.99

$

Usually ships in 2-12 days

0

3

Simplicity 1928721SM

SETSCREW, 5/16-18 x 1/2

$4.99

$

In Stock, Qty 12

0

4

TRANSMISSION, 5-Speed

$

$

Not available

5

Simplicity 1928352SM

NUT, Flange Whizlock, 3/8-16
(Superseded to 703793)

$4.49

$

In Stock, Qty 9

0

6

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

7

Simplicity 1678924

BELT STOP

$

$

Not available

8

Simplicity 1709864

BRACKET, Pulley

$

$

Not available

9

Simplicity 1705462

SUPPORT, Transmission

$

$

Not available

10

Simplicity 2174561SM

PULLEY, "V"

$53.99

$

In Stock, only 4 left!

0

11

Simplicity 1921971SM

CAPSCREW, Hex, 3/8-16 x 1-3/4
(Superseded to 704289)

$4.99

$

In Stock, Qty 13

0

12

Simplicity 1729279SM

KEY, 3/16 Sq. x 1-1/2
(Superseded to 703889)

$4.49

$

In Stock, Qty 5

0

13

Simplicity 1701435SM

RETAINER, Hubcap

$13.99

$

Usually ships in 2-12 days

0

14

Simplicity 2827794SM

"E" RING

$3.49

$

In Stock, Qty 20+

0

15

Simplicity 1676519SM

HUB CAP

$8.49

$

In Stock, only 2 left!

0

16

Simplicity 1960114SM

WASHER, Rear Axle (Use as required)
(Superseded to 703151)

$3.49

$

In Stock, Qty 16

0

17

Simplicity 1667191SM

SPACER, Rear Axle

$5.49

$

Usually ships in 2-12 days

0

18

Simplicity 1960160SM

WASHER

$4.99

$

In Stock, Qty 20+

0

19

Simplicity 1935048SM

NUT, Flange Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

20

Simplicity 1919326SM

WASHER, Plain, 5/16

$4.49

$

In Stock, Qty 17

0

21

Simplicity 1921719SM

CAPSCREW, Hex Hd., 5/16-18 x 2-1/2
(Superseded to 703868)

$4.99

$

In Stock, only 4 left!

0

22

Simplicity 2805123SM

KEY
(Superseded to 7010211YP)

$3.49

$

In Stock, only 2 left!

0

23

Simplicity 1930601SM

SCREW, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, Qty 18

0

24

Simplicity 1927557SM

NUT, Hex, Flange, 5/16-18

$4.99

$

In Stock, Qty 10

0

25

Simplicity 1930591SM

SCREW, Whiz, 5/16-18 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 15

0

26

Simplicity 1930601SM

SCREW, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, Qty 18

0
