16165 C - Toro Walk-Behind Mower (SN: 006000001 - 006999999) (1986) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

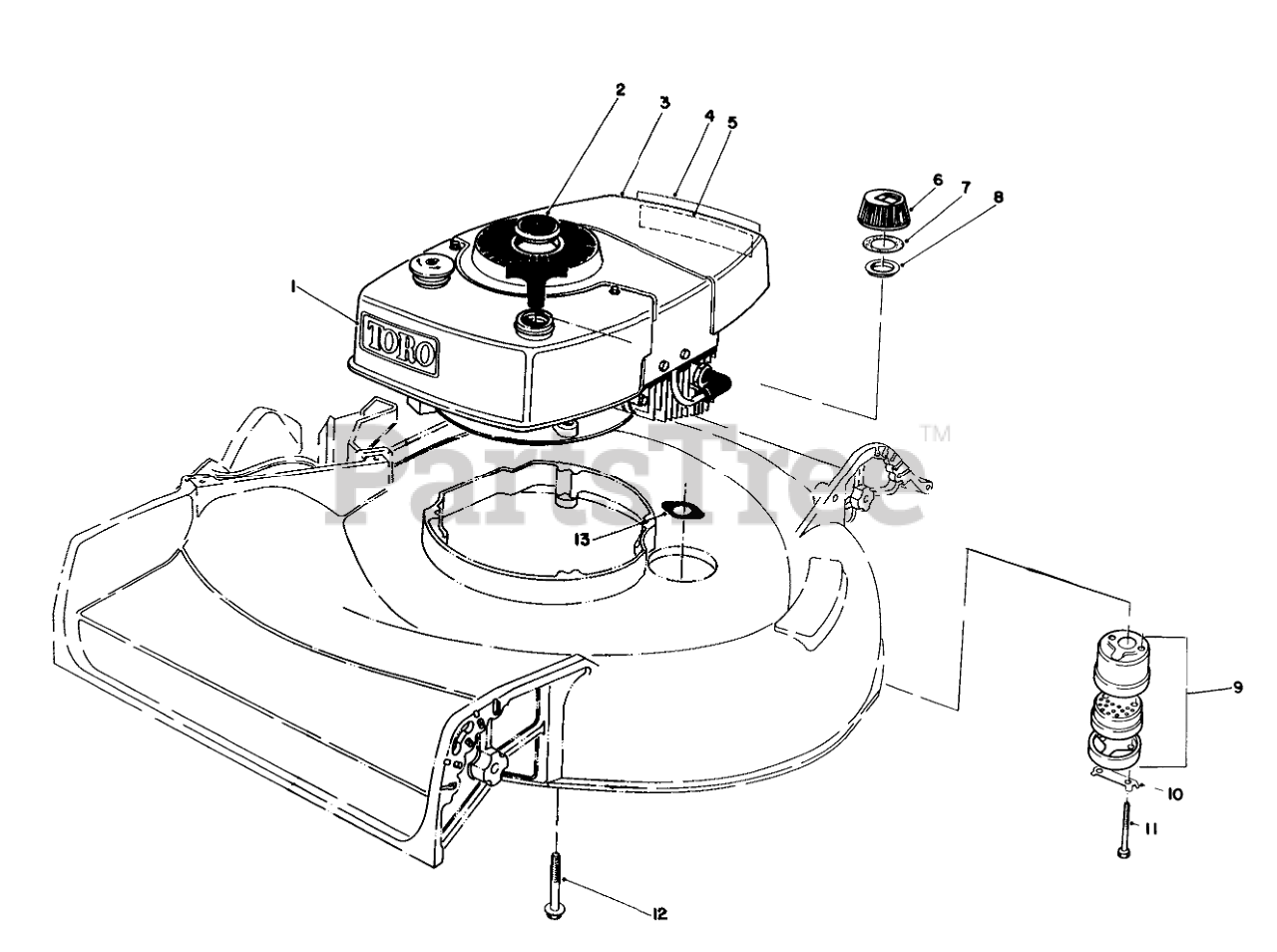

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 44-0510

Decal Tow
(Superseded to 70-2200)

$6.49

$

Usually ships in 3-6 days

0

2

Toro 38-1481

Plug Button

$

$

Not available

3

Toro 46-8362

Engine

$

$

Currently unavailable

4

Toro 46-9300

Decal-Primer

$

$

Not available

5

Toro 40-2950

Decal Maintenance

$

$

Not available

6

Toro 42-0682

Fuel Cap Assembly (Incl. Ref. #7 & 8)

$

$

Not available

7

Toro 2210-144

GASKET

$9.99

$

Usually ships in 3-6 days

0

8

Toro 2210-143

GAS CAP BAFFLE

$

$

Not available

9

Toro 5-4769

Muffler Assembly (Incl. Ref. #10 & 11)

$54.99

$

Usually ships in 3-6 days

0

10

Toro 3-5094

CLIP - LOCKING

$10.99

$

Usually ships in 3-6 days

0

11

Toro 321-20

SCREW-HH

$7.49

$

Usually ships in 3-6 days

0

12

Toro 11-0580

3/8-16 X 2-3/4 CAPSCR

$16.99

$

Usually ships in 3-6 days

0

13

Toro 11-9580

MUFFLER GASKET

$

$

Not available

Toro 39-5930

Spark Arrestor Muffler (Optional)(Incl. Ref. #10 & 11)

Note: Not illustrated

$

$

Not available
