16165 - Toro Walk-Behind Mower (SN: 003000001 - 003999999) (1983) Housing Assembly Parts Diagram

Walk-Behind Mower

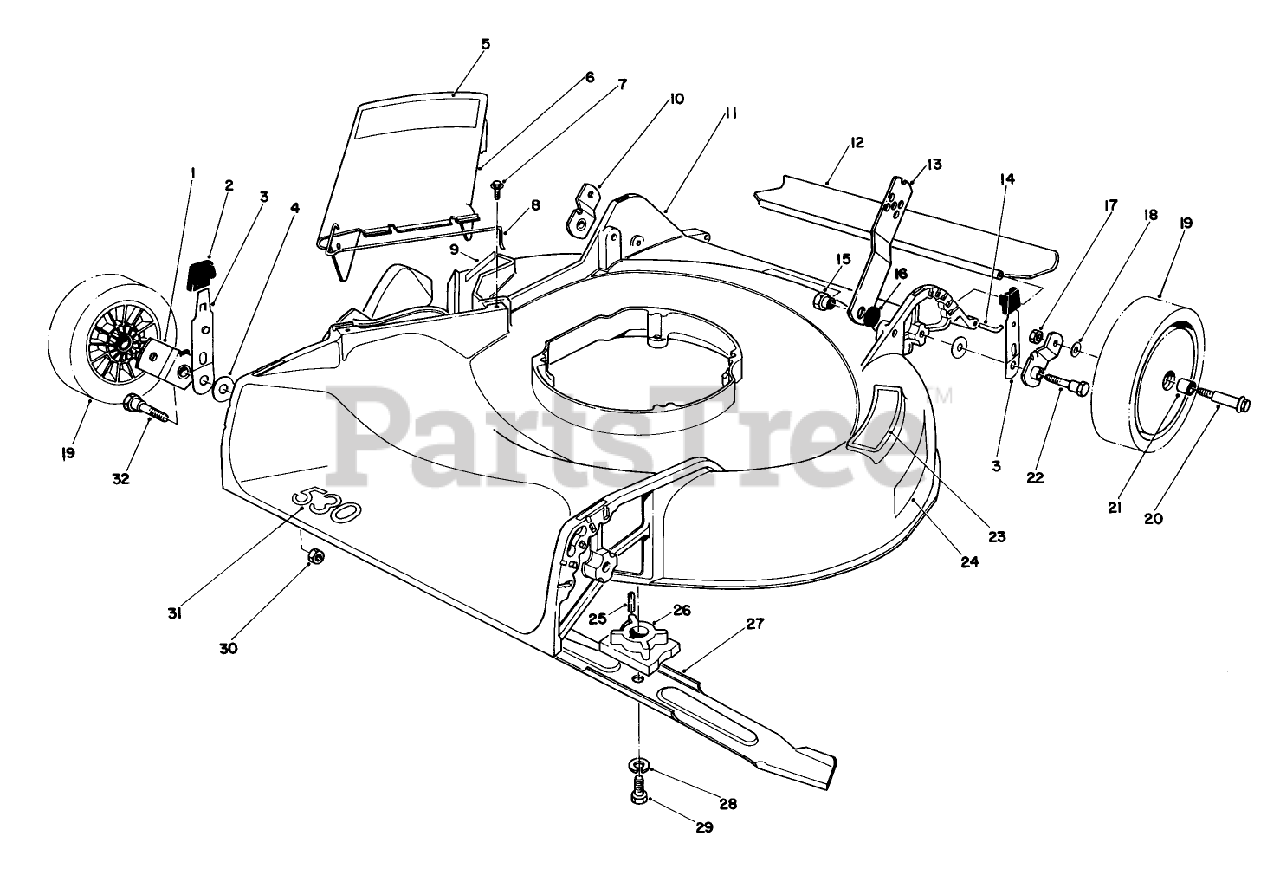

Housing Assembly Parts Diagram

  • Title

1

Toro 20-2140

See Supercession: 98-1511
(Superseded to 98-1511)

$

$

Not available

2

Toro 25-7740

KNOB-ARM

$5.49

$

In Stock, Qty 12

0

3

Toro 25-8000

SPRING ARM ASM

$

$

Not available

4

Toro 5-4460

WASHER-PIVOT

$8.49

$

In Stock, Qty 6

0

5

Toro 46-9280

DISCONTINUED
(Superseded to 47-7410)

$

$

Not available

6

Toro 27-7815

See Supercession: 13-5909
(Superseded to 13-5909)

$140.99

$

Usually ships in 3-6 days

0

7

Toro 46-6811

SCREW-HWH

$3.99

$

In Stock, only 3 left!

0

8

Toro 20-2640

DISCONTINUED

$

$

Not available

9

Toro 40-2760

DISCONTINUED

$

$

Not available

10

Toro 20-2130

See Supercession: 98-1527
(Superseded to 98-1527)

$

$

Not available

11

Toro 11-4589

DISCONTINUED

$

$

Not available

12

Toro 22-4950

DISCONTINUED

$

$

Not available

13

Toro 27-7070

See Supercession: 100-3296-03
(Superseded to 100-3296-03)

$

$

Not available

14

Toro 33-3201

SHIELD ROD

$

$

Not available

15

Toro 27-6520

HANDLE PIVOT NUT

$10.99

$

Usually ships in 3-6 days

0

16

Toro 27-6510

HANDLE LATCH SPACER

$

$

Not available

17

Toro 32146-6

See Supercession: 3296-6
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 10

0

18

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 10

0

19

Toro 44-0561

DISCONTINUED

$

$

Not available

20

Toro 27-6230

BOLT-WHEEL

$8.99

$

In Stock, only 2 left!

0

21

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 20+

0

22

Toro 28-8880

PIVOT SCREW

$10.99

$

In Stock, only 2 left!

0

23

Toro 46-7370

STEP PAD DECAL

$28.99

$

Usually ships in 3-6 days

0

24

Toro 40-2730

DISCONTINUED

$

$

Not available

25

Toro 27-8590

KEY-SQUARE

$6.99

$

Usually ships in 3-6 days

0

26

Toro 46-4870

See Supercession: 49-7890
(Superseded to 49-7890)

$

$

Not available

27

Toro 20-2720

See Supercession: 20-2720-03
(Superseded to 20-2720-03)

$43.99

$

In Stock, only 4 left!

0

28

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 2 left!

0

29

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 12

0

30

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

31

Toro 446-8310

Decal-530

$

$

Currently unavailable

32

Toro 25-3440

PIVOT SCREW

$

$

Not available

Toro 11-4009

Loose Parts

Note: Not illustrated

$

$

Currently unavailable
