1620 (137-270-100) - Cub Cadet Garden Tractor Steering Parts Diagram

Garden Tractor

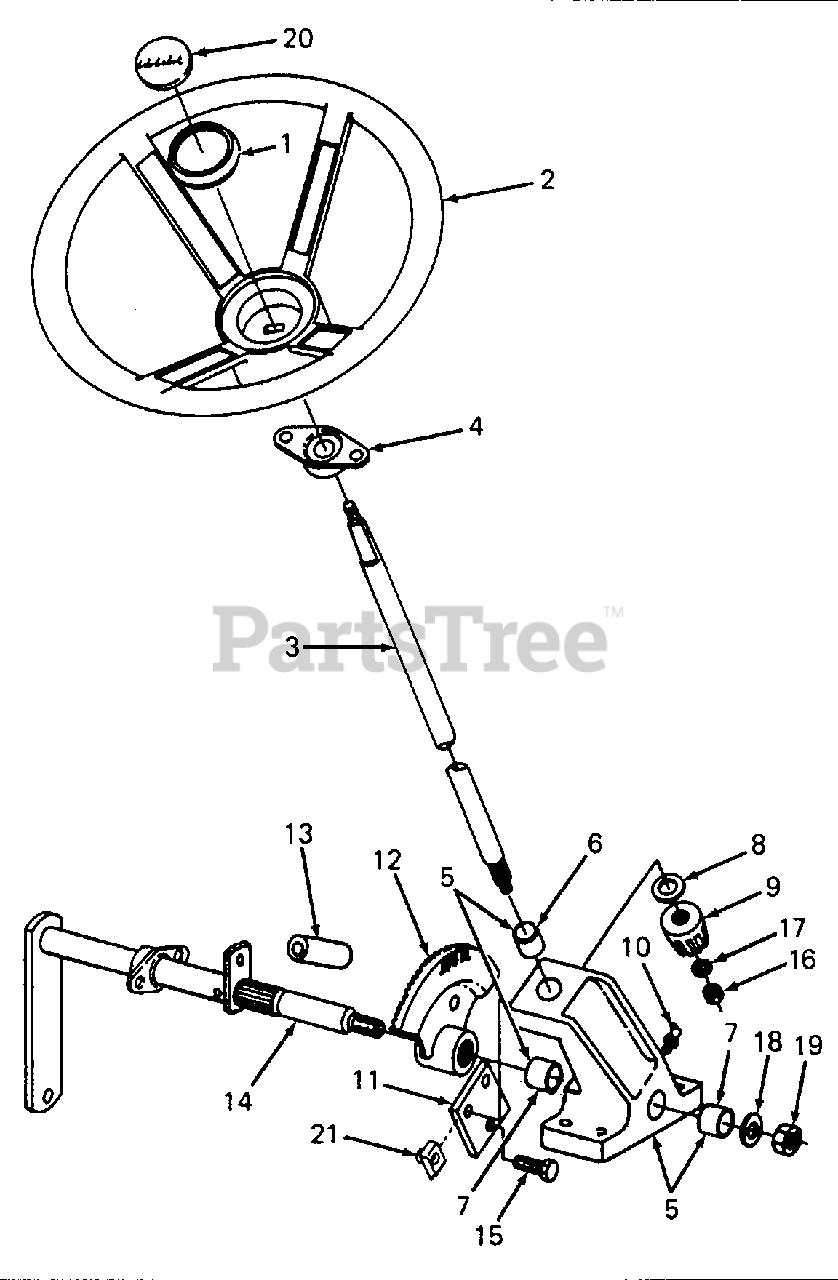

Steering Parts Diagram

  • Title

1

Cub Cadet 731-0220

Cap, Steering Wheel
(Superseded to 931-0220)

$9.99

$

In Stock, only 2 left!

0

2

Cub Cadet 731-0806

Wheel,Steering
(Superseded to 931-0806A)

Note: (Serrated End)

$

$

Not available

Cub Cadet 712-0158

Nut, Hex Cent-L 5/16-18
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 14

0

Cub Cadet 736-0242

Washer, .344 X .88 X .060

$4.99

$

In Stock, Qty 20+

0

3

Cub Cadet 738-3057

Shaft, Steering Wheel

$

$

Not available

4

Cub Cadet 741-3025

Bearing, Flange

$

$

Not available

Cub Cadet 710-3105

Bolt, 5/16 X 7/8 Sq-Nk Crg

$6.49

$

In Stock, only 2 left!

0

Cub Cadet 736-0119

Washer, 5/16 Lock
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

Cub Cadet 712-3010

Nut, 5/16 GR 5

$4.99

$

In Stock, Qty 20+

0

5

Cub Cadet 703-1242

Housing, Steering Gear

Note: (Includes Ref No. 6 & 7)

$

$

Currently unavailable

Cub Cadet 710-0805

Bolt, 5/16 X 1-1/2 GR 5
(Superseded to 710-0805A)

$4.99

$

In Stock, Qty 7

0

Cub Cadet 736-0119

Washer, 5/16 Lock
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

Cub Cadet 712-3010

Nut, 5/16 GR 5

$4.99

$

In Stock, Qty 20+

0

Cub Cadet 712-3043

Retainer, Bolt Push-on

$

$

Not available

6

Cub Cadet 748-3010

Bearing
(Superseded to 941-0181)

$

$

Not available

7

Cub Cadet 748-3012

Bearing

$

$

Currently unavailable

8

Cub Cadet 736-3080

Washer, .63 X 1.13 X .09 Hdn

$

$

Not available

9

Cub Cadet 748-0237

Gear, Pinion
(Superseded to 948-0237)

$23.99

$

In Stock, only 3 left!

0

10

Cub Cadet 737-3001

Fitting, 1/4 45D Taper Drive Thd Lub

$12.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 703-1162

Plate, Back-Up

$

$

Not available

Cub Cadet 710-0601

Bolt, 5/16 X 3/4 GR 5
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 703-1353

Gear, Side
(Superseded to 903-1353)

$96.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 711-3206

Spacer

$

$

Currently unavailable

Cub Cadet 710-0539

Bolt, 3/8-NF X 1-3/4 GR 5

$4.99

$

In Stock, only 2 left!

0

Cub Cadet 712-0241

Washer, 3/8 Lock

$4.99

$

In Stock, only 2 left!

0

Cub Cadet 736-0169

Nut, 3/8-NF GR 5

$3.99

$

In Stock, Qty 11

0

14

Cub Cadet 703-1352

Shaft, Steering

$

$

Not available

15

Cub Cadet 710-0670

Bolt, Nylon

$7.49

$

Usually ships in 3-6 days

0

Cub Cadet 712-0798

Nut, 3/8 GR 5

$4.49

$

In Stock, only 2 left!

0

16

Cub Cadet 712-0237

Nut, 5/16-24 Hex Ctr Lock

$5.49

$

In Stock, only 2 left!

0

17

Cub Cadet 736-0264

Washer, .344 X .62 X .063

$7.49

$

In Stock, only 1 left!

0

18

Cub Cadet 736-0237

Washer, .64 X 1.25 X .100

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 712-0204

Nut, 1/2-13 Insert Lock

$

$

Not available

20

Cub Cadet 779-3077

Label, Steering Cap

$

$

Currently unavailable

21

Cub Cadet 726-3008

Clip, Cable

$5.49

$

Usually ships in 3-6 days

0
