16202 C - Toro Walk-Behind Mower (SN: 007000001 - 007999999) (1987) ENGINE ASSEMBLY (MODEL NO. 47PG6) Parts Diagram

Walk-Behind Mower

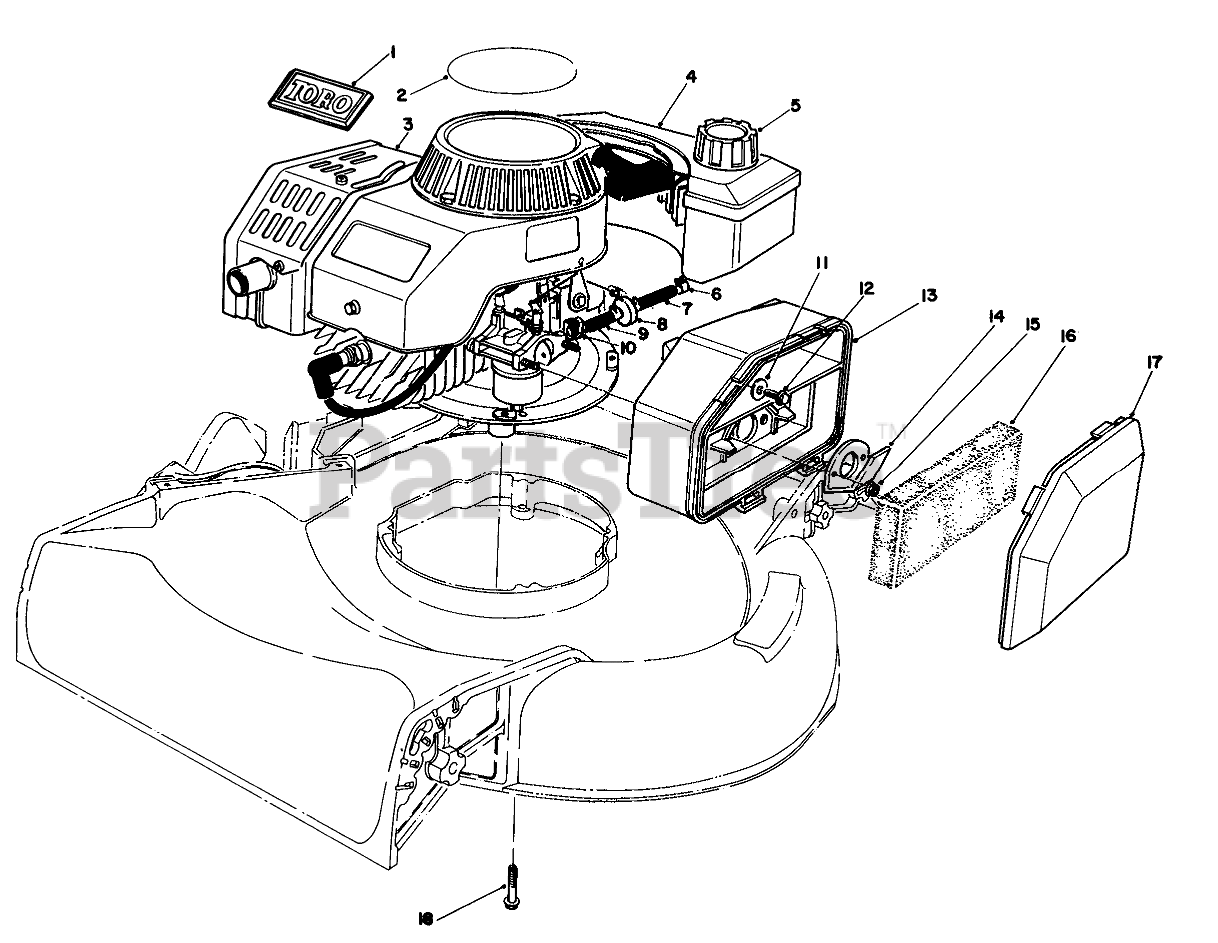

ENGINE ASSEMBLY (MODEL NO. 47PG6) Parts Diagram

  • Title

1

Toro 46-8290

TORO LOGO PLT
(Superseded to 98-3206)

$1.99

$

In Stock, only 2 left!

0

2

Toro 57-3110

DECAL- 2 CYC RECOIL

$

$

Not available

3

Engine (Complete)

$

$

Not available

4

Toro 81-0162

FUEL TANK ASM
(Superseded to 99-5263)

$

$

Not available

5

Toro 55-3575

GAS CAP ASM

$17.99

$

In Stock, only 3 left!

0

6

Toro 2412-95

CLAMP-FUEL LINE

$1.49

$

In Stock, Qty 14

0

7

Toro 51-3215

HOSE-FUEL

$3.99

$

Usually ships in 3-6 days

0

8

Toro 56-6360

FILTER-FUEL

$6.99

$

In Stock, Qty 20+

0

9

Toro 51-3216

HOSE-FUEL

$5.49

$

In Stock, Qty 5

0

10

Toro 51-3200

FUEL LINE CLAMP

$

$

Not available

11

Toro 3256-16

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Toro 51-2690

SCREW-HH

$1.99

$

In Stock, only 4 left!

0

13

Toro 81-0110

AIR CLEANER

$

$

Not available

14

Toro 81-0140

SPIT BACK DEFLECTOR

$16.99

$

Usually ships in 3-6 days

0

15

Toro 49-7810

NUT-LOCK
(Superseded to 33023-00)

$0.99

$

Usually ships in 3-6 days

0

16

Toro 81-0100

FILTER

$9.49

$

In Stock, only 4 left!

0

17

Toro 81-0120

AIR CLEANER COVER

$

$

Not available

18

Toro 3234-20

FLG SCREW,3/8-16X2.000
(Superseded to 66-9302)

$4.99

$

Usually ships in 3-6 days

0

1

Toro 46-5411

Handle-Upper
(Superseded to 84-8332)

$

$

Not available

2

Toro 12-6639

Control-Panel (Incl. Ref. #3)

$

$

Not available

3

Toro 62-4090

Decal-Instruction

$

$

Not available

4

Toro 49-4183

THROTTLE CONT-SERVICE

$65.99

$

Usually ships in 3-6 days

0

5

Toro 62-6740

Decal-Toro

$

$

Not available

6

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

7

Toro 218-466

CLIP

$

$

Not available

8

Toro 49-1690

LOWER HANDLE ASM

$152.99

$

Usually ships in 3-6 days

0

9

Toro 3290-255

PIN-COTTER, HAIR

$8.99

$

In Stock, only 1 left!

0

10

Toro 3296-47

NUT-LOCK, NI

Note: Service Replacement Parts

$3.99

$

In Stock, Qty 20+

0

11

Toro 49-2750

HANDLE PIN

Note: Service Replacement Parts

$32.99

$

Usually ships in 3-6 days

0

12

Toro 19-4050

KNOB

$17.99

$

In Stock, Qty 9

0

13

Toro 17-9421

5/16-18 X 2 HNDLE SCREW
(Superseded to 92-2260)

$3.99

$

In Stock, Qty 20+

0

Toro 12-5779

Loose Parts

Note: Not illustrated

$

$

Currently unavailable
