16212 B - Toro Walk-Behind Mower (SN: 039000001 - 039999999) (1993) Traction Assembly Parts Diagram

Walk-Behind Mower

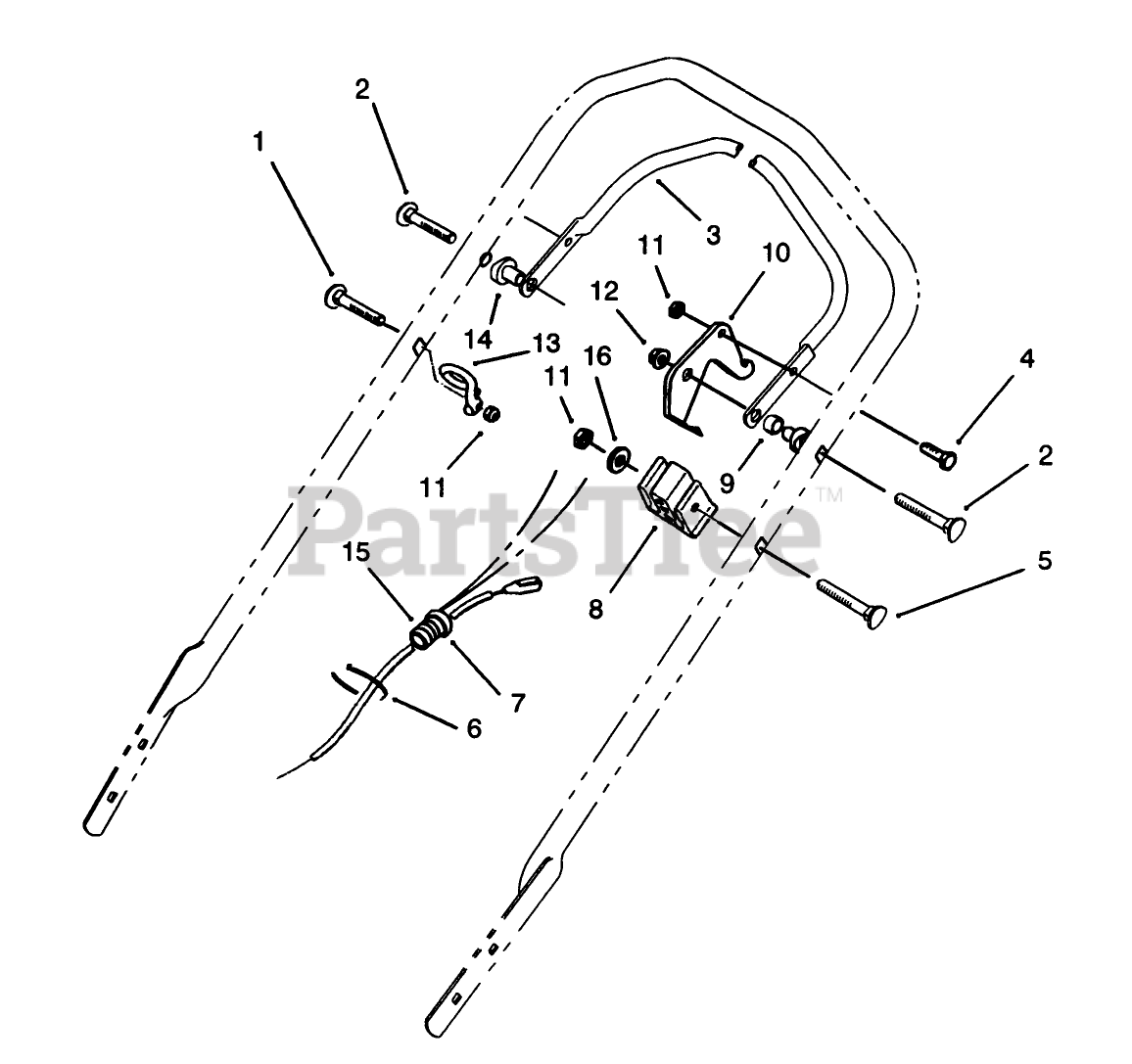

Traction Assembly Parts Diagram

  • Title

1

Toro 46-6433

HANDLE SCREW

$

$

Not available

2

Toro 17-9421

See Supercession: 92-2260
(Superseded to 92-2260)

$4.49

$

In Stock, Qty 20+

0

3

Toro 52-7430

DISCONTINUED
(Superseded to 52-7430-03)

$

$

Not available

4

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

5

Toro 46-6434

HANDLE SCREW

$

$

Not available

6

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 9

0

7

Toro 2412-50

FITTING-RING

$10.99

$

Usually ships in 3-6 days

0

8

Toro 46-6980

SUPPORT-CABLE

$18.99

$

In Stock, only 2 left!

0

9

Toro 256-276

SPACER-NYLON

$2.99

$

Usually ships in 3-6 days

0

10

Toro 66-5350

LEVER-CONTROL

$16.99

$

Usually ships in 3-6 days

0

11

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

12

Toro 3296-58

NUT-LOCK, NI

$2.99

$

In Stock, only 2 left!

0

13

Toro 46-8080

See Supercession: 86-9671
(Superseded to 86-9671)

$4.99

$

In Stock, Qty 10

0

14

Toro 49-1630

SPACER-SUPPORT

$9.49

$

Usually ships in 3-6 days

0

15

Toro 46-6441

DISCONTINUED

$

$

Not available

16

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 15

0
