16255 - Toro Whirlwind Walk-Behind Mower (SN: 003000001 - 003999999) (1973) GEAR BOX ASSEMBLY Parts Diagram

Whirlwind Walk-Behind Mower

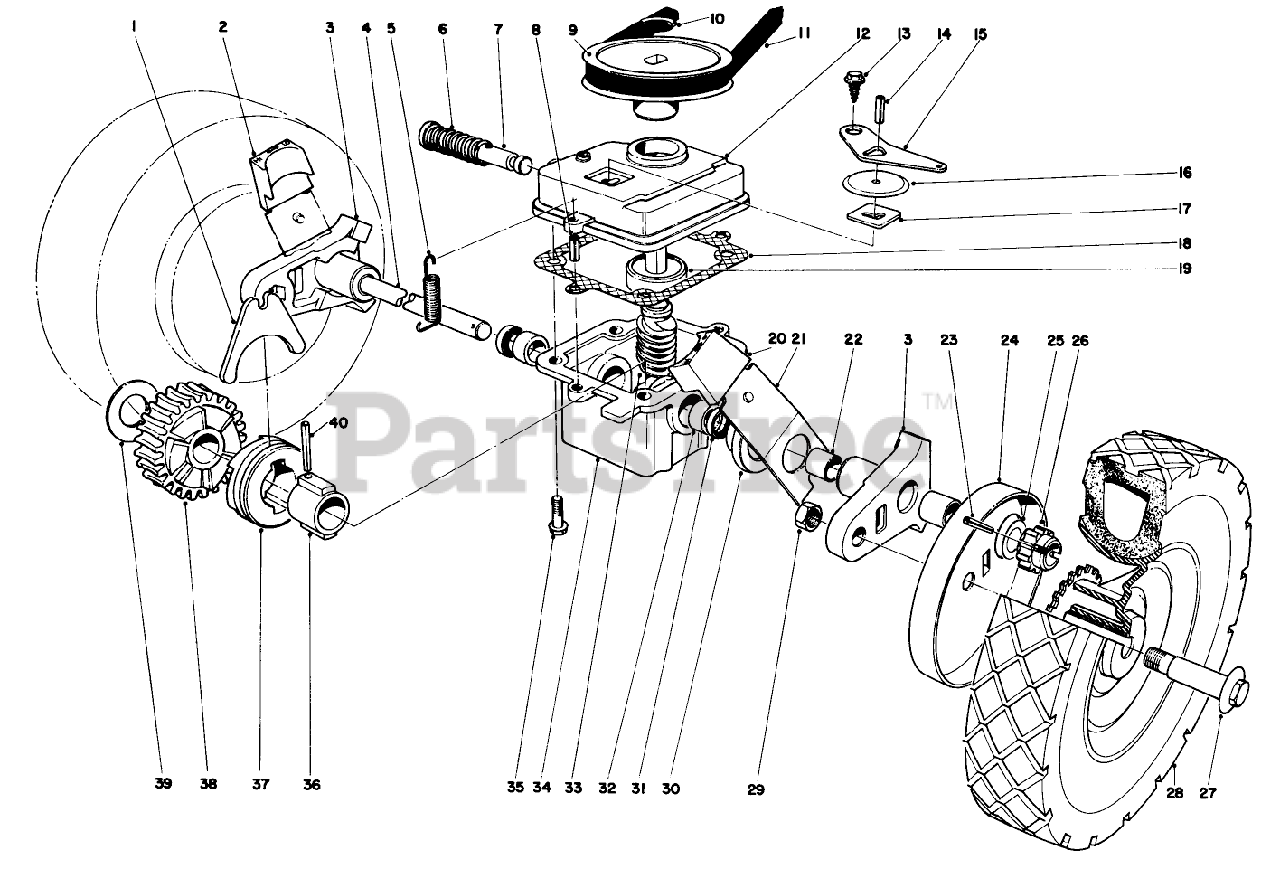

GEAR BOX ASSEMBLY Parts Diagram

  • Title
1

Toro Part# 5-3247

SHIFTER FORK
Usually ships in 1 day

$

$14.61

0

2
Usually ships same day

Currently unavailable

$

$

3

Toro Part# 18-9710

Pivot Arm (Incl. Ref. No. 22)
Usually ships same day

Not available

$

$

4

Toro Part# 18-9730

Drive Shaft
(Superseded to 37-9440)
Usually ships in 5 to 8 days

$

$126.83

0

5

Toro Part# 17-4490

TENSION SPRING
Usually ships in 5 to 8 days

$

$15.38

0

Usually ships in 5 to 8 days

$

$8.01

0

7

Toro Part# 5-3248

Shift Rod
(Superseded to 46-8240)
Usually ships in 5 to 8 days

$

$33.09

0

8

Toro Part# 32121-1

3/16 X 1/2 ROLL PIN
Usually ships in 5 to 8 days

$

$3.05

0

Usually ships in 5 to 8 days

$

$54.26

0

10

Toro Part# 3290-346

PUSH-ON 93-3236
Usually ships in 5 to 8 days

$

$6.36

0

11
Usually ships in 1 day

$

$16.76

0

12

Toro Part# 5-3283

GEAR CASE COVER
Usually ships same day

Not available

$

$

13

Toro Part# 32140-64

Screw
(Superseded to 32144-112)
Usually ships in 1 day

$

$0.94

0

14
Usually ships same day

Not available

$

$

15

Toro Part# 5-3252

SHIFTER ARM
Usually ships in 1 day

$

$29.94

0

16

Toro Part# 3-2615

TRANS DUST COVER
Usually ships same day

Not available

$

$

17

Toro Part# 3-0681

LATCH PLATE
Usually ships in 5 to 8 days

$

$49.89

0

18
Usually ships in 5 to 8 days

$

$6.93

0

19

Toro Part# 251-144

Bearing
(Superseded to 47-7460)
Usually ships in 1 day

$

$62.83

0

20

Toro Part# 6-6230

Arm Knob
(Superseded to 25-7740)
Usually ships in 1 day

$

$4.46

0

21

Toro Part# 3-2640

Spring Arm
Usually ships same day

Not available

$

$

22
Usually ships in 5 to 8 days

$

$6.84

0

23

Toro Part# 3284-3

PIN-GROOVED
Usually ships in 1 day

$

$3.76

0

24

Toro Part# 18-9820

WHEEL COVER
Usually ships in 5 to 8 days

$

$30.41

0

25

Toro Part# 18-9810

WASHER-THRUST
Usually ships in 1 day

$

$7.82

0

26

Toro Part# 18-9690

Pinion
(Superseded to 99-2532)
Usually ships in 5 to 8 days

$

$10.66

0

Usually ships same day

Not available

$

$

28

Toro Part# 12-2610

Wheel & Tire
(Superseded to 11-1279)
Usually ships same day

Not available

$

$

29

Toro Part# 32146-12

Nut
(Superseded to 3296-6)
Usually ships in 1 day

$

$1.44

0

30

Toro Part# 5-0745

End Cap
(Superseded to 92-5714)
Usually ships same day

Not available

$

$

31

Toro Part# 253-86

Seal
(Superseded to 47-7260)
Usually ships in 1 day

$

$6.65

0

32

Toro Part# 256-110

Bushing
(Superseded to 47-2890)
Usually ships in 1 day

$

$3.34

0

33

Toro Part# 18-9700

WORM SHAFT
Usually ships in 5 to 8 days

$

$317.18

0

34

Toro Part# 5-4609

Gear Case
(Superseded to 5-4459)
Usually ships same day

Not available

$

$

35

Toro Part# 11-9760

Screw
(Superseded to 49-2040)
Usually ships in 1 day

$

$1.67

0

36
Usually ships in 5 to 8 days

$

$38.65

0

37

Toro Part# 19-5660

CLUTCH JAW
Usually ships in 5 to 8 days

$

$32.30

0

Usually ships same day

Currently unavailable

$

$

39

Toro Part# 3-0724

THRUST WASHER
Usually ships in 5 to 8 days

$

$6.93

0

40
Usually ships in 1 day

$

$6.81

0

Toro Part# 18-9780

Gear Case Complete

Note: Not illustrated

Usually ships same day

Not available

$

$
