16255 - Toro Whirlwind Walk-Behind Mower (SN: 004000001 - 004999999) (1974) HANDLE ASSEMBLY Parts Diagram

Whirlwind Walk-Behind Mower

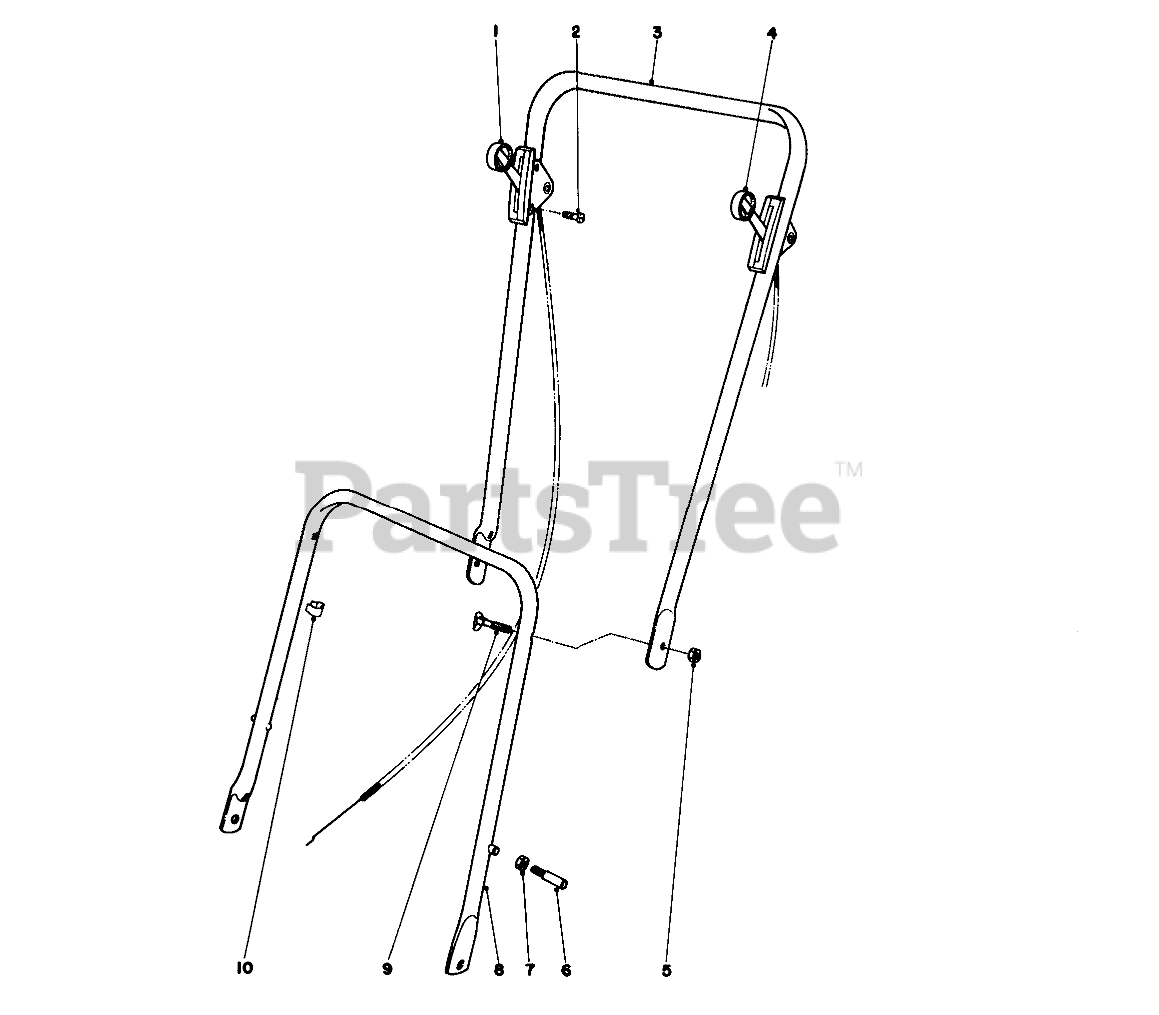

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 46-6010

SERVICE THROTTLE CONTRO

$60.99

$

Usually ships in 3-6 days

0

2

Toro 32104-72

10-24 X 1 PAN HD SCR

$

$

Not available

3

Toro 10-9560

Handle-Upper

$

$

Currently unavailable

4

Toro 21-5120

Traction Control
(Superseded to 46-6040)

$

$

Not available

5

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

6

Toro 17-9380

HANDLE PIN

Note: Service Replacement Parts Only.

$

$

Not available

7

Toro 32146-8

Nut
(Superseded to 32153-4)

Note: Service Replacement Parts Only.

$0.99

$

Usually ships in 3-6 days

0

8

Toro 10-9540

LWR HANDLE STAKED ASM

$

$

Not available

9

Toro 6-6320

1-1/4 LG HANDLE SCREW

$

$

Not available

10

Toro 218-75

CONTROL WIRE CLIP

$

$

Not available

Toro 19-4220

Grass Bag Kit

Note: Not illustrated

$

$

Not available

Toro 19-2590

Giant Bagging Kit

Note: Not illustrated

$

$

Currently unavailable
