16297 - Toro Walk-Behind Mower (SN: 004000001 - 004999999) (1984) EDGER KIT NO. 59125 (OPTIONAL) Parts Diagram

Walk-Behind Mower

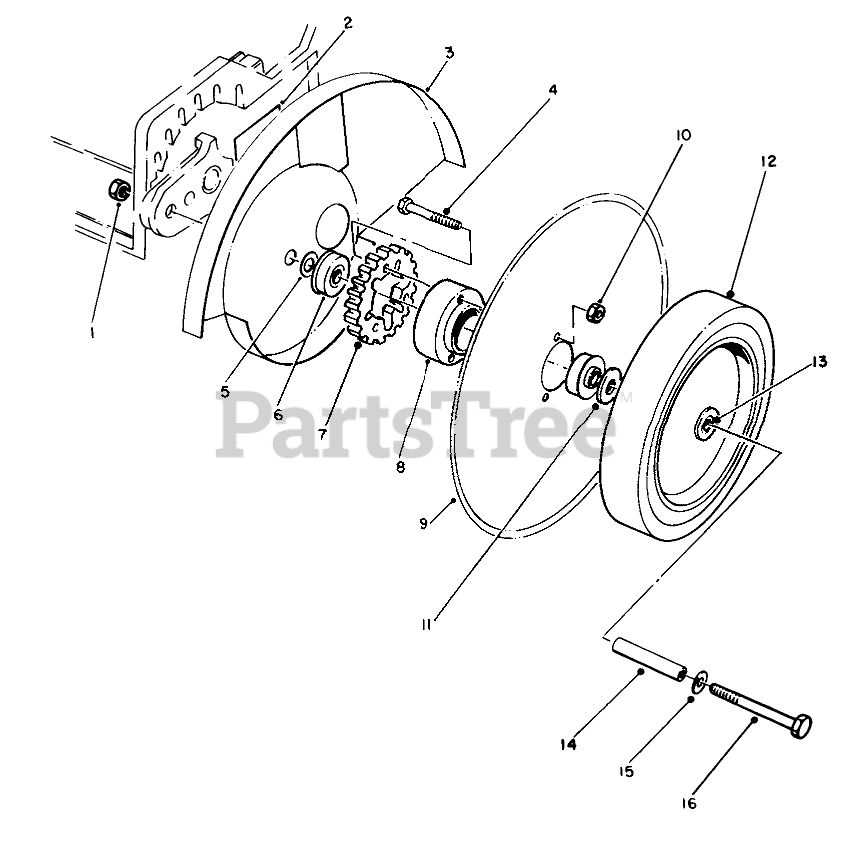

EDGER KIT NO. 59125 (OPTIONAL) Parts Diagram

  • Title

1

Toro 32146-6

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

2

Toro 47-2210

Decal-Toro Edger

$

$

Not available

3

Toro 47-6150

Shield

$

$

Not available

4

Toro 3290-360

SCREW-HH

$5.49

$

Usually ships in 3-6 days

0

5

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

6

Toro 251-180

BEARING-BALL
(Superseded to 116-7257)

$18.99

$

In Stock, only 1 left!

0

7

Toro 49-2130

Gear-Wheel

$

$

Not available

8

Toro 47-6190

Spacer-Hub

$

$

Not available

9

Toro 47-6200

Blade-Edger 80 Tooth

$

$

Not available

10

Toro 32153-1

NUT-LOCK, SIDE

$3.99

$

Usually ships in 3-6 days

0

11

Toro 29-8870

WASHER

$

$

Currently unavailable

12

Toro 34-0380

Wheel Assy. (Incl. Ref. #13)
(Superseded to 27-6210)

$

$

Not available

13

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 20+

0

14

Toro 47-6210

Spacer-Wheel Bolt

$

$

Not available

15

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Toro 3211-17

SCREW-HH

$

$

Not available

Toro 47-6180

Blade & Hub Assy.(Incl. Ref. #4, 6-10)

Note: Not illustrated

$

$

Currently unavailable
