16299 C - Toro Walk-Behind Mower (SN: 008000001 - 008999999) (1988) ENGINE TECUMSEH MODEL NO. TNT 100-10100F Parts Diagram

Walk-Behind Mower

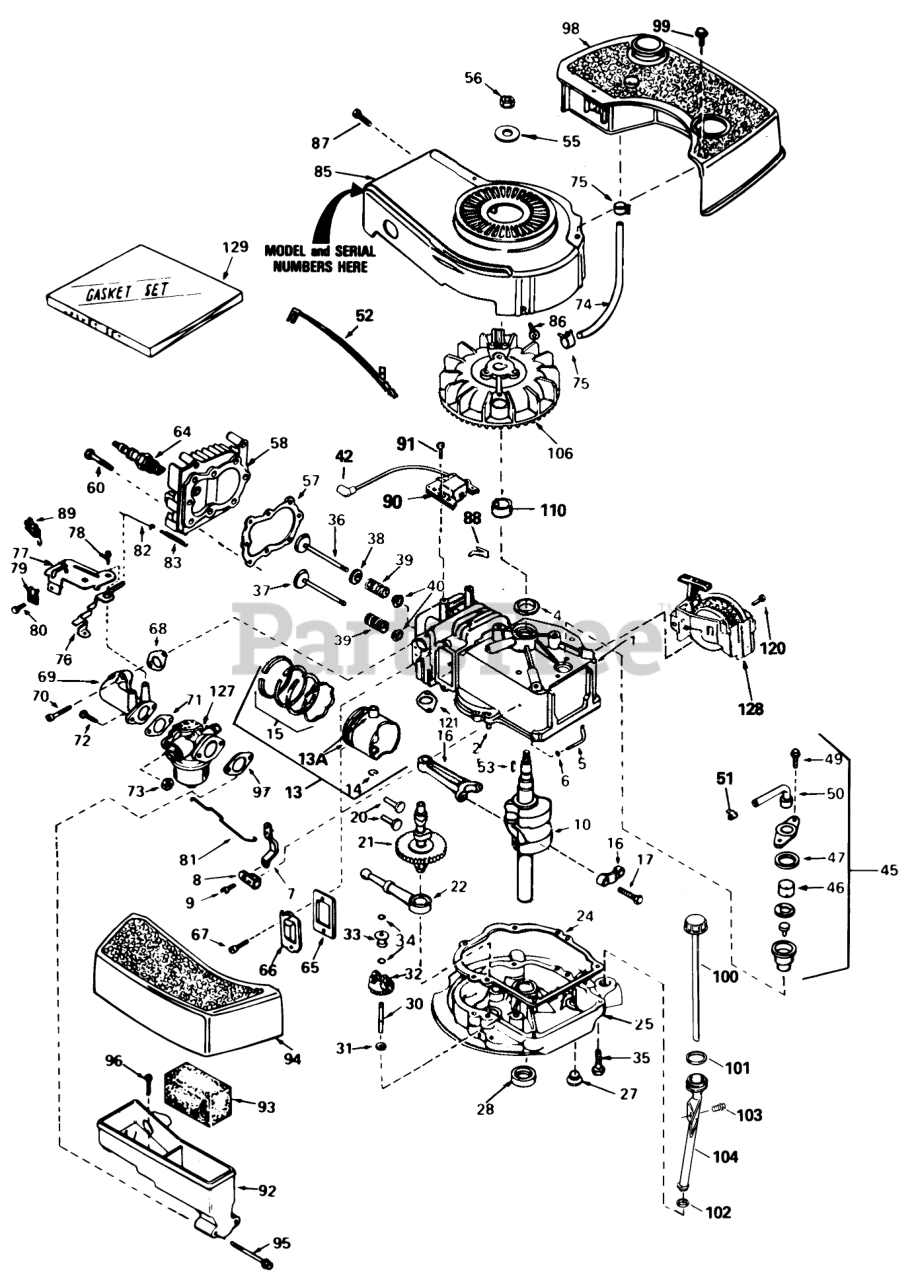

ENGINE TECUMSEH MODEL NO. TNT 100-10100F Parts Diagram

  • Title
1

Tecumseh Part# 34429A

Cylinder Assy. (Inc. #2&4)
Usually ships same day

Currently unavailable

$

$

2
Usually ships in 1 day

$

$1.76

0

Usually ships in 1 day

$

$6.72

0

5

Tecumseh Part# 30589

Rod, Governor (Incl. Ref. #6)
Usually ships in 1 day

$

$5.44

0

6

Tecumseh Part# 28277

Washer-Flat
Usually ships in 1 day

$

$1.76

0

7

Tecumseh Part# 32651

Governor Lever
Usually ships in 8 to 14 days

$

$1.76

0

8

Tecumseh Part# 31335

Clamp-Lever, Governor
Usually ships in 1 day

$

$1.76

0

9

Tecumseh Part# 650548

Screw
(Superseded to 651018)
Usually ships in 1 day

$

$1.66

0

10

Tecumseh Part# 34440

Crankshaft
(Superseded to 37333)
Usually ships same day

Discontinued

$

$

13

Tecumseh Part# 35544

Piston, Pin & Ring Assy. (Std.)(Incl. Ref. #13A, 14, & 15)
(Superseded to 35544A)
Usually ships in 8 to 14 days

$

$60.34

0

13

Tecumseh Part# 35545

Piston, Pin & Ring Assy.(.010 oversize)(Incl. Ref. #16A, 17 & 18)
(Superseded to 35545A)
Usually ships in 8 to 14 days

$

$76.46

0

13

Tecumseh Part# 35546

Piston, Pin & Ring Assy. (.020 Oversize)(Incl. Ref. #13A, 14, & 15)
Usually ships in 8 to 14 days

$

$73.44

0

13A

Tecumseh Part# 35541

Piston & Pin Assy. (Std.)(Incl. Ref. #14)
Usually ships in 8 to 14 days

$

$45.24

0

13A

Tecumseh Part# 35542

Piston & Pin Assy. (.010 Oversize)(Incl. Ref. #14)
Usually ships in 1 day

$

$43.56

0

13A

Tecumseh Part# 35543

Piston & Pin Assy. (.020 Oversize) (Incl. Ref. #14)
Usually ships in 8 to 14 days

$

$43.56

0

14

Tecumseh Part# 20381

Ring-Retaining, Piston Pin
Usually ships in 1 day

$

$1.76

0

15

Tecumseh Part# 35547

Ring Set-Piston (Std.)
(Superseded to 35547A)
Usually ships in 8 to 14 days

$

$38.18

0

15

Tecumseh Part# 35548

Ring Set, Piston(.0100versize)
(Superseded to 35548A)
Usually ships in 8 to 14 days

$

$26.42

0

15

Tecumseh Part# 35549

Ring Set (.020" OS)
Usually ships same day

Currently unavailable

$

$

16

Tecumseh Part# 30963B

Rod Assy., Connecting (Incl. Ref. #17)
Usually ships in 1 day

$

$29.26

0

17

Tecumseh Part# 32610A

Bolt-Rod, Connecting
Usually ships in 1 day

$

$1.76

0

20

Tecumseh Part# 27241

Lifter-Valve
Usually ships in 1 day

$

$5.44

0

21

Tecumseh Part# 33553

Camshaft(Mech.Comp. Release)
(Superseded to 35992)
Usually ships in 8 to 14 days

$

$72.26

0

22

Tecumseh Part# 29914

Oil Pump ASM
Usually ships in 1 day

$

$9.16

0

24

Tecumseh Part# 35261

Gasket
(Superseded to 37609)
Usually ships in 1 day

$

$2.81

0

25

Tecumseh Part# 34831

Flange Assy., Mounting (Incl. Ref. #27, 28 & 30)
(Superseded to 34831A)
Usually ships same day

Currently unavailable

$

$

27

Tecumseh Part# 27244

Plug Oil Drain
(Superseded to 36083)
Usually ships in 1 day

$

$0.86

0

28
Usually ships in 1 day

$

$5.80

0

30

Tecumseh Part# 30574

Shaft-Governor
(Superseded to 30574A)
Usually ships in 1 day

$

$7.00

0

31

Tecumseh Part# 30590A

Washer-Flat
Usually ships in 1 day

$

$4.04

0

32

Tecumseh Part# 30591

Gear Assy., Governor (Incl. Ref. #31)
Usually ships in 1 day

$

$13.90

0

33

Tecumseh Part# 30588A

Spool-Governor
Usually ships in 1 day

$

$1.76

0

34

Tecumseh Part# 29193

Ring-Retaining
Usually ships in 1 day

$

$1.76

0

35

Tecumseh Part# 650488

Screw (1/4-20 x 1-1/4)
Usually ships in 1 day

$

$1.76

0

36

Tecumseh Part# 29314B

Valve, Intake (Std.)(Incl. Ref. #40)
(Superseded to 29314C)
Usually ships in 1 day

$

$5.68

0

36

Tecumseh Part# 29315C

Valve, Intake (1 /32" Oversize)(Incl. Ref. #40)
Usually ships in 8 to 14 days

$

$42.92

0

37

Tecumseh Part# 29313C

Valve, Exhaust (Std.)(Incl. Ref. #40)
Usually ships in 1 day

$

$8.72

0

37

Tecumseh Part# 29315C

Valve, Exhaust (1 /32" Oversize) (Incl. Ref. #40)
Usually ships in 8 to 14 days

$

$42.92

0

38

Tecumseh Part# 35390

Seal Assy., Intake
Usually ships same day

Not available

$

$

39

Tecumseh Part# 31672

Spring-Valve
Usually ships in 1 day

$

$1.76

0

40

Tecumseh Part# 31673

Cap-Valve, Spring
Usually ships in 1 day

$

$1.72

0

42

Tecumseh Part# 610118

Cover-Spark Plug
Usually ships in 1 day

$

$3.74

0

45

Tecumseh Part# 34214A

Breather Assy, (Incl. Ref. #46 Thru 51)
(Superseded to 34214B)
Usually ships in 1 day

$

$15.56

0

46

Tecumseh Part# 33734

Element-Breather
Usually ships in 1 day

$

$1.70

0

47

Tecumseh Part# 33735

Gasket-Breather
Usually ships in 1 day

$

$1.70

0

49

Tecumseh Part# 30200

Screw (10-24 x 9/16)
Usually ships in 1 day

$

$1.24

0

50

Tecumseh Part# 33886

Tube, Breaker
Usually ships in 1 day

$

$7.02

0

51

Tecumseh Part# 33887

Clip, Breather
Usually ships in 1 day

$

$3.78

0

52

Tecumseh Part# 34231

Wire-Ground
Usually ships in 8 to 14 days

$

$3.58

0

53

Tecumseh Part# 611004

Key-Flywheel
Usually ships in 1 day

$

$1.54

0

55

Tecumseh Part# 650815

Washer-Belleville
Usually ships in 1 day

$

$1.76

0

56

Tecumseh Part# 650816

Nut-Flywheel
Usually ships in 1 day

$

$1.76

0

57

Tecumseh Part# 33015

63573 GIL 42 SNWTHW
(Superseded to 33015A)
Usually ships in 1 day

$

$11.04

0

58

Tecumseh Part# 34342

Head-Cylinder
(Superseded to 36476)
Usually ships in 8 to 14 days

$

$32.28

0

60

Tecumseh Part# 6021A

Screw (5/16-18x1-1/2)
Usually ships in 1 day

$

$1.76

0

64

Tecumseh Part# 35395

Spark Plug-Resistor (R J19 L M)
Usually ships in 1 day

$

$3.02

0

65

Tecumseh Part# 27234

Gasket-Breather
(Superseded to 27234A)
Usually ships in 1 day

$

$2.46

0

66

Tecumseh Part# 32755

Cover-Valve
Usually ships in 8 to 14 days

$

$5.30

0

Usually ships in 1 day

$

$5.04

0

68

Tecumseh Part# 34690

Gasket-Intake
(Superseded to 34690A)
Usually ships in 1 day

$

$4.20

0

69

Tecumseh Part# 33004A

Pipe, Intake (Incl. Ref. #68)
Usually ships in 8 to 14 days

$

$23.64

0

70

Tecumseh Part# 650451

Screw (1/4-20 x 1)
Usually ships in 1 day

$

$1.76

0

71

Tecumseh Part# 31688

Gasket-Carburetor
(Superseded to 31688A)
Usually ships in 1 day

$

$2.13

0

72

Tecumseh Part# 6201

Screw (1/4-28 x 7/8)
Usually ships in 1 day

$

$1.76

0

73

Tecumseh Part# 29752

Nut and Lock Washer (1/4-28)
Usually ships in 1 day

$

$1.76

0

74
Usually ships in 1 day

$

$7.30

0

75

Tecumseh Part# 26460

Clamp-Line, Fuel
Usually ships in 1 day

$

$1.49

0

76

Tecumseh Part# 34310

Lever Control
Usually ships in 8 to 14 days

$

$5.26

0

77

Tecumseh Part# 33889A

Control Assy., Speed (Incl. Ref. #76, 78 & 89)
Usually ships in 8 to 14 days

$

$13.66

0

78

Tecumseh Part# 650804

Screw, Hex Washer Hd Shoulder Self-Tap
Usually ships in 8 to 14 days

$

$3.44

0

Usually ships in 1 day

$

$1.76

0

80

Tecumseh Part# 28942

Screw (10-32 x 3/8)
Usually ships in 1 day

$

$1.24

0

81

Tecumseh Part# 34336

Link-Throttle
(Superseded to 34336A)
Usually ships in 1 day

$

$1.72

0

82

Tecumseh Part# 33151

Link Governor Spring
Usually ships in 1 day

$

$1.76

0

83

Tecumseh Part# 33890

Spring Governor
Usually ships in 1 day

$

$1.70

0

85

Tecumseh Part# 33891B

Housing-Blower
Usually ships in 8 to 14 days

$

$52.48

0

86

Tecumseh Part# 650561

Screw (1/4-20x19/32)
Usually ships in 1 day

$

$1.76

0

87

Tecumseh Part# 30200

Screw (10-24 x 9/16)
Usually ships in 1 day

$

$1.24

0

88
Usually ships in 8 to 14 days

$

$1.76

0

89
Usually ships in 8 to 14 days

$

$3.64

0

90

Tecumseh Part# 34443A

Solid State
(Superseded to 34443D)
Usually ships in 1 day

$

$44.94

0

91

Tecumseh Part# 650814

Screw
(Superseded to 651007)
Usually ships in 1 day

$

$1.64

0

92

Tecumseh Part# 33895

Body Air Cleaner
Usually ships in 8 to 14 days

$

$10.78

0

93
Usually ships in 1 day

$

$4.46

0

94

Tecumseh Part# 33897

Cove, Air Cleaner
Usually ships same day

Currently unavailable

$

$

95

Tecumseh Part# 650762

Screw Fil Hd.
Usually ships in 8 to 14 days

$

$5.40

0

96

Tecumseh Part# 650804

Screw, Hex Washer Hd Shoulder Self-Tap
Usually ships in 8 to 14 days

$

$3.44

0

97

Tecumseh Part# 33051

Gasket-Air Cleaner
Usually ships in 1 day

$

$1.38

0

98
Usually ships same day

Currently unavailable

$

$

99

Tecumseh Part# 28763

Screw (10-32 x 35/64)
Usually ships in 1 day

$

$1.62

0

100

Tecumseh Part# 35582

Dipstick, Oil
Usually ships in 1 day

$

$5.44

0

Usually ships in 1 day

$

$1.24

0

Usually ships in 1 day

$

$2.10

0

103

Tecumseh Part# 650562

Screw (10-32 x 1/2)
Usually ships in 1 day

$

$1.68

0

104

Tecumseh Part# 35581

Tube, Oil Fill
Usually ships in 1 day

$

$3.66

0

106
Usually ships in 8 to 14 days

$

$94.44

0

Usually ships in 1 day

$

$1.76

0

120

Tecumseh Part# 650802

Screw (1/2-20x5/8)
Usually ships in 1 day

$

$1.76

0

121

Tecumseh Part# 30081

Gasket Exhaust
(Superseded to 30081A)
Usually ships in 1 day

$

$1.40

0

127

Tecumseh Part# 632050A

Carburetor (Incl. Ref. #71)
(Superseded to 632795A)
Usually ships in 1 day

$

$109.20

0

128

Tecumseh Part# 590531

Starter-Sidemount
(Superseded to 590532)
Usually ships in 1 day

$

$87.70

0

129

Tecumseh Part# 33906A

Gasket Set (Incl. items marked )
(Superseded to 33906D)
Usually ships in 8 to 14 days

$

$23.40

0
