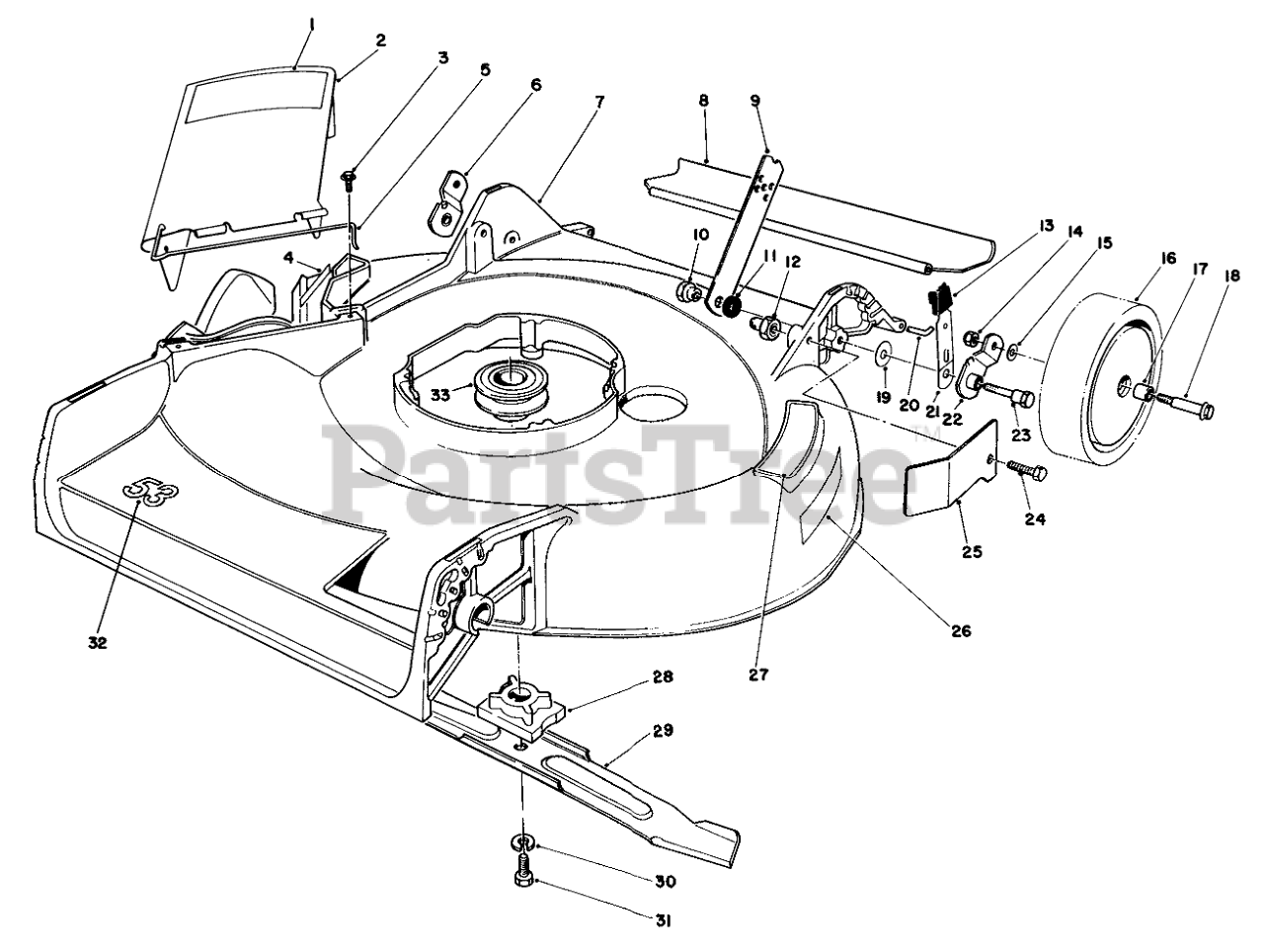

16299 C - Toro Walk-Behind Mower (SN: 008000001 - 008999999) (1988) HOUSIN6 ASSEMBLY Parts Diagram

Walk-Behind Mower

HOUSIN6 ASSEMBLY Parts Diagram

  • Title
1

Toro Part# 62-4210

DECAL - DANGER DEFL
Usually ships in 5 to 8 days

$

$24.61

0

2

Toro Part# 12-6209

Deflector Cover Assembly (Incl. Ref. #1)
(Superseded to 13-5909)
Usually ships in 5 to 8 days

$

$89.54

0

3

Toro Part# 46-6811

SCREW-HWH
Usually ships in 1 day

$

$2.23

0

4

Toro Part# 62-4200

DANGER DECAL
Usually ships same day

Not available

$

$

5

Toro Part# 20-2640

SPRING HINGE
Usually ships same day

Not available

$

$

6

Toro Part# 20-2130

Pivot Arm
(Superseded to 98-1527)
Usually ships same day

Not available

$

$

7

Toro Part# 11-7139

Housing (Incl. Ref. #26)
Usually ships same day

Not available

$

$

8

Toro Part# 22-4950

REAR SAFETY SHIELD 21
Usually ships same day

Not available

$

$

9

Toro Part# 27-7080

HANDLE LATCH
Usually ships in 5 to 8 days

$

$18.21

0

10

Toro Part# 27-6520

HANDLE PIVOT NUT
Usually ships in 1 day

$

$7.13

0

11
Usually ships in 1 day

$

$3.30

0

12

Toro Part# 12-2080

HANDLE PIVOT NUT
Usually ships in 5 to 8 days

$

$18.21

0

13
Usually ships in 1 day

$

$4.46

0

14

Toro Part# 52-3620

Nut
(Superseded to 32153-11)
Usually ships in 1 day

$

$3.53

0

15
Usually ships in 1 day

$

$1.38

0

16

Toro Part# 11-9509

Wheel & Tire Assembly (Incl. Ref. #17)
(Superseded to 51-2751)
Usually ships in 1 day

$

$25.70

0

17
Usually ships in 1 day

$

$2.23

0

18

Toro Part# 27-6230

BOLT-WHEEL
Usually ships in 1 day

$

$6.59

0

19

Toro Part# 5-4460

WASHER-PIVOT
Usually ships in 1 day

$

$5.56

0

20

Toro Part# 33-3201

SHIELD ROD
Usually ships in 5 to 8 days

$

$9.05

0

21

Toro Part# 25-8000

SPRING ARM ASM
Usually ships in 1 day

$

$54.32

0

22

Toro Part# 20-2140

Pivot Arm
(Superseded to 98-1511)
Usually ships in 1 day

$

$28.73

0

23

Toro Part# 28-8880

PIVOT SCREW
Usually ships in 1 day

$

$7.42

0

24

Toro Part# 322-6

SCREW-HH
Usually ships in 1 day

$

$3.58

0

25

Toro Part# 49-8440

MUFFLER SHIELD
Usually ships same day

Not available

$

$

26

Toro Part# 62-3860

Decal Danger
(Superseded to 93-6667)
Usually ships in 5 to 8 days

$

$11.36

0

27

Toro Part# 62-3950

DECAL - STEP PAD INT'L
Usually ships in 5 to 8 days

$

$2.69

0

28

Toro Part# 49-7890

BLADE RETAINER
Usually ships in 5 to 8 days

$

$49.82

0

29

Toro Part# 20-2720

Blade
(Superseded to 20-2720-03)
Usually ships in 5 to 8 days

$

$29.56

0

30

Toro Part# 3253-22

WASHER-LOCK
Usually ships in 1 day

$

$1.88

0

31
Usually ships in 1 day

$

$5.58

0

32

Toro Part# 62-4190

DECAL - 53
Usually ships same day

Not available

$

$

33

Toro Part# 23-0130

Pulley
(Superseded to 93-0278)
Usually ships in 5 to 8 days

$

$35.63

0

Toro Part# 12-6319

Loose Parts
Usually ships same day

Currently unavailable

$

$

Toro Part# 46-1930

Wrench
(Superseded to 62-6770)
Usually ships same day

Not available

$

$

Toro Part# 46-9620

SPK PLUG WRENCH/HDLE
Usually ships in 5 to 8 days

$

$15.47

0

Toro Part# 46-9621

WRENCH KEY
Usually ships same day

Not available

$

$
