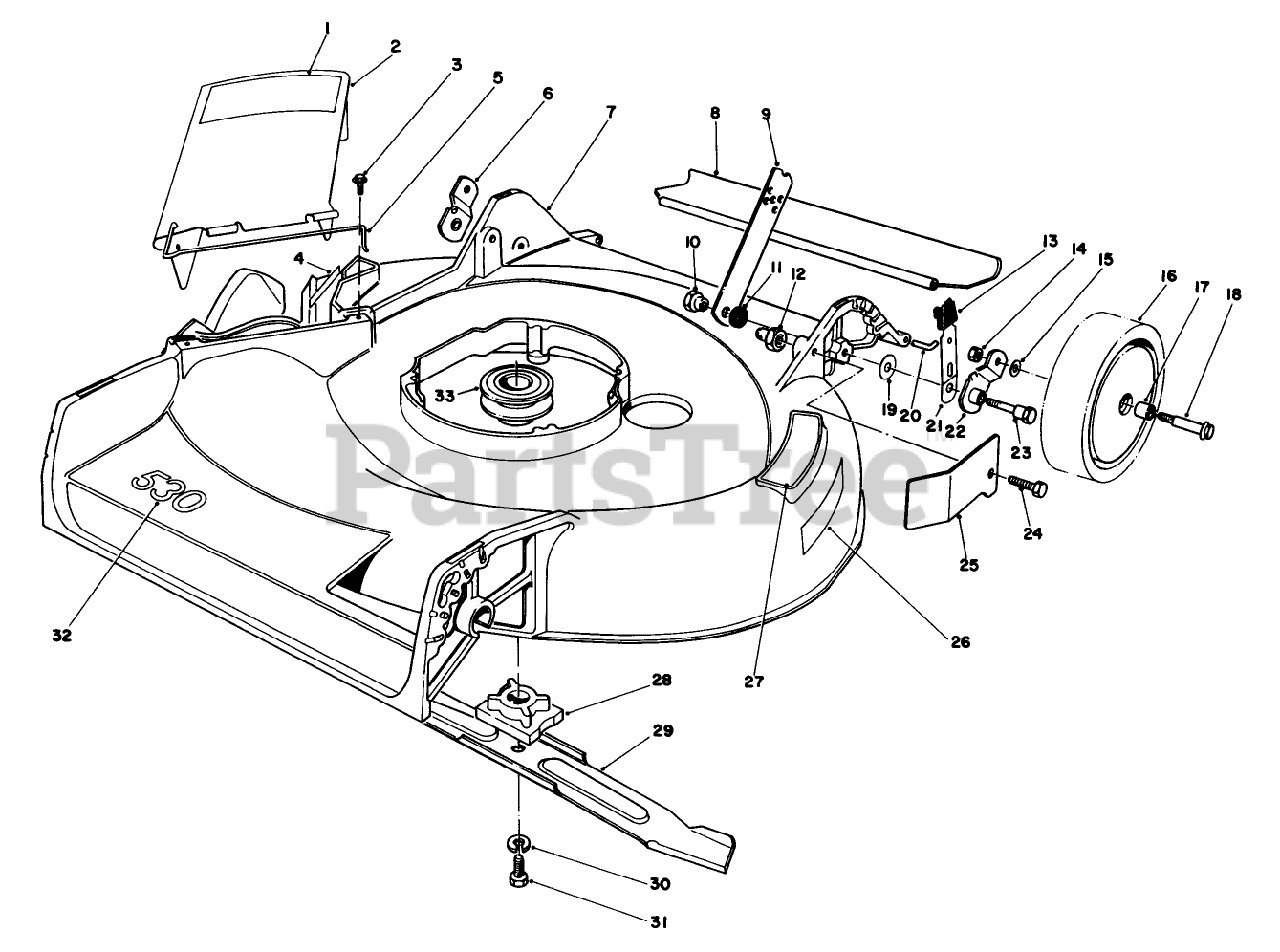

16299 - Toro Walk-Behind Mower (SN: 005000001 - 005999999) (1985) Housing Assembly Parts Diagram

Walk-Behind Mower

Housing Assembly Parts Diagram

  • Title

1

Toro 47-7410

DISCONTINUED

$

$

Not available

2

Toro 27-7818

See Supercession: 13-5909
(Superseded to 13-5909)

$140.99

$

Usually ships in 3-6 days

0

3

Toro 46-6811

SCREW-HWH

$3.99

$

In Stock, only 3 left!

0

4

Toro 40-2760

DISCONTINUED

$

$

Not available

5

Toro 20-2640

DISCONTINUED

$

$

Not available

6

Toro 20-2130

See Supercession: 98-1527
(Superseded to 98-1527)

$

$

Not available

7

Toro 11-7139

DISCONTINUED

$

$

Not available

8

Toro 224950

Rear Shield

$

$

Currently unavailable

9

Toro 27-7080

HANDLE LATCH

$

$

Not available

10

Toro 27-6520

HANDLE PIVOT NUT

$10.99

$

Usually ships in 3-6 days

0

11

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 11

0

12

Toro 12-2080

HANDLE PIVOT NUT

$27.99

$

Usually ships in 3-6 days

0

13

Toro 25-7740

KNOB-ARM

$5.49

$

In Stock, Qty 12

0

14

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 10

0

15

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 12

0

16

Toro 52-7530

DISCONTINUED

$

$

Not available

17

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 20+

0

18

Toro 27-6231

WHEEL BOLT

$5.99

$

In Stock, only 2 left!

0

19

Toro 5-4460

WASHER-PIVOT

$8.49

$

In Stock, only 1 left!

0

20

Toro 33-3201

SHIELD ROD

$

$

Not available

21

Toro 25-8000

SPRING ARM ASM

$

$

Not available

22

Toro 20-2140

See Supercession: 98-1511
(Superseded to 98-1511)

$

$

Not available

23

Toro 28-8880

PIVOT SCREW

$10.99

$

In Stock, only 2 left!

0

24

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 17

0

25

Toro 49-8440

DISCONTINUED

$

$

Not available

26

Toro 47-7400

DISCONTINUED

$

$

Not available

27

Toro 46-7370

STEP PAD DECAL

$28.99

$

Usually ships in 3-6 days

0

28

Toro 49-7890

BLADE RETAINER

$

$

Not available

29

Toro 20-2720

See Supercession: 20-2720-03
(Superseded to 20-2720-03)

$43.99

$

In Stock, only 4 left!

0

30

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 2 left!

0

31

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 12

0

32

Toro 46-8310

DISCONTINUED

$

$

Not available

33

Toro 23-0130

See Supercession: 93-0278
(Superseded to 93-0278)

$53.99

$

Usually ships in 3-6 days

0

Toro 11-6589

Loose Parts

Note: Not illustrated

$

$

Currently unavailable

Toro 46-1930

DISCONTINUED
(Superseded to 62-6770)

Note: Not illustrated

$

$

Not available

Toro 46-9620

SPK PLUG WRENCH/HDLE

Note: Not illustrated

$76.99

$

Usually ships in 3-6 days

0
