16299 - Toro Walk-Behind Mower (SN: 005000001 - 005999999) (1985) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

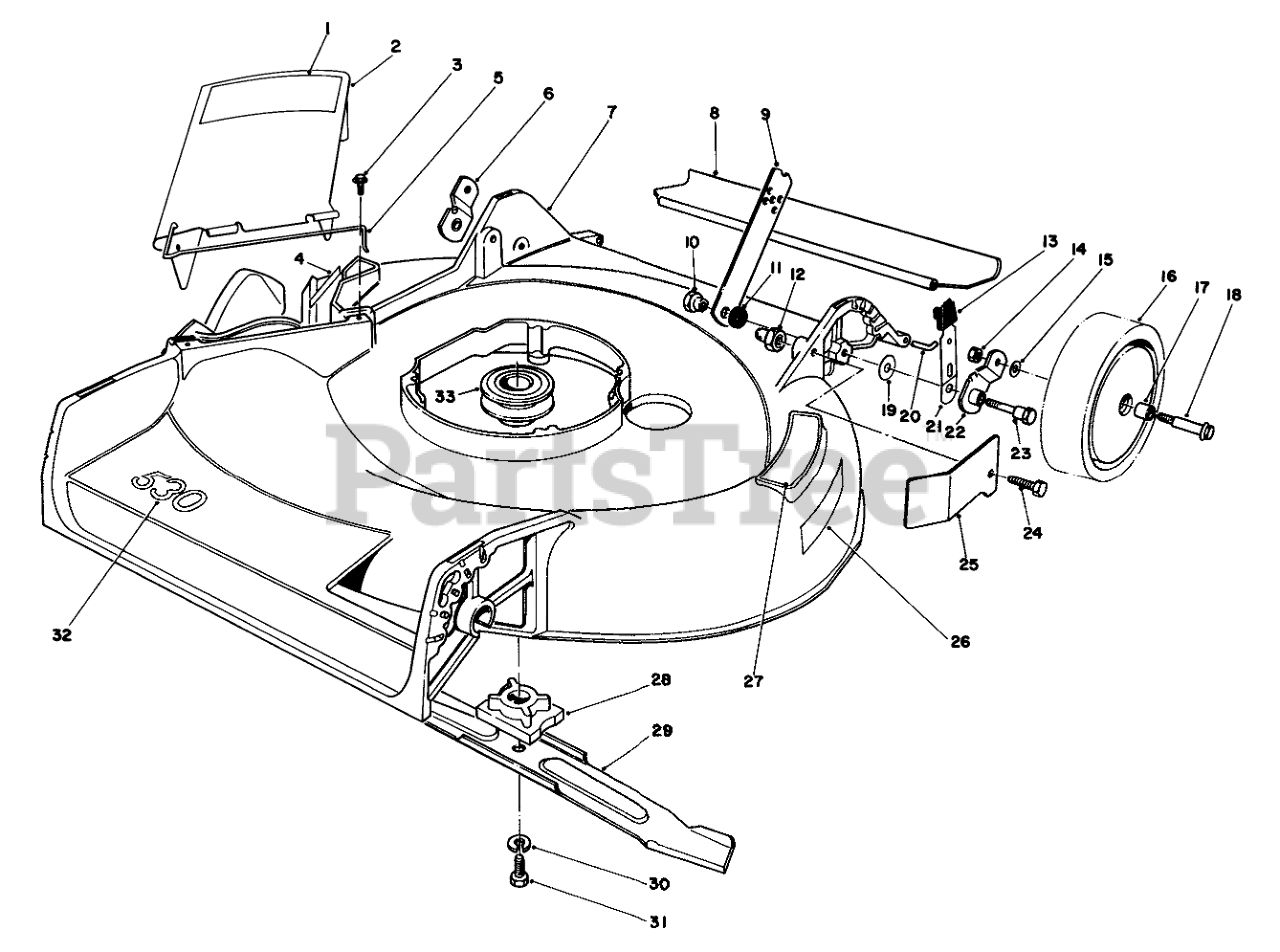

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 47-7410

DANGER DECAL

$

$

Not available

2

Toro 27-7818

Deflector Cover Assembly (Incl. Ref. #1 & 5)
(Superseded to 13-5909)

$110.99

$

Usually ships in 3-6 days

0

3

Toro 46-6811

SCREW-HWH

$3.49

$

In Stock, Qty 7

0

4

Toro 40-2760

Decal-Danger

$

$

Not available

5

Toro 20-2640

SPRING HINGE

$

$

Not available

6

Toro 20-2130

Pivot Arm
(Superseded to 98-1527)

$

$

Not available

7

Toro 11-7139

Housing (Incl. Ref. #26)

$

$

Not available

8

Toro 224950

Rear Shield

$

$

Currently unavailable

9

Toro 27-7080

HANDLE LATCH

$22.99

$

Usually ships in 3-6 days

0

10

Toro 27-6520

HANDLE PIVOT NUT

$8.99

$

Usually ships in 3-6 days

0

11

Toro 3-3287

SPACER

$5.49

$

In Stock, only 4 left!

0

12

Toro 12-2080

HANDLE PIVOT NUT

$22.99

$

Usually ships in 3-6 days

0

13

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 12

0

14

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

15

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

16

Toro 52-7530

Wheel & Tire Assembly (Incl. Ref. #17)

$

$

Not available

17

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 20+

0

18

Toro 27-6231

WHEEL BOLT

$5.99

$

In Stock, Qty 12

0

19

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 20+

0

20

Toro 33-3201

SHIELD ROD

$

$

Not available

21

Toro 25-8000

SPRING ARM ASM

$69.99

$

Usually ships in 3-6 days

0

22

Toro 20-2140

Pivot Arm
(Superseded to 98-1511)

$34.99

$

Usually ships in 3-6 days

0

23

Toro 28-8880

PIVOT SCREW

$9.49

$

In Stock, only 2 left!

0

24

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

25

Toro 49-8440

MUFFLER SHIELD

$

$

Not available

26

Toro 47-7400

Decal-Place Foot Here

$

$

Not available

27

Toro 46-7370

STEP PAD DECAL

$24.99

$

Usually ships in 3-6 days

0

28

Toro 49-7890

BLADE RETAINER

$64.99

$

Usually ships in 3-6 days

0

29

Toro 20-2720

Blade
(Superseded to 20-2720-03)

$36.99

$

In Stock, only 4 left!

0

30

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, Qty 5

0

31

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

32

Toro 46-8310

Decal-530

$

$

Not available

33

Toro 23-0130

Pulley
(Superseded to 93-0278)

$43.99

$

Usually ships in 3-6 days

0

Toro 11-6589

Loose Parts

Note: Not illustrated

$

$

Currently unavailable

Toro 46-1930

Wrench
(Superseded to 62-6770)

Note: Not illustrated

$

$

Not available

Toro 46-9620

SPK PLUG WRENCH/HDLE

Note: Not illustrated

$19.99

$

Usually ships in 3-6 days
