163 (190-163-100) - Cub Cadet 42" Lawn Sweeper 163/42" Lawn Sweeper Parts Diagram

42" Lawn Sweeper

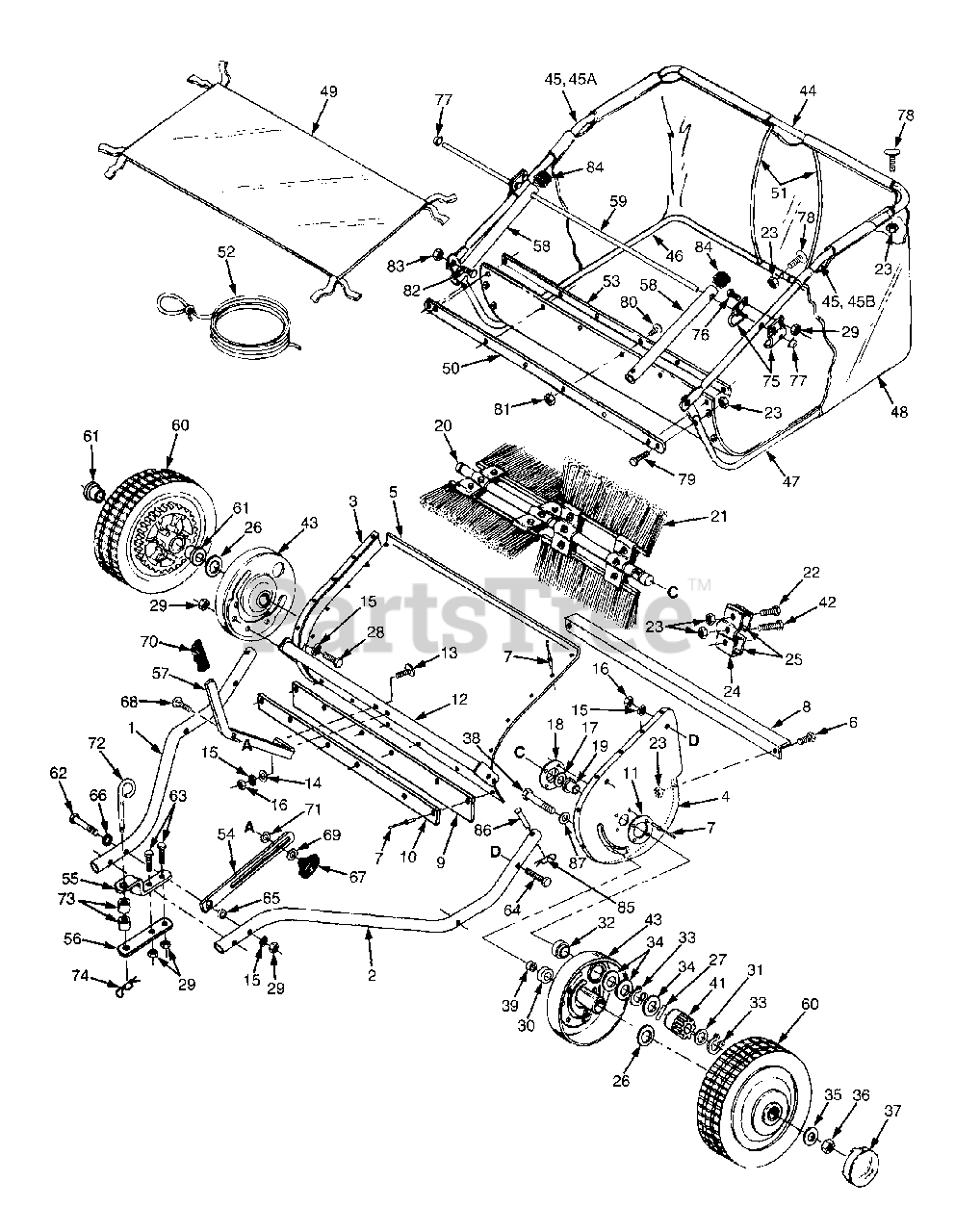

163/42" Lawn Sweeper Parts Diagram

  • Title

1

Cub Cadet AF-46776

Hitch Tube, R.H.

$

$

Not available

2

Cub Cadet AF-46777

Hitch Tube, L.H.

$

$

Not available

3

Cub Cadet AF-24182

End Plate, R.H.

$

$

Currently unavailable

4

Cub Cadet AF-24183

End Plate, L.H.

$

$

Not available

5

Cub Cadet AF-24184

Wrapper

$

$

Not available

6

Cub Cadet 710-3013

Bolt, Hex 1/4-20 x 1/2" Lg.

$4.99

$

In Stock, Qty 7

0

7

Cub Cadet AF-C9M5732

Rivet, Pop

$5.99

$

Usually ships in 3-6 days

0

8

Cub Cadet AF-24185

Brace, Rear Support

$

$

Not available

9

Cub Cadet AF-46778

Skirt, 42"

$

$

Not available

10

Cub Cadet AF-24186

Retainer, Skirt

$

$

Not available

11

Cub Cadet AF-23336

Washer, Special

$3.99

$

In Stock, only 1 left!

0

12

Cub Cadet AF-63463

Height Adjustment Tube Ass'y.

$

$

Not available

13

Cub Cadet AF-44947

Bolt, Cvd. Hd. 5/16-18 x 1-5/8" Lg.

$

$

Not available

14

Cub Cadet AF-44695

Washer,Bowed 1" x .32" x .06"

$

$

Not available

15

Cub Cadet 736-0119

Lock Washer, 5/16"
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

16

Cub Cadet 712-3010

Nut,Hex 5/16-18 Thread

$4.99

$

In Stock, Qty 20+

0

17

Cub Cadet AF-R19212113

Washer, 5/8"

$

$

Not available

18

Cub Cadet AF-1629-56

Retainer, Dust Cover

$

$

Not available

19

Cub Cadet AF-44910

Bushing, Brush Shaft

$

$

Not available

20

Cub Cadet AF-24188

Brush Shaft

$94.99

$

Usually ships in 3-6 days

0

21

Cub Cadet AF-46780

Brush, 42"

$31.99

$

In Stock, Qty 5

0

22

Cub Cadet 710-0812

Bolt, Hex 1/4-20 x 3/4" Lg.

$

$

Not available

23

Cub Cadet 712-0291

Nut, Hex Lock 1/4-20 Thread

$4.99

$

In Stock, only 3 left!

0

24

Cub Cadet AF-23580

Retainer, Brush (Double)

$13.99

$

In Stock, only 2 left!

0

25

Cub Cadet AF-23581

Retainer, Brush (Single)

$14.99

$

In Stock, Qty 5

0

26

Cub Cadet HG-44008

Washer, Flat 1-1/8" x .78" x .025"

$4.99

$

Usually ships in 3-6 days

0

27

Cub Cadet AF-47046

Dowel Pin (Drive)

$7.49

$

In Stock, only 1 left!

0

28

Cub Cadet 710-3039

Bolt, Hex 5/16-18 x 1/2" Lg.

$

$

Not available

29

Cub Cadet 712-0158

Nut, Hex Lock 5/16-18 Thread
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 14

0

30

Cub Cadet AF-44911

Spacer, .39 I.D". x 1-1/4" O.D. x .5"

$

$

Not available

31

Cub Cadet AF-44006

Washer, Flat .849" x .598" x .025"

$

$

Not available

32

Cub Cadet AF-46219

Spacer, .78 I.D". x 1-1/4" O.D. x .5"

$

$

Not available

33

Cub Cadet AF-1650-21

Ring, Retaining .594"

$6.49

$

Usually ships in 3-6 days

0

34

Cub Cadet AF-44007

Washer, Shim 1.125" x .594" x .025"
(Superseded to AF-44007P)

$

$

Not available

35

Cub Cadet AF-141

Washer, Flat 1-1/2" x .375" x .062"
(Superseded to 736-0234)

$6.49

$

Usually ships in 3-6 days

0

36

Cub Cadet 712-3001

Nut, Hex Lock 3/8-24 Thread
(Superseded to 912-3001)

$7.49

$

In Stock, Qty 11

0

37

Cub Cadet AF-2674-32

Hub Cap

$

$

Not available

38

Cub Cadet AF-44961

Bolt, Hex 3/8-24 x 3-1/4" Lg.

$3.99

$

Usually ships in 3-6 days

0

39

Cub Cadet AF-23400

Bushing, Spacer

$

$

Not available

?40

Cub Cadet AF-2692-6

Gear, Pinion R.H.

Note: (Not shown)

$

$

Not available

41

Cub Cadet AF-2692-7

Gear, Pinion L.H.

$

$

Not available

42

Cub Cadet 710-0855

Bolt, Hex 1/4-20 x 1" Lg.
(Superseded to 710-0788)

$7.49

$

In Stock, only 2 left!

0

43

Cub Cadet AF-63027

Ass'y, Dust Cover

$

$

Not available

44

Cub Cadet AF-47477

Tube, Upper Hopper Frame (Mid)

$

$

Not available

45

Cub Cadet AF-47478

Tube, Upper Hopper Frame (Side)

$

$

Not available

45A

Cub Cadet AF-46730

Tube, Upper Hopper Frame R.H.

$

$

Not available

45B

Cub Cadet AF-46731

Tube, Upper Hopper Frame L.H.

$

$

Not available

46

Cub Cadet AF-46732

Tube, Lower Hopper Frame R.H.

$

$

Not available

47

Cub Cadet AF-46733

Tube, Lower Hopper Frame L.H.

$

$

Not available

48

Cub Cadet AF-46736

Hopper Bag

$

$

Not available

49

Cub Cadet AF-46737

Wind Screen

$

$

Not available

50

Cub Cadet AF-24189

Strap, Bag Frame

$

$

Not available

51

Cub Cadet AF-43926

Rod, Hopper Support

$27.99

$

In Stock, only 2 left!

0

52

Cub Cadet AF-43737

Hopper Rope

$

$

Not available

53

Cub Cadet AF-24190

Retainer, Bag

$

$

Not available

54

Cub Cadet AF-24191

Strap, Height Adjustment

$

$

Not available

55

Cub Cadet AF-23687

Bracket, Hitch

$30.99

$

Usually ships in 3-6 days

0

56

Cub Cadet AF-24192

Bracket, Hitch (Straight)

$34.99

$

Usually ships in 3-6 days

0

57

Cub Cadet AF-24193

Handle, Height Adjustment

$

$

Not available

58

Cub Cadet AF-46781

Tube, Bag Arm

$

$

Not available

59

Cub Cadet AF-46823

Rod, Hopper Bag Pivot

$

$

Not available

60

Cub Cadet AF-44985

Wheel & Tire Ass'y. (with bearings)

$

$

Not available

61

Cub Cadet AF-45088

Wheel Bearing

$15.99

$

In Stock, only 2 left!

0

62

Cub Cadet 710-0189

Bolt, Hex 5/16-18 x 3" Lg.

$6.49

$

In Stock, Qty 5

0

63

Cub Cadet 710-3073

Bolt, Hex 5/16-18 x 2-1/4" Lg.
(Superseded to 710-0395)

$4.99

$

In Stock, Qty 8

0

64

Cub Cadet 710-0380

Bolt, Hex 5/16-18 x 1-3/4" Lg.
(Superseded to 710-3180)

$5.99

$

In Stock, Qty 20+

0

65

Cub Cadet AF-46847

Bushing, Spacer

$

$

Not available

66

Cub Cadet AF-R19111116

Washer, Flat (5/16) 11/32" x 11/16"

$

$

Currently unavailable

67

Cub Cadet AF-43720

Knob, Wing 5/16-18 Thread

$19.99

$

Usually ships in 3-6 days

0

68

Cub Cadet 710-0451

Bolt, Carriage 5/16-18 x 3/4" Lg.

$4.49

$

In Stock, Qty 20+

0

69

Cub Cadet AF-43081

Washer, Flat 5/16" Std. Wrt.
(Superseded to 936-0159)

$

$

Not available

70

Cub Cadet AF-43943

Grip, Height Adjust

$

$

Not available

71

Cub Cadet AF-44732

Washer, Tooth Lock 5/16"

$5.99

$

Usually ships in 3-6 days

0

72

Cub Cadet AF-23353

Pin, Hitch

$41.99

$

Usually ships in 3-6 days

0

73

Cub Cadet AF-23368

Tube, Hitch Spacer

$16.99

$

Usually ships in 3-6 days

0

74

Cub Cadet AF-43343

Hairpin Cotter, 1/8" #4

$13.99

$

Usually ships in 3-6 days

0

75

Cub Cadet AF-23331

Clamp, Hopper Mount

$

$

Not available

76

Cub Cadet 710-3008

Bolt, Hex 5/16-18 x 3/4" Lg.

$4.49

$

In Stock, Qty 20+

0

77

Cub Cadet 726-0100

Palnut, 3/8"

$4.99

$

In Stock, only 1 left!

0

78

Cub Cadet AF-43978

Bolt, Cvd. Hd. 1/4-20 x 1" Lg.

$3.99

$

Usually ships in 3-6 days

0

79

Cub Cadet 710-0106

Bolt, Hex 1/4-20 x 1-1/4" Lg.

$4.49

$

In Stock, Qty 12

0

80

Cub Cadet AF-43346

Bolt, Sl. Tr. Hd. #10-32 x 5/8" Lg.

$2.99

$

Usually ships in 3-6 days

0

81

Cub Cadet AF-43662

Nut, Hex Lock #10-32 SEMS

$

$

Not available

82

Cub Cadet 710-3000

Bolt, Hex 3/8-16 x 3/4" Lg.
(Superseded to 710-0216)

$4.49

$

In Stock, only 4 left!

0

83

Cub Cadet 712-0375

Nut, Hex Lock 3/8-16 Thread

$4.99

$

In Stock, only 2 left!

0

84

Cub Cadet AF-44481

Cap, Vinyl

$4.49

$

Usually ships in 3-6 days

0

85

Cub Cadet HA-3430

Hairpin Cotter, 3/32" #3
(Superseded to AF-47134)

$7.49

$

In Stock, only 1 left!

0

86

Cub Cadet AF-46867

Pin, Clevis 1/4" x 1-1/2" Lg.

$

$

Not available

87

Cub Cadet AF-43070

Washer, 3/8" Std. Wrt

$8.99

$

Usually ships in 3-6 days

0
