1630 - Poulan Chainsaw, Electric Electric Saw/Electric Chain Saw Assembly Parts Diagram

Chainsaw, Electric

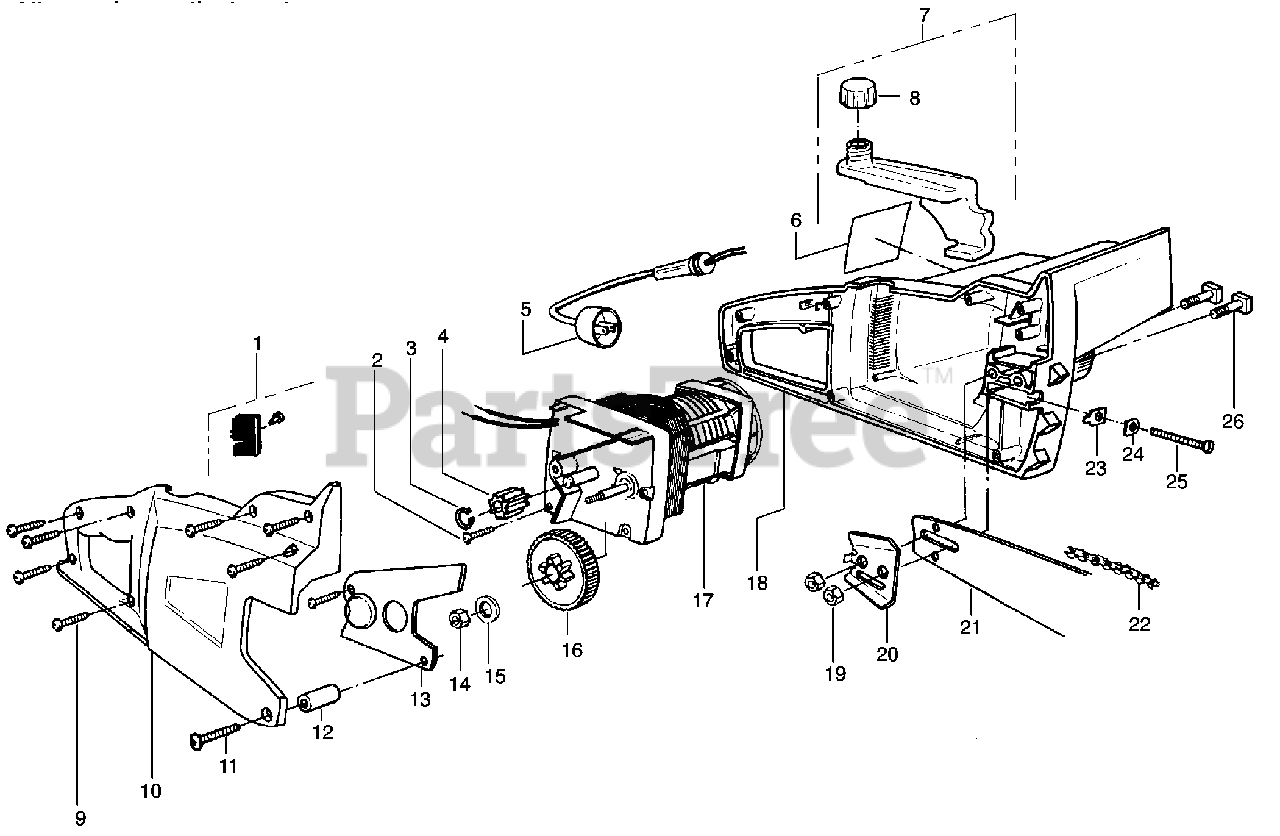

Electric Saw/Electric Chain Saw Assembly Parts Diagram

  • Title

1

Poulan 530-025518

Switch

$

$

Not available

2

Poulan 530-015495

Screw

$

$

Not available

3

Poulan 530-015501

Retaining Ring

$

$

Not available

4

Poulan 530-025463

Pinion Gear

$

$

Not available

5

Poulan 530-401718

Cordset

$

$

Not available

6

Poulan 530-057959

Warning Decal

$

$

Not available

7

Poulan 530-014254

Oil Tank Assembly

$

$

Not available

8

Poulan 530-029282

Oil Cap

$

$

Not available

9

Poulan 530-015495

Screw

$

$

Not available

10

Poulan 530-029504

Hsg - Right

$

$

Not available

11

Poulan 530-015835

Screw

$

$

Not available

12

Poulan 530-015832

Spacer

$

$

Not available

13

Poulan 530-029278

Gear Cover

$

$

Not available

14

Poulan 530-015251

Nut

$4.99

$

Usually ships in 3-10 days

0

15

Poulan 530-015842

Washer

$

$

Not available

16

Poulan 530-029341

Gear Assy

$

$

Not available

17

Poulan 530-404232

Motor Ass'y.

$

$

Not available

18

Poulan 545-038001

Motor Hsg - Left

Note: (Incl. 26)

$

$

Not available

19

Poulan 530-015251

Nut

$4.99

$

Usually ships in 3-10 days

0

20

Poulan 530-029285

Plate

$

$

Not available

21

Poulan 952-044370

16"-Bar

$

$

Not available

22

Poulan 952-051211

16"-Chain

$26.99

$

In Stock, Qty 6

0

23

Poulan 530-023492

Pin

$

$

Not available

24

Poulan 530-025466

Bar Adjusting Plate

$

$

Not available

25

Poulan 530-015514

Screw

$5.99

$

In Stock, Qty 9

0

26

Poulan 530-015831

Bar Mounting Bolt

$

$

Not available

Poulan 115-259626

Operator's Manual

Note: Not Shown

$

$

Not available

Poulan 530-029543

Scabbard - 16"

Note: Not Shown

$

$

Not available
