16300 - Toro Walk-Behind Mower (SN: 002000001 - 002999999) (1982) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

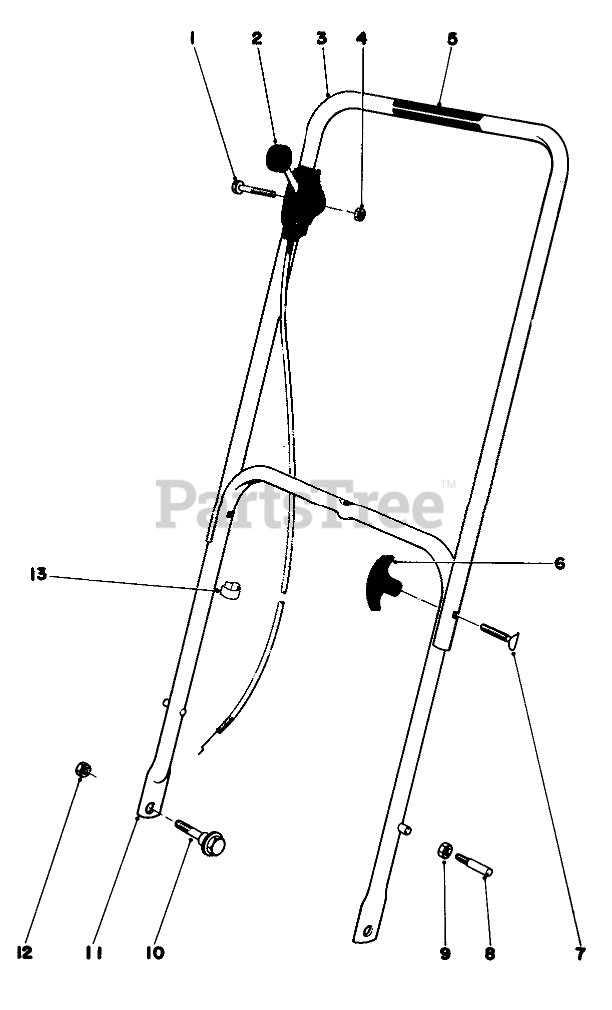

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

2

Toro 33-2531

Throttle Control
(Superseded to 46-6000)

$42.99

$

Usually ships in 3-6 days

0

3

Toro 11-2139

Upper Handle (Incl. Ref. #5)
(Superseded to 38-1271)

$

$

Not available

4

Toro 32146-17

NUT-LOCK
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

5

Toro 29-6290

Decal

$

$

Not available

6

Toro 233-41

KNOB

$

$

Not available

7

Toro 6-6330

HANDLE SCREW

$

$

Not available

8

Toro 17-9380

HANDLE PIN

Note: Service Replacement Parts

$

$

Not available

9

Toro 32146-8

Nut
(Superseded to 32153-4)

Note: Service Replacement Parts

$0.99

$

Usually ships in 3-6 days

0

10

Toro 27-7210

SCREW-SHOULDER

$7.99

$

In Stock, only 4 left!

0

11

Toro 38-1290

19 LOWER HANDLE ASM

$

$

Not available

12

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

13

Toro 218465

Clip

$

$

Currently unavailable
