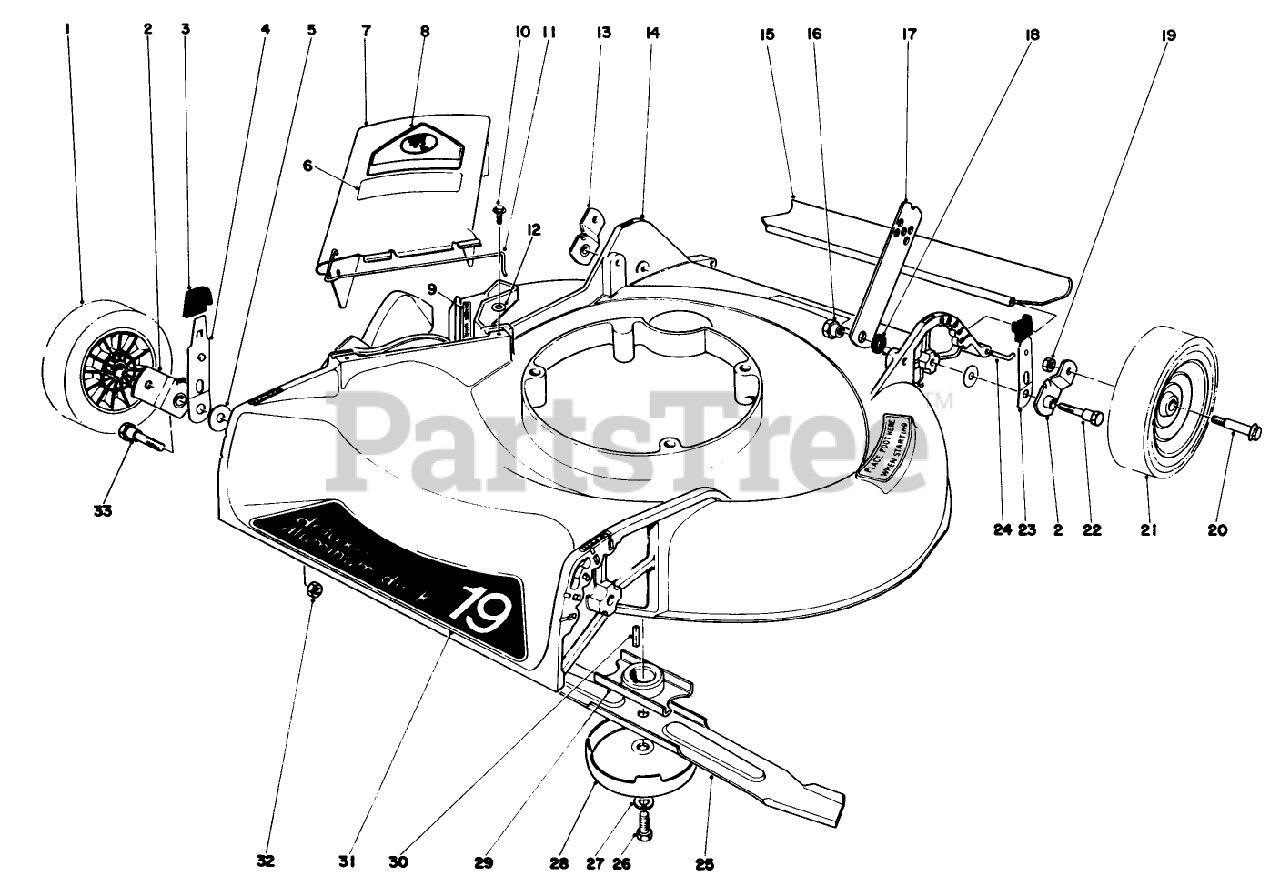

16300 - Toro Walk-Behind Mower (SN: 002000001 - 002999999) (1982) Housing Assembly Parts Diagram

Walk-Behind Mower

Housing Assembly Parts Diagram

  • Title

1

Toro 174140

Wheel Tire Assembly

$

$

Currently unavailable

2

Toro 20-2140

See Supercession: 98-1511
(Superseded to 98-1511)

$

$

Not available

3

Toro 25-7740

KNOB-ARM

$5.49

$

In Stock, Qty 12

0

4

Toro 25-8000

SPRING ARM ASM

$

$

Not available

5

Toro 5-4460

WASHER-PIVOT

$8.49

$

In Stock, Qty 6

0

6

Toro 39-9130

DISCONTINUED

$

$

Not available

7

Toro 27-7810

See Supercession: 13-4049
(Superseded to 13-4049)

$

$

Not available

8

Toro 39-5770

DECAL-DANGER

$10.99

$

In Stock, Qty 6

0

9

Toro 22-7350

DISCONTINUED

$

$

Not available

10

Toro 12-3270

SCREW

$3.99

$

In Stock, Qty 9

0

11

Toro 20-2640

DISCONTINUED

$

$

Not available

12

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 15

0

13

Toro 20-2130

See Supercession: 98-1527
(Superseded to 98-1527)

$

$

Not available

14

Toro 6-7389

Housing

$

$

Currently unavailable

15

Toro 224960

Rear Shield

$

$

Currently unavailable

16

Toro 27-6520

HANDLE PIVOT NUT

$10.99

$

Usually ships in 3-6 days

0

17

Toro 27-7070

See Supercession: 100-3296-03
(Superseded to 100-3296-03)

$

$

Not available

18

Toro 27-6510

HANDLE LATCH SPACER

$

$

Not available

19

Toro 32146-6

See Supercession: 3296-6
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 10

0

20

Toro 3-2652

Bolt

$

$

Not available

21

Toro 174120

Wheel Tire Assembly

$

$

Currently unavailable

22

Toro 28-8880

PIVOT SCREW

$10.99

$

In Stock, only 2 left!

0

23

Toro 27-7240

DISCONTINUED

$

$

Not available

24

Toro 33-3200

DISCONTINUED

$

$

Not available

25

Toro 20-2730

See Supercession: 20-2730-03
(Superseded to 20-2730-03)

$

$

Not available

26

Toro 3-5246

DISCONTINUED

$

$

Not available

27

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 2 left!

0

28

Toro 8-4240

See Supercession: 80-2770
(Superseded to 80-2770)

$18.99

$

In Stock, only 2 left!

0

29

Toro 20-2750

See Supercession: 49-7890
(Superseded to 49-7890)

$

$

Not available

30

Toro 27-8590

KEY-SQUARE

$6.99

$

Usually ships in 3-6 days

0

31

Toro 40-2230

DISCONTINUED

$

$

Not available

32

Toro 32146-5

See Supercession: 32153-3
(Superseded to 32153-3)

$6.99

$

Usually ships in 3-6 days

0

33

Toro 25-3440

PIVOT SCREW

$

$

Not available

Toro 8-9909

Loose Parts

Note: Not illustrated

$

$

Currently unavailable

Toro 25-9150

REPLACEMENT SERIAL PLT

Note: Not illustrated

$20.99

$

Usually ships in 3-6 days

0
