16310 - Toro Walk-Behind Mower (SN: 002000001 - 002999999) (1982) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

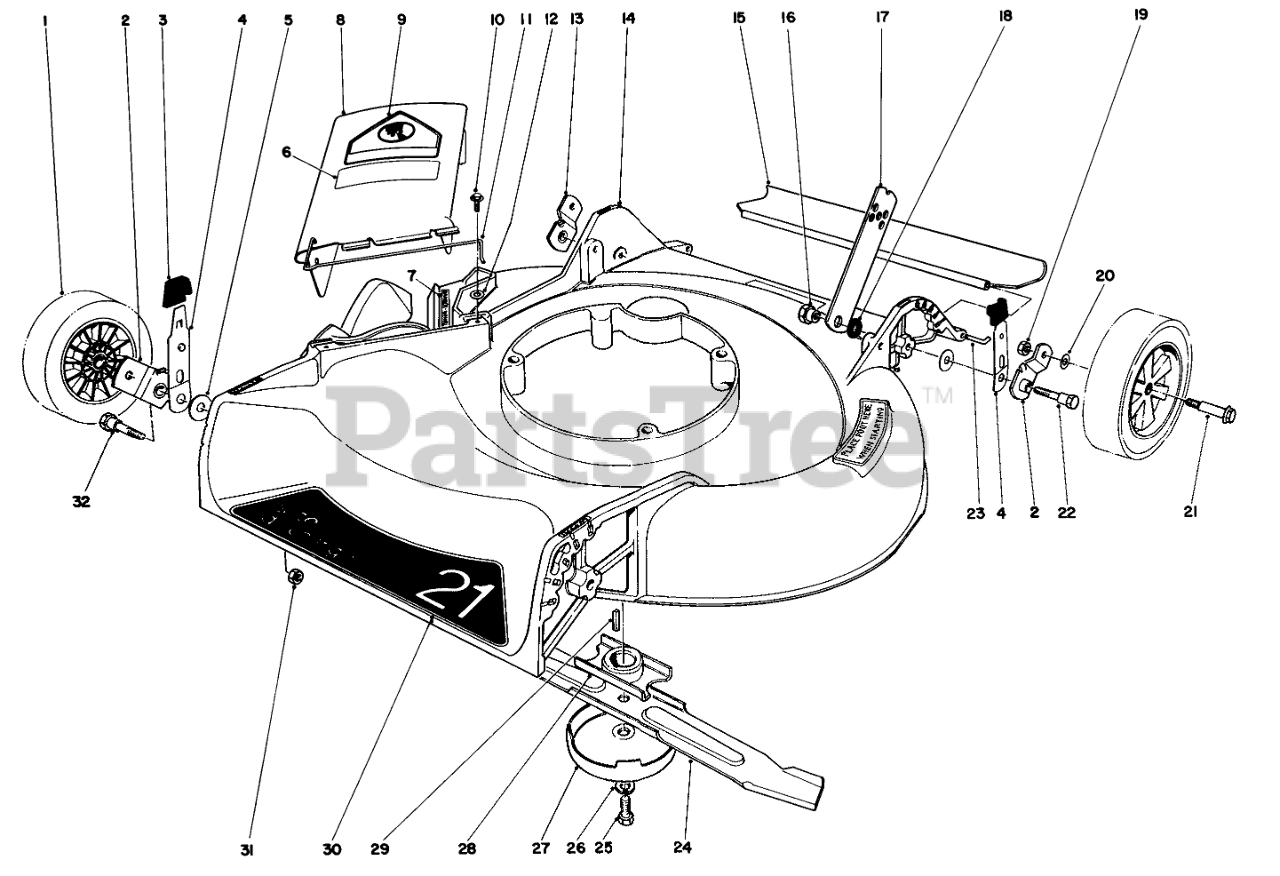

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 27-6200

WHEEL TIRE ASM 8 IN

$

$

Not available

2

Toro 20-2140

Pivot Arm
(Superseded to 98-1511)

$34.99

$

Usually ships in 3-6 days

0

3

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 11

0

4

Toro 25-8000

SPRING ARM ASM

$69.99

$

Usually ships in 3-6 days

0

5

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 20+

0

6

Toro 39-9130

DECAL DEFLECTOR

$

$

Not available

7

Toro 22-7350

Decal

$

$

Not available

8

Toro 27-7810

Deflector-Cover Assembly (Incl. Ref. #6, 9 & 11)
(Superseded to 13-4049)

$

$

Not available

9

Toro 39-5770

DECAL-DANGER

$7.99

$

In Stock, Qty 8

0

10

Toro 12-3270

SCREW

$3.49

$

In Stock, only 2 left!

0

11

Toro 20-2640

SPRING HINGE

$

$

Not available

12

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

13

Toro 20-2130

Pivot Arm
(Superseded to 98-1527)

$

$

Not available

14

Toro 6-7399

Housing

$

$

Not available

15

Toro 224950

Rear Shield

$

$

Currently unavailable

16

Toro 27-6520

HANDLE PIVOT NUT

$8.99

$

Usually ships in 3-6 days

0

17

Toro 27-7080

HANDLE LATCH

$22.99

$

Usually ships in 3-6 days

0

18

Toro 27-6510

HANDLE LATCH SPACER

$4.99

$

Usually ships in 3-6 days

0

19

Toro 32146-6

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

20

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

21

Toro 27-6230

BOLT-WHEEL

$8.49

$

In Stock, only 3 left!

0

22

Toro 28-8880

PIVOT SCREW

$9.49

$

In Stock, only 2 left!

0

23

Toro 33-3201

SHIELD ROD

$

$

Not available

24

Toro 20-2720

Blade
(Superseded to 20-2720-03)

$36.99

$

In Stock, only 4 left!

0

25

Toro 3-5246

SPECIAL SCREW

$

$

Not available

26

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, Qty 5

0

27

Toro 8-4240

AntiScalp Cup
(Superseded to 80-2770)

$15.99

$

In Stock, only 2 left!

0

28

Toro 20-2750

Blade Retailer
(Superseded to 49-7890)

$64.99

$

Usually ships in 3-6 days

0

29

Toro 27-8590

KEY-SQUARE

$6.49

$

Usually ships in 3-6 days

0

30

Toro 44-0430

Decal-Side Discharge

$

$

Not available

31

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

32

Toro 25-3440

PIVOT SCREW

$

$

Not available

Toro 11-2389

Loose Parts

Note: Not illustrated

$

$

Currently unavailable

Toro 25-9150

REPLACEMNT SERIAL PLT

Note: Not illustrated

$17.99

$

Usually ships in 3-6 days

0
