16320 - Toro Walk-Behind Mower (SN: 000000001 - 000999999) (1980) Handle Assembly Parts Diagram

Walk-Behind Mower

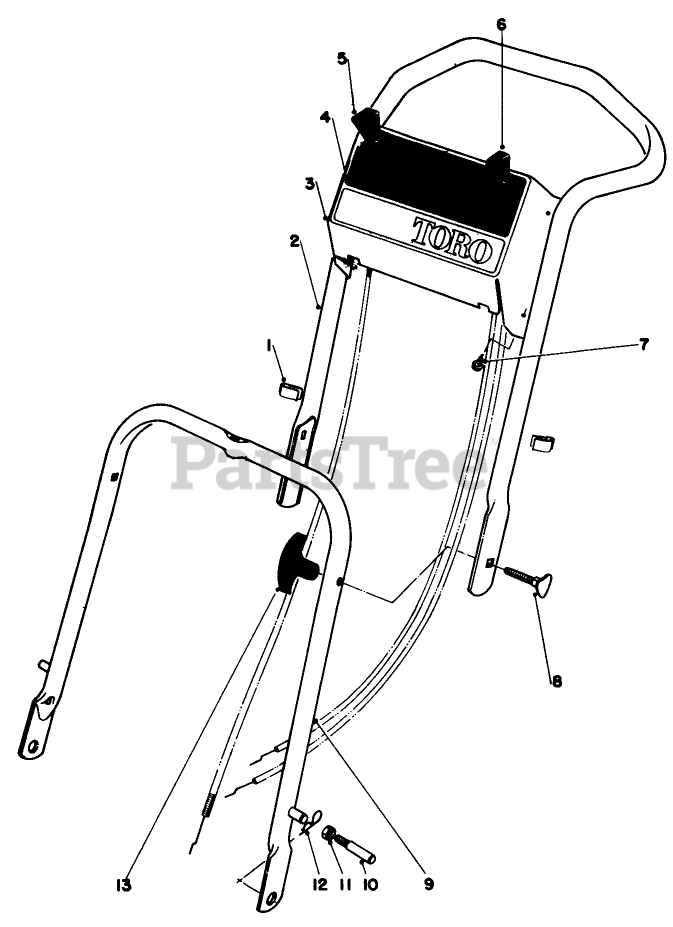

Handle Assembly Parts Diagram

  • Title

1

Toro 218-465

BOWDEN CLIP

$

$

Not available

2

Toro 26-0540

UPPER HANDLE

$369.99

$

Usually ships in 3-6 days

0

3

Toro 39-6610

DISCONTINUED

$

$

Not available

4

Toro 39-6590

DISCONTINUED

$

$

Not available

5

Toro 39-5870

See Supercession: 46-6020
(Superseded to 46-6020)

$

$

Not available

6

Toro 39-5880

See Supercession: 46-6060
(Superseded to 46-6060)

$157.99

$

Usually ships in 3-6 days

0

7

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 5

0

8

Toro 6-6330

DISCONTINUED

$

$

Not available

9

Toro 38-2620

See Supercession: 42-1480
(Superseded to 42-1480)

$

$

Not available

10

Toro 17-9380

HANDLE PIN

$

$

Not available

11

Toro 32146-8

See Supercession: 32153-4
(Superseded to 32153-4)

$0.99

$

Usually ships in 3-6 days

0

12

Toro 3290-255

PIN-COTTER, HAIR

$9.49

$

In Stock, only 1 left!

0

13

Toro 23341

Handle Knob

$

$

Currently unavailable
