16320 - Toro Walk-Behind Mower (SN: 002000001 - 002999999) (1982) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

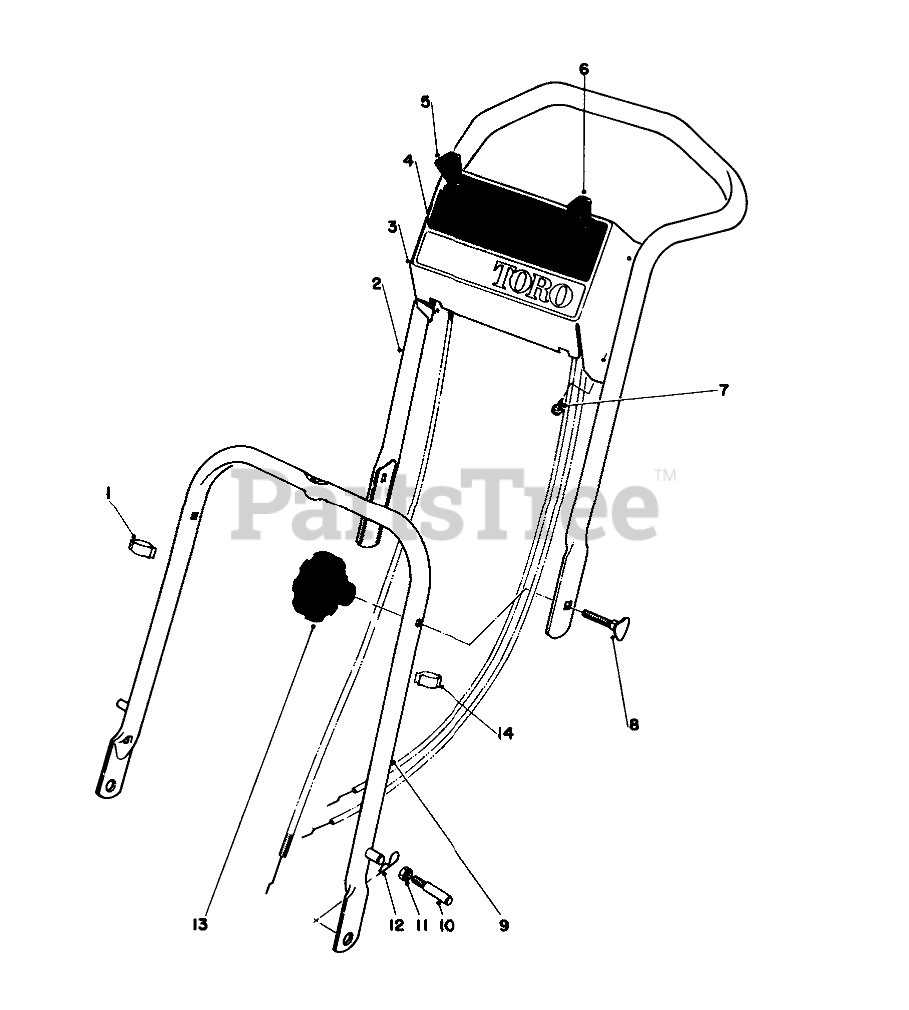

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 218-466

CLIP

$

$

Not available

2

Toro 26-0540

UPPER HANDLE

$279.99

$

Usually ships in 3-6 days

0

3

Toro 11-2919

Control Plate (Incl. Ref. #4)

$

$

Not available

4

Toro 39-6590

Decal-Control Plate

$

$

Not available

5

Toro 39-5870

Throttle Control
(Superseded to 46-6020)

$

$

Not available

6

Toro 39-5880

Traction Control
(Superseded to 46-6060)

$119.99

$

In Stock, only 1 left!

0

7

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

8

Toro 17-9420

SCREW-HANDLE

$3.99

$

Usually ships in 3-6 days

0

9

Toro 42-1480

LOWER HANDLE ASM

$

$

Not available

10

Toro 17-9380

HANDLE PIN

$

$

Not available

11

Toro 32146-8

Nut
(Superseded to 32153-4)

$0.99

$

Usually ships in 3-6 days

0

12

Toro 3290-255

PIN-COTTER, HAIR

$8.99

$

In Stock, only 1 left!

0

13

Toro 19-4050

KNOB

$17.99

$

In Stock, Qty 9

0

14

Toro 218-465

BOWDEN CLIP

$

$

Not available
