16325 - Toro Walk-Behind Mower (SN: 003000001 - 003999999) (1983) Handle Assembly Parts Diagram

Walk-Behind Mower

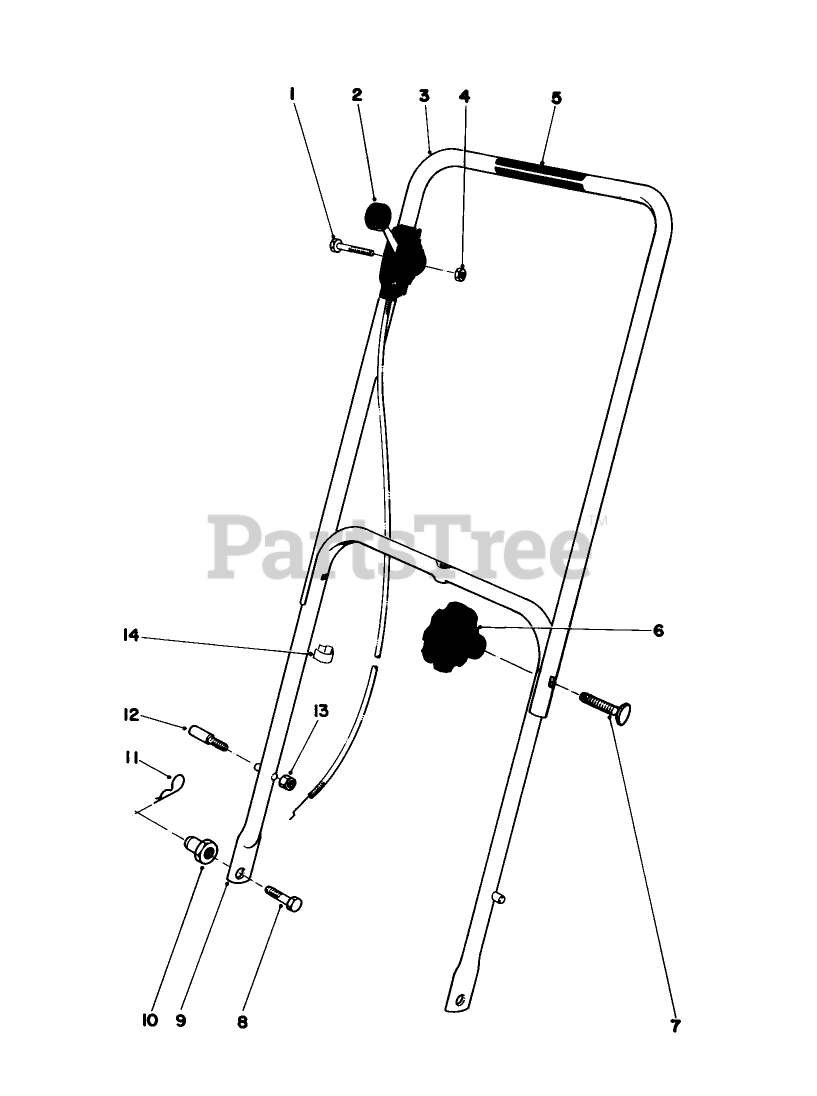

Handle Assembly Parts Diagram

  • Title

1

Toro 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

2

Toro 46-6000

SERVICE THROTTLE CONTRO

$55.99

$

Usually ships in 3-6 days

0

3

Toro 11-5299

DISCONTINUED

$

$

Not available

4

Toro 32146-17

See Supercession: 3296-42
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

5

Toro 46-9260

DISCONTINUED

$

$

Not available

6

Toro 19-4050

KNOB

$18.99

$

In Stock, only 2 left!

0

7

Toro 17-9421

See Supercession: 92-2260
(Superseded to 92-2260)

$4.49

$

In Stock, Qty 20+

0

8

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 17

0

9

Toro 38-1261

DISCONTINUED

$

$

Not available

10

Toro 12-2080

HANDLE PIVOT NUT

$27.99

$

Usually ships in 3-6 days

0

11

Toro 3290-255

PIN-COTTER, HAIR

$9.49

$

In Stock, only 1 left!

0

12

Toro 17-9380

HANDLE PIN

Note: Service Replacement Part Only

$

$

Not available

13

Toro 32146-8

See Supercession: 32153-4
(Superseded to 32153-4)

Note: Service Replacement Part Only

$0.99

$

Usually ships in 3-6 days

0

14

Toro 218-466

DISCONTINUED

$

$

Not available
