16325 - Toro Walk-Behind Mower (SN: 003000001 - 003999999) (1983) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

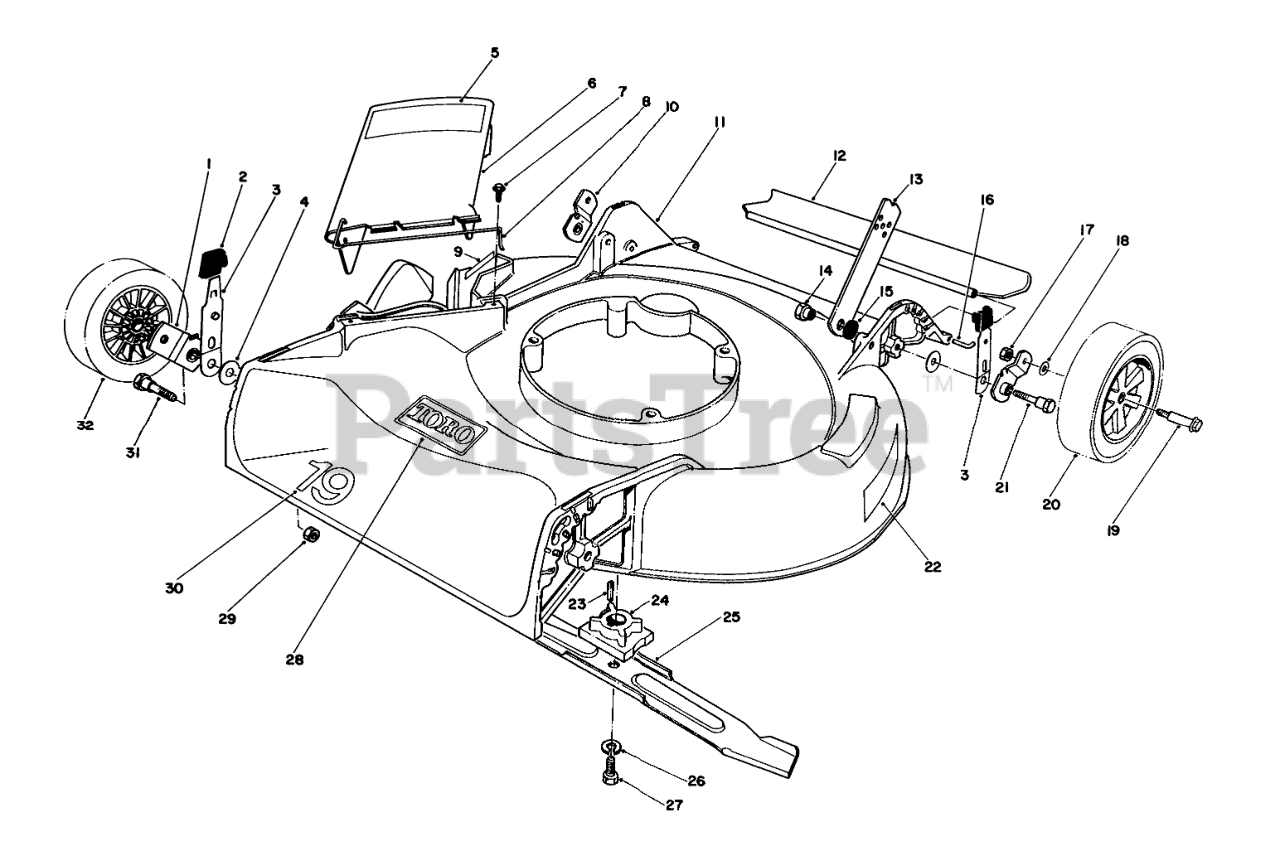

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 20-2140

Pivot Arm
(Superseded to 98-1511)

$34.99

$

Usually ships in 3-6 days

0

2

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 12

0

3

Toro 25-8000

SPRING ARM ASM

$69.99

$

Usually ships in 3-6 days

0

4

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 20+

0

5

Toro 46-9290

Decal-Danger

$

$

Not available

6

Toro 27-7816

Deflector Assembly (Incl. Ref. #5 & 8)
(Superseded to 13-5909)

$110.99

$

Usually ships in 3-6 days

0

7

Toro 46-6810

SCREW AND WASHER ASM

$5.49

$

In Stock, only 3 left!

0

8

Toro 20-2640

SPRING HINGE

$

$

Not available

9

Toro 40-2760

Decal-Danger

$

$

Not available

10

Toro 20-2130

Pivot Arm
(Superseded to 98-1527)

$

$

Not available

11

Toro 11-2369

Housing 19"

$

$

Currently unavailable

12

Toro 22-4960

SHIELD - TRAILING

$81.99

$

Usually ships in 3-6 days

0

13

Toro 27-7080

HANDLE LATCH

$22.99

$

Usually ships in 3-6 days

0

14

Toro 27-6520

HANDLE PIVOT NUT

$8.99

$

Usually ships in 3-6 days

0

15

Toro 27-6510

HANDLE LATCH SPACER

$4.99

$

Usually ships in 3-6 days

0

16

Toro 33-3200

SHIELD ROD

$

$

Not available

17

Toro 32146-6

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

18

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

19

Toro 27-6230

BOLT-WHEEL

$8.49

$

In Stock, only 3 left!

0

20

Toro 34-0390

Wheel & Tire Assembly
(Superseded to 27-6200)

$

$

Not available

21

Toro 28-8880

PIVOT SCREW

$9.49

$

In Stock, only 2 left!

0

22

Toro 46-9320

Decal-Step Pad

$

$

Not available

23

Toro 27-8590

KEY-SQUARE

$6.49

$

Usually ships in 3-6 days

0

24

Toro 46-4870

Blade Retainer
(Superseded to 49-7890)

$64.99

$

Usually ships in 3-6 days

0

25

Toro 20-2730

Blade
(Superseded to 20-2730-03)

$

$

Not available

26

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, Qty 5

0

27

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

28

Toro 44-0510

Decal Tow
(Superseded to 70-2200)

$6.49

$

Usually ships in 3-6 days

0

29

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

30

Toro 28-4760

Decal-19"

$

$

Not available

31

Toro 25-3440

PIVOT SCREW

$

$

Not available

32

Toro 34-0380

Wheel Assembly
(Superseded to 27-6210)

$

$

Not available
