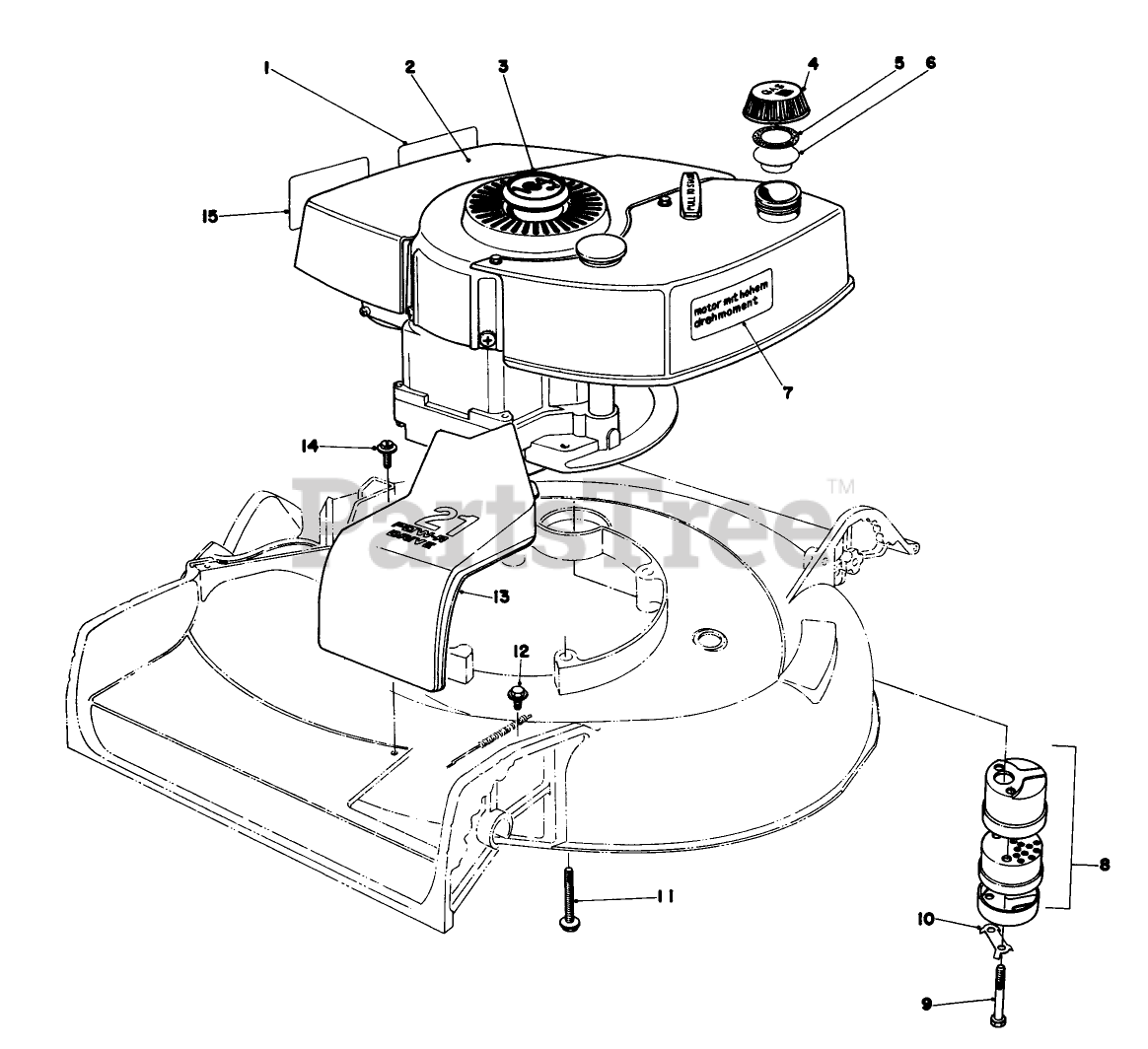

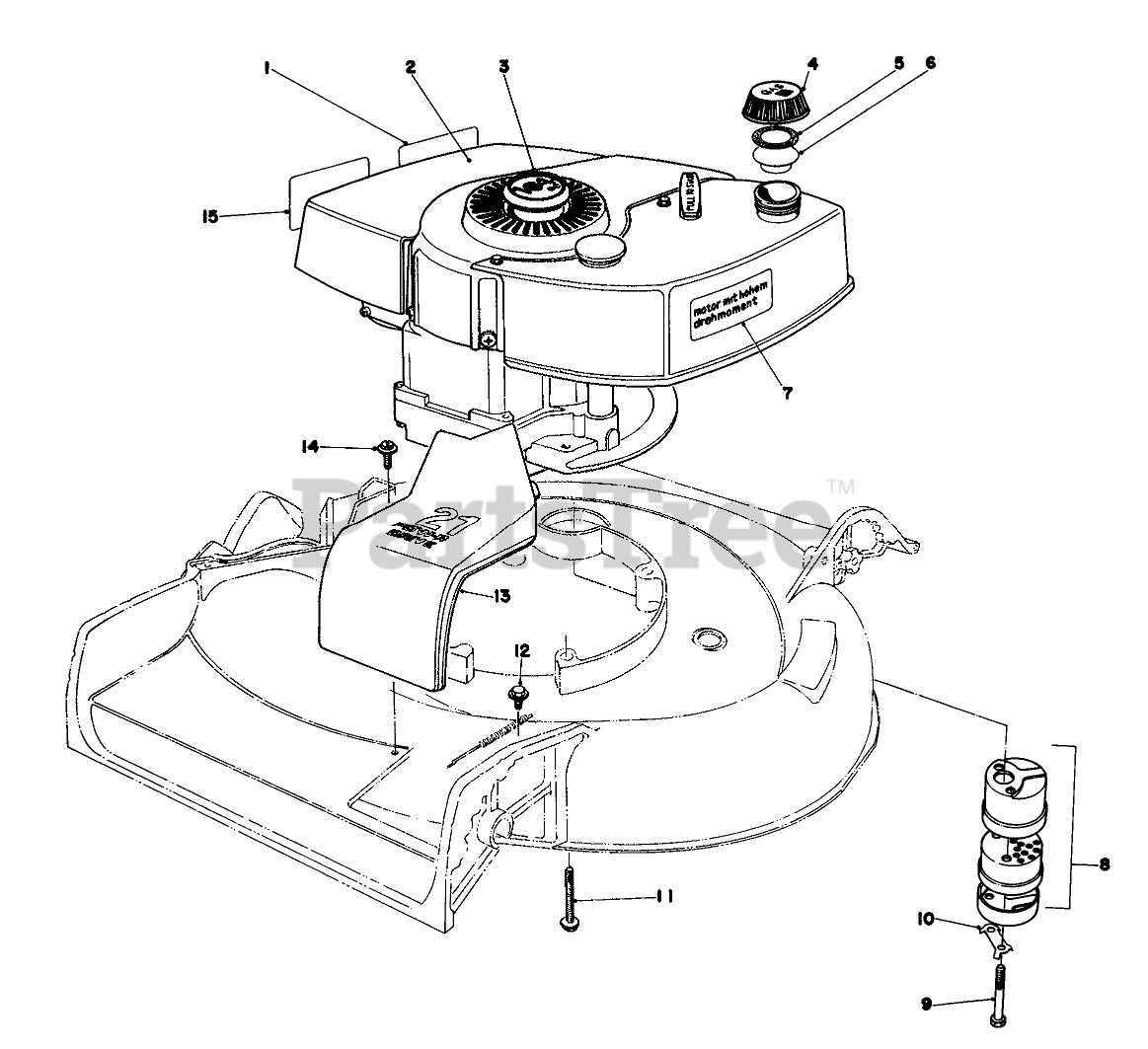

16380 - Toro Whirlwind II Walk-Behind Mower (SN: 000000001 - 000999999) (1980) ENGINE ASSEMBLY Parts Diagram

Whirlwind II Walk-Behind Mower

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 39-2950

Decal-Maintenance

$

$

Not available

2

Toro 221-634

Engine

$

$

Currently unavailable

3

Toro 38-1481

Plug Button

$

$

Not available

4

Toro 27-7871

Gas Cap (Incl. Ref. #5 & 6)
(Superseded to 42-0682)

$

$

Not available

5

Toro 2210-144

GASKET

$9.99

$

Usually ships in 3-6 days

0

6

Toro 2210-143

GAS CAP BAFFLE

$

$

Not available

7

Decal Torque

$

$

Not available

8

Toro 5-4769

Muffler Assy. (Incl. Ref. #9 & 10)

$54.99

$

Usually ships in 3-6 days

0

9

Toro 321-20

SCREW-HH

$7.49

$

Usually ships in 3-6 days

0

10

Toro 3-5094

CLIP - LOCKING

$10.99

$

Usually ships in 3-6 days

0

11

Toro 11-0580

3/8-16 X 2-3/4 CAPSCR

$16.99

$

Usually ships in 3-6 days

0

12

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 8

0

13

Toro 28-4730

BELT DRIVE COVER

$58.99

$

Usually ships in 3-6 days

0

14

Toro 12-5450

SCREW

$8.99

$

In Stock, only 2 left!

0

15

Toro 40-2460

Decal-Maintenance

$

$

Not available
