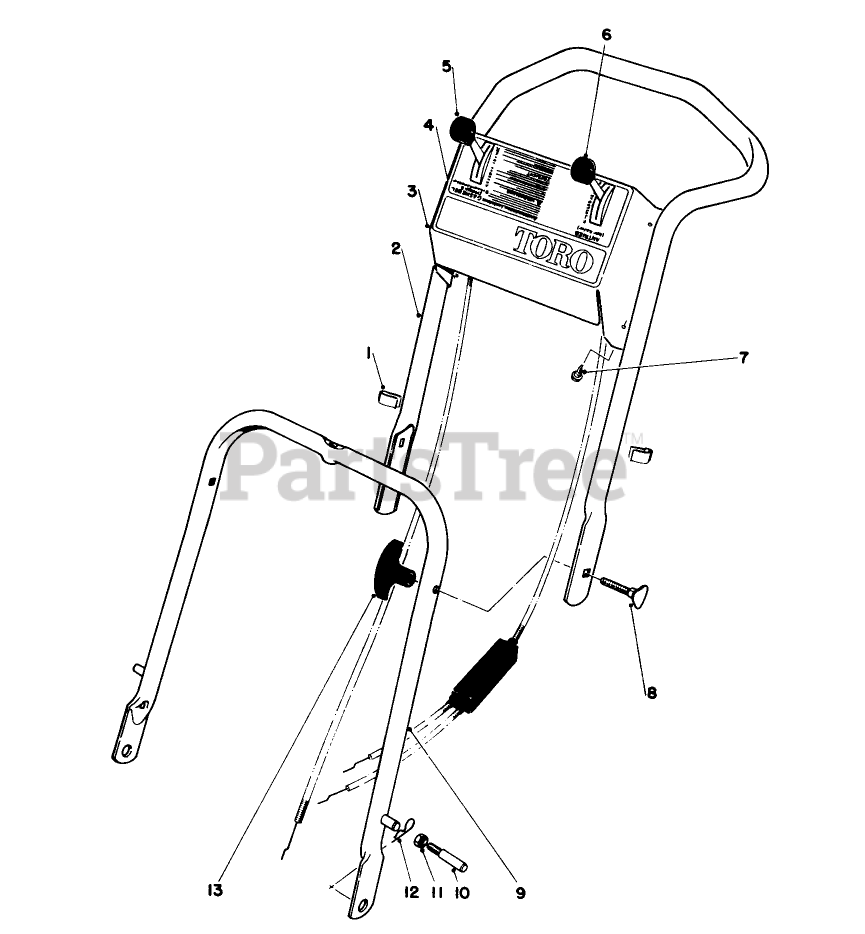

16380 - Toro Whirlwind II Walk-Behind Mower (SN: 000000001 - 000999999) (1980) Handle Assembly Parts Diagram

Whirlwind II Walk-Behind Mower

Handle Assembly Parts Diagram

  • Title

1

Toro 218-465

BOWDEN CLIP

$

$

Not available

2

Toro 26-0540

UPPER HANDLE

$369.99

$

Usually ships in 3-6 days

0

3

Toro 25-0410

DISCONTINUED

$

$

Not available

4

Toro 39-2770

DISCONTINUED

$

$

Not available

5

Toro 33-2546

See Supercession: 46-6010
(Superseded to 46-6010)

$

$

Not available

6

Toro 33-2560

See Supercession: 46-6050
(Superseded to 46-6050)

$

$

Not available

7

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 5

0

8

Toro 6-6330

DISCONTINUED

$

$

Not available

9

Toro 38-2620

See Supercession: 42-1480
(Superseded to 42-1480)

$

$

Not available

10

Toro 17-9380

HANDLE PIN

$

$

Not available

11

Toro 32146-8

See Supercession: 32153-4
(Superseded to 32153-4)

$0.99

$

Usually ships in 3-6 days

0

12

Toro 3290

216 Washer

$

$

Currently unavailable

13

Toro 233-41

DISCONTINUED

$

$

Not available
