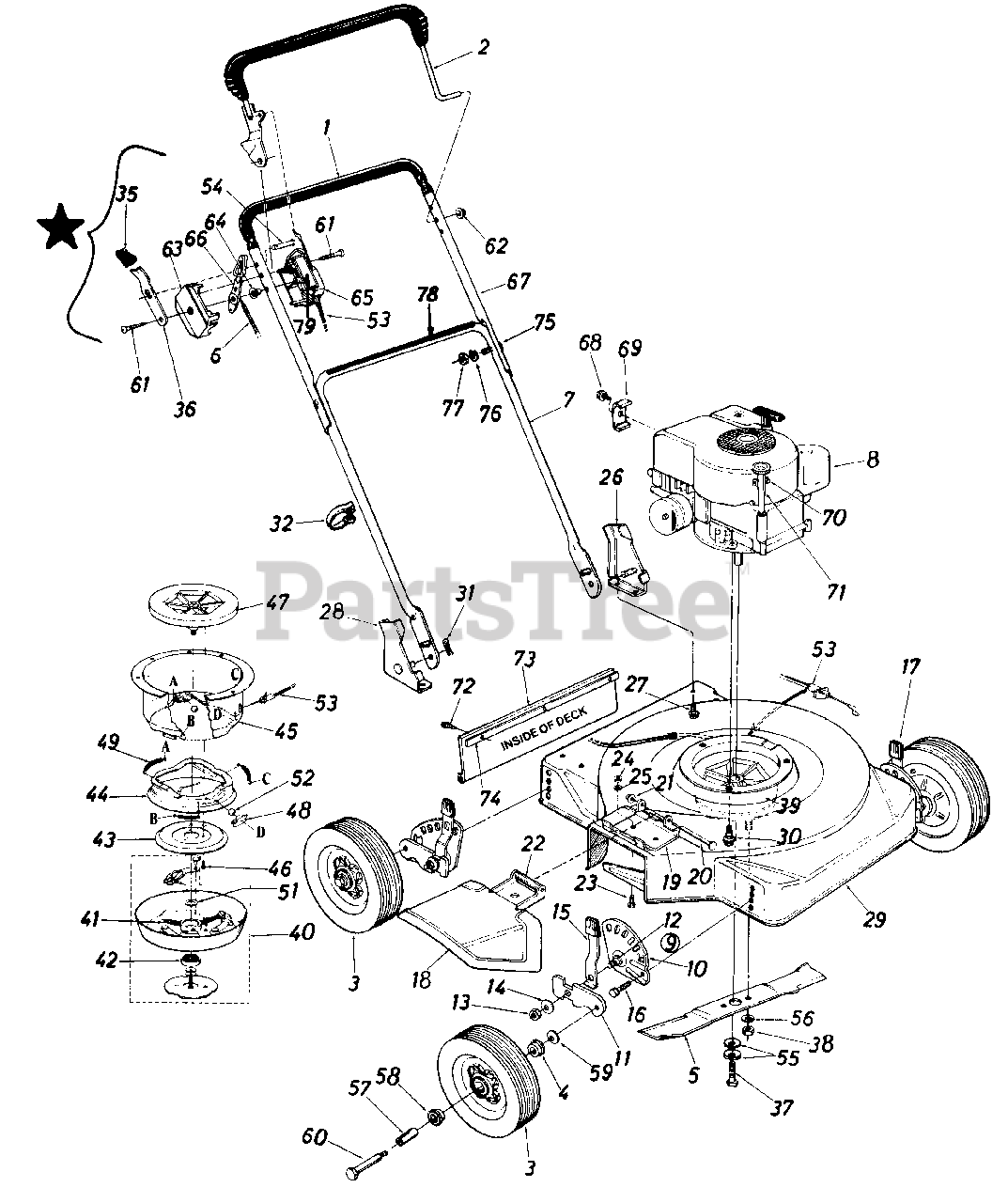

164 (164113) - Cub Cadet Walk-Behind Mower (1983) Control Handle, Wheel And Deck Assemblies Parts Diagram

Walk-Behind Mower

Control Handle, Wheel And Deck Assemblies Parts Diagram

  • Title

Cub Cadet 753-0361

Control Housing Complete

Note: Includes Ref. Nos. 35, 36, 54, 61, 63, 64, 65, 66 & 79

$

$

Not available

1

Cub Cadet 718-0145

Grip

$

$

Currently unavailable

2

Cub Cadet 731-0610

Control Handle Ass'y. - R.H.

Note: Code N

$

$

Not available

3

Cub Cadet 734-0643

Wheel Ass'y. Comp. 8.0 x 1.75

$

$

Not available

4

Cub Cadet 741-0267

Flange Ball Bearing 3/8" I.D.

$

$

Not available

5

Cub Cadet 742-0220

20" Blade

Note: (154113)

$

$

Not available

Cub Cadet 742-0222

22" Blade

Note: (164113)

$

$

Not available

6

Cub Cadet 746-0473

Throttle Control Wire 39.0" - Red
(Superseded to 946-0630A)

Note: (154113)

$29.99

$

In Stock, only 1 left!

0

Cub Cadet 746-0417

Throttle Control Wire 43.0" - Yellow
(Superseded to 946-1115)

Note: (164113)

$29.99

$

In Stock, only 2 left!

0

7

Cub Cadet 749-0373

Lower Handle
(Superseded to 749-0928A)

$35.99

$

In Stock, only 2 left!

0

8

Engine

$

$

Not available

9

Cub Cadet 10938

Height Adjuster Ass'y. - R.H.

$

$

Not available

10

Cub Cadet 10934

Index Plate Ass'y. - R.H.

$

$

Not available

Cub Cadet 10935

Index Plate Ass'y. - L.H.

$

$

Not available

11

Cub Cadet 10937

Pivot Bar

$

$

Not available

12

Cub Cadet 711-0498

Shoulder Bolt

$

$

Not available

13

Cub Cadet 712-0116

Hex Ins. L-Nut 3/8-24 Thd.

$4.99

$

In Stock, only 3 left!

0

14

Cub Cadet 736-0219

Bell-Wash. .400" I.D. x 1.13" O.D.
(Superseded to 936-0219)

$4.49

$

In Stock, only 1 left!

0

15

Cub Cadet 14082

Spring Lever W/Knob

$

$

Not available

16

Cub Cadet 710-0209

Hex Sems Bolt 3/8-16 x .62" Lg.

$

$

Not available

17

Cub Cadet 10941

Height Adjuster Ass'y. - L.H.

$

$

Not available

18

Cub Cadet 11679

Chute Deflector Ass'y. Comp.

$

$

Not available

19

Cub Cadet 11130

Adapter Plate

$

$

Not available

20

Cub Cadet 711-0555

Pivot Pin

$

$

Not available

21

Cub Cadet 726-0106

Push Nut 1/4" Rod

$4.49

$

Usually ships in 3-6 days

0

22

Cub Cadet 732-0253

Torsion Spring

$

$

Not available

23

Cub Cadet 710-0289

Hex Bolt 1/4-20 x .50" Lg.
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

24

Cub Cadet 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.99

$

In Stock, Qty 12

0

26

Cub Cadet 12935

Handle Mount Brkt. Ass'y. - L.H.

$

$

Not available

27

Cub Cadet 710-0603

Hex Wash. Hd. B-Tap. Scr. 5/16-18 x .50" Lg.

$5.49

$

Usually ships in 3-6 days

0

28

Cub Cadet 12936

Handle Mount Brkt. Ass'y. - R.H.

$

$

Not available

29

Cub Cadet 14909

20" Deck Ass'y.

Note: (154113)

$

$

Currently unavailable

Cub Cadet 14918

22" Deck Ass'y.

Note: (164113)

Variations

14918-0638

Cub Cadet 14918-0638

DECK ASSEM - MTD/TROY-BILT RED (0638)

$

$

Not available

14918-0650

Cub Cadet 14918-0650

DECK ASSEM - RED METALLIC (0650)

$

$

Not available

$

$

30

Cub Cadet 710-0654

Hex Wash. Hd. TT-Tap Scr. 3/8-16 x 1.00" Lg.
(Superseded to 710-0654A)

$4.99

$

In Stock, Qty 20+

0

31

Cub Cadet 714-0104

Intern. Cot. Pin 5/16" Dia.

$4.49

$

In Stock, Qty 10

0

32

Cub Cadet 726-0192

Cable Tie

$

$

Not available

35

Cub Cadet 720-0190

Spring Lever Knob
(Superseded to 731-13116-1)

$14.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 732-0401

Lockout Spring

$

$

Not available

37

Cub Cadet 710-0818

Hex Bolt 3/8-24 x 2.00" Lg. (Grade 8)

$7.49

$

In Stock, only 2 left!

0

38

Cub Cadet 712-0328

Hex Nut 3/8-24 Thd. (Grade 8)
(Superseded to 712-0241)

$4.99

$

In Stock, only 2 left!

0

39

Cub Cadet 717-0480

Blade Brake Clutch Comp.

$

$

Currently unavailable

40

Cub Cadet 14300

Clutch Blade Housing Ass'y.

$

$

Not available

41

Cub Cadet 732-0396

Compression Spring .35" O.D. x 2.00" Lg.

$

$

Not available

42

Cub Cadet 741-0124

Ball Brg. .669 I.D. x 1.574 O.D.
(Superseded to 941-0600)

$26.99

$

In Stock, Qty 20+

0

43

Cub Cadet 14304

Clutching Cone

$

$

Not available

44

Cub Cadet 14305

Brake Cup Cone

$

$

Currently unavailable

45

Cub Cadet 14306

Clutch Housing

$

$

Currently unavailable

46

Cub Cadet 710-0875

Hex Tap L-Scr. 1/4-20 x .75" Lg.

$4.49

$

In Stock, only 1 left!

0

47

Cub Cadet 719-0256

Fan Adapter

$

$

Not available

48

Cub Cadet 731-0520

Ball Block

$

$

Not available

49

Cub Cadet 732-0397

Extension Spring .35" O.D. x 1.75" Lg.

$

$

Not available

51

Cub Cadet 736-0333

Fl-Wash. .690" I.D. x 1.060 O.D.

$

$

Not available

52

Cub Cadet 741-0326

Steel Ball .500" Dia.

$

$

Not available

53

Cub Cadet 746-0400

Clutch Cable - 46.0"

$

$

Not available

54

Cub Cadet 731-0607

Lock Pin .314" Dia. x 1.70" Lg.

$

$

Not available

55

Cub Cadet 736-0105

Bell-Wash. .400" I.D. x .88" O.D.

$4.99

$

In Stock, Qty 6

0

56

Cub Cadet 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 11

0

57

Cub Cadet 750-0434

Spacer

$7.49

$

Usually ships in 3-6 days

0

58

Cub Cadet 741-0484

Flange Ball Bearing 1/2" I.D.
(Superseded to 941-0484)

$7.99

$

Usually ships in 3-6 days

0

59

Cub Cadet 736-0105

Bell-Wash. .400" I.D. x .88" O.D.

$4.99

$

In Stock, Qty 6

0

60

Cub Cadet 710-0427

Hex Bolt 3/8-16 x 2.00" Lg.
(Superseded to 710-3144)

$4.99

$

In Stock, Qty 19

0

61

Cub Cadet 710-0796

Truss Mach. Scr. #12 x 1.50" Lg.

$5.99

$

In Stock, Qty 6

0

62

Cub Cadet 726-0135

Cap Speed Nut 5/16" Rod

$7.49

$

In Stock, Qty 10

0

63

Cub Cadet 731-0523

Control Panel Half

$

$

Not available

64

Cub Cadet 731-0524

Control Disc Pin

$

$

Not available

65

Cub Cadet 731-0526

Clutch Panel Half

$

$

Not available

66

Cub Cadet 731-0528

Throttle Control Lever
(Superseded to 931-0972)

$10.99

$

In Stock, Qty 13

0

67

Cub Cadet 749-0536

Upper Handle
(Superseded to 749-0538E-0637)

$

$

Not available

68

Cub Cadet 710-0429

Hex "B" Tap Scr. #10 x .38" Lg.
(Superseded to 910-0429)

$3.99

$

Usually ships in 3-6 days

0

69

Cub Cadet 751-0333

Casing Clamp

$

$

Not available

70

Cub Cadet 710-0227

Hex Wash. Hd. "AB" Tap Scr. #8 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

71

Cub Cadet 751-0334

Short Ext. Oil Fill

$

$

Currently unavailable

72

Cub Cadet 710-0776

Hex Wash. Hd. "AB" Tap Scr. 1/4 x .62" Lg.
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 15

0

73

Cub Cadet 731-0581

Rear Flap Ass'y.
(Superseded to 731-0665)

Note: (154113)

$

$

Not available

Cub Cadet 731-0587

Rear Flap Ass'y.

Note: (164113)

$

$

Not available

74

Cub Cadet 14835

Retainer Strip

Note: (154113)

$

$

Not available

Cub Cadet 14836

Retainer Strip

Note: (164113)

$

$

Not available

75

Cub Cadet 710-0671

Curved Carriage Bolt 5/16-18 x 1.38" Lg.

$

$

Not available

76

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

77

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.99

$

In Stock, Qty 20+

0

78

Cub Cadet 777-3453

Control Label-Handle

$

$

Currently unavailable

79

Cub Cadet 777-3456

Control Label-Throttle

$

$

Not available
