16400 - Toro Walk-Behind Mower (SN: 020000001 - 029999999) (1992) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

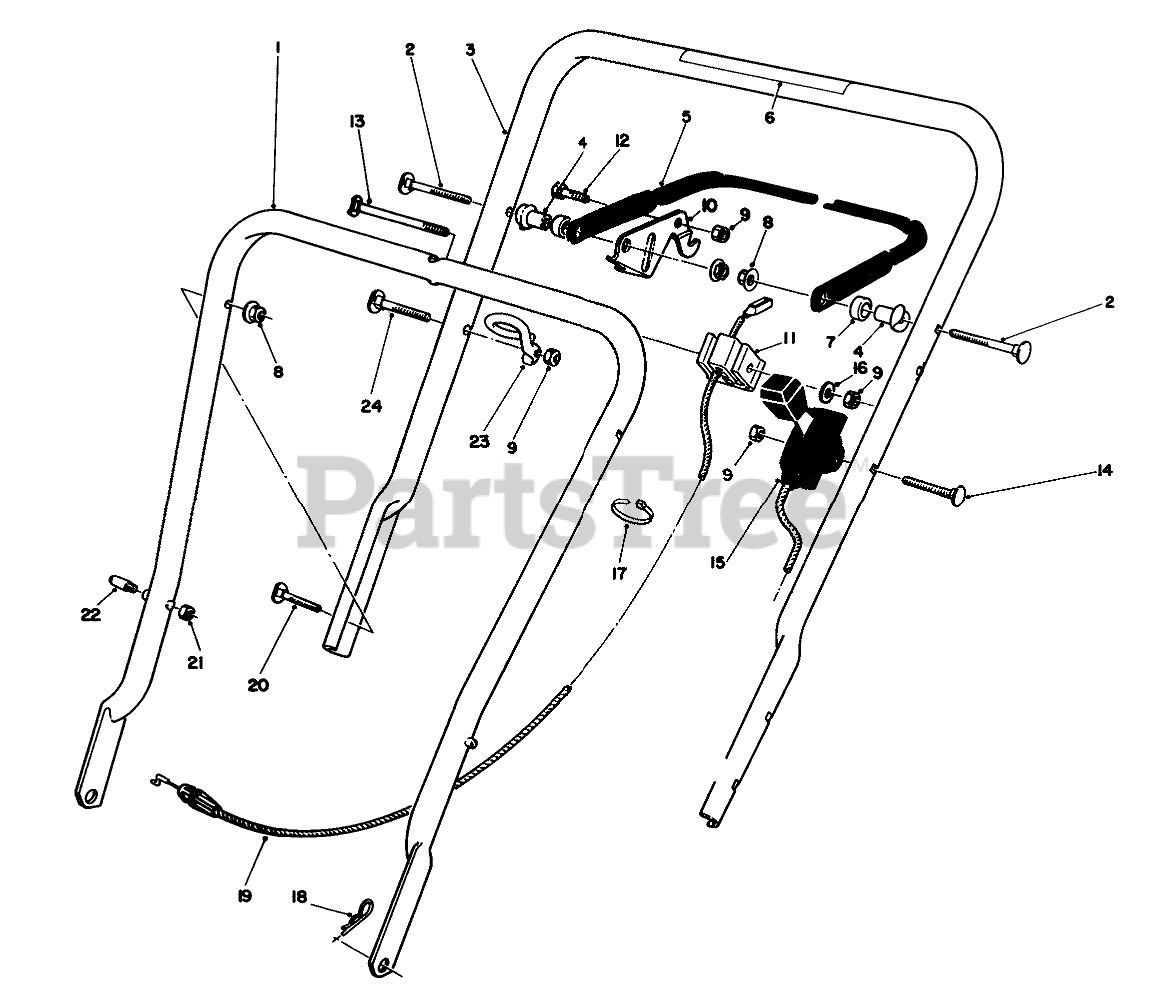

HANDLE ASSEMBLY Parts Diagram

  • Title
1

Toro Part# 49-1690

LOWER HANDLE ASM
Usually ships in 5 to 8 days

$

$124.77

0

2

Toro Part# 17-9421

5/16-18 X 2 HNDLE SCREW
(Superseded to 92-2260)
Usually ships in 1 day

$

$3.34

0

3

Toro Part# 14-3549

Handle-Upper (Incl. Ref. #6)
Usually ships in 5 to 8 days

$

$211.90

0

4

Toro Part# 49-1630

SPACER-SUPPORT
Usually ships in 5 to 8 days

$

$7.26

0

5

Toro Part# 71-3080

Bar-Control
(Superseded to 71-3080-05)
Usually ships in 5 to 8 days

$

$31.41

0

6

Toro Part# 56-6280

WARNING DECAL
Usually ships same day

Not available

$

$

7

Toro Part# 256-276

SPACER-NYLON
Usually ships in 5 to 8 days

$

$2.23

0

8

Toro Part# 3296-58

NUT-LOCK, NI
Usually ships in 1 day

$

$2.05

0

9

Toro Part# 3296-42

NUT-LOCK, NI
Usually ships in 1 day

$

$0.40

0

10

Toro Part# 77-5270

LEVER-CONTROL
Usually ships in 5 to 8 days

$

$19.51

0

11

Toro Part# 46-6980

SUPPORT-CABLE
Usually ships in 1 day

$

$13.33

0

12

Toro Part# 321-3

SCREW-HH
Usually ships in 1 day

$

$1.13

0

13

Toro Part# 46-6434

HANDLE SCREW
Usually ships in 5 to 8 days

$

$3.56

0

14

Toro Part# 46-6430

SCREW-HANDLE
Usually ships in 5 to 8 days

$

$8.93

0

15

Toro Part# 76-3248

THROTTLE CONTROL
Usually ships in 5 to 8 days

$

$89.12

0

16

Toro Part# 3256-22

WASHER-FLAT
Usually ships in 1 day

$

$0.44

0

17
Usually ships in 1 day

$

$0.77

0

18

Toro Part# 3290-255

PIN-COTTER, HAIR
Usually ships in 5 to 8 days

$

$7.02

0

19

Toro Part# 76-4332

OBS BRAKE CONTROL
Usually ships in 5 to 8 days

$

$36.82

0

20

Toro Part# 17-9424

SCREW
(Superseded to 6-6330)
Usually ships same day

Not available

$

$

21

Toro Part# 3296-47

NUT-LOCK, NI
Usually ships in 1 day

$

$3.46

0

22

Toro Part# 49-2750

HANDLE PIN
Usually ships in 5 to 8 days

$

$26.16

0

23

Toro Part# 46-8080

Guide
(Superseded to 86-9671)
Usually ships in 1 day

$

$4.24

0

24

Toro Part# 46-6433

HANDLE SCREW
Usually ships in 5 to 8 days

$

$9.76

0

Toro Part# 14-3699

Loose Parts
Usually ships same day

Not available

$

$
