16401 - Toro Walk-Behind Mower (SN: 049000001 - 049999999) (1994) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

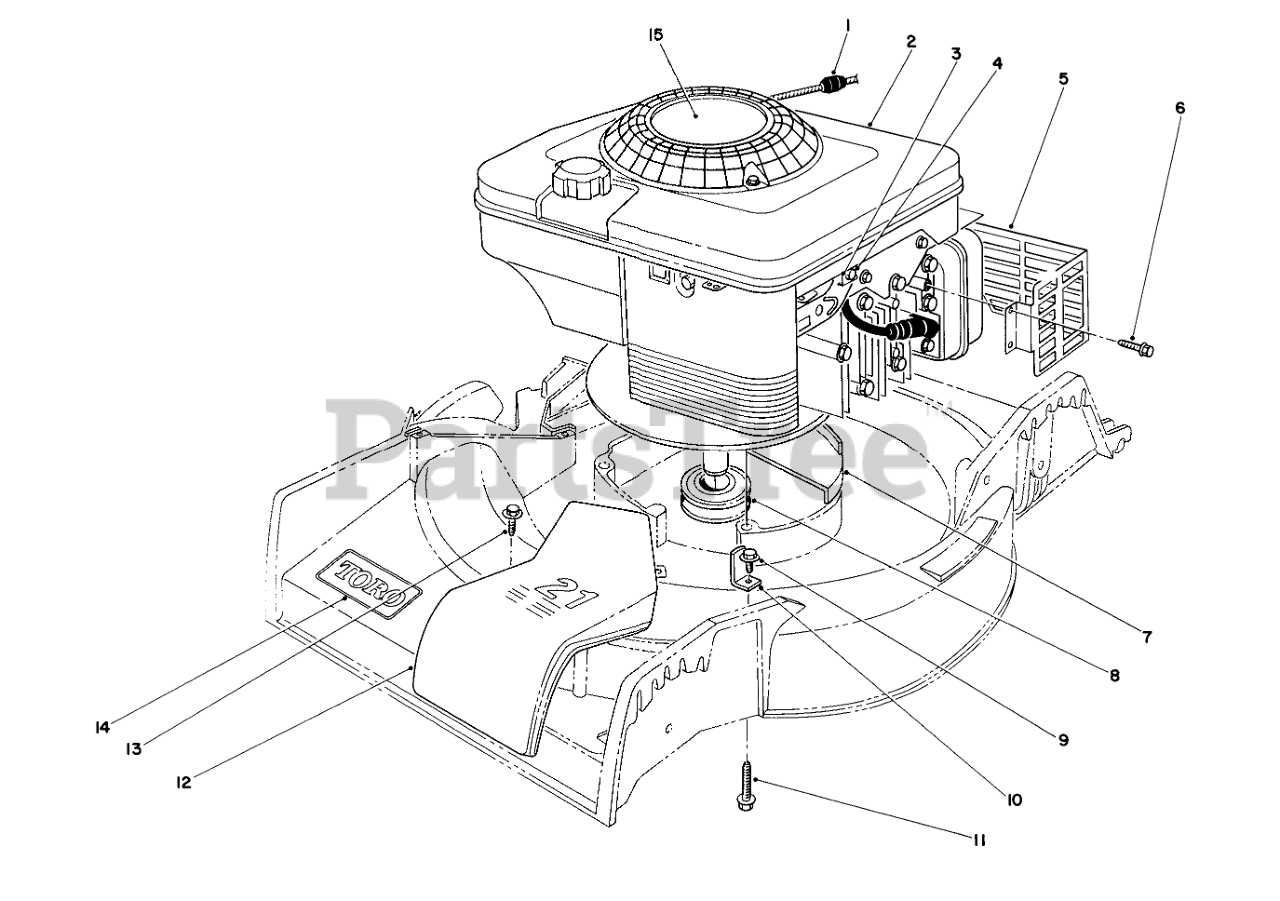

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 2210-316

STOP-ROPE

$7.99

$

Usually ships in 3-6 days

0

2

Engine-Briggs and Stratton 084232-0121-e1

$

$

Not available

3

Toro 2210-249

CLAMP-CASING

$3.49

$

Usually ships in 3-6 days

0

4

Toro 86-7990

CLAMP SCREW F/W ENGINE

$3.49

$

Usually ships in 3-6 days

0

5

Toro 82-8550

SHIELD-MUFFLER
(Superseded to 104-7577-03)

$25.99

$

Usually ships in 3-6 days

0

6

Toro 32144-73

SCREW-HWH
(Superseded to 104-2065)

$0.99

$

In Stock, Qty 20+

0

7

Toro 27-7470

HOUSING CAP

$

$

Not available

8

Toro 46-7910

PULLEY-DRIVER

$36.99

$

In Stock, only 2 left!

0

9

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

10

Toro 70-8080

BELT GUIDE

$3.49

$

In Stock, only 1 left!

0

11

Toro 32144-105

THD FORM SCREW

$

$

Not available

12

Toro 46-4780

BELT COVER 21" S D

$30.99

$

Usually ships in 3-6 days

0

13

Toro 32144-112

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

14

Toro 71-0600

DECAL

$13.99

$

Usually ships in 3-6 days

0

15

Toro 92-2294

DECAL-ENGINE F/W ENGINE

$11.99

$

Usually ships in 3-6 days

0
