16402 - Toro Walk-Behind Mower (SN: 010000001 - 019999999) (1991) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

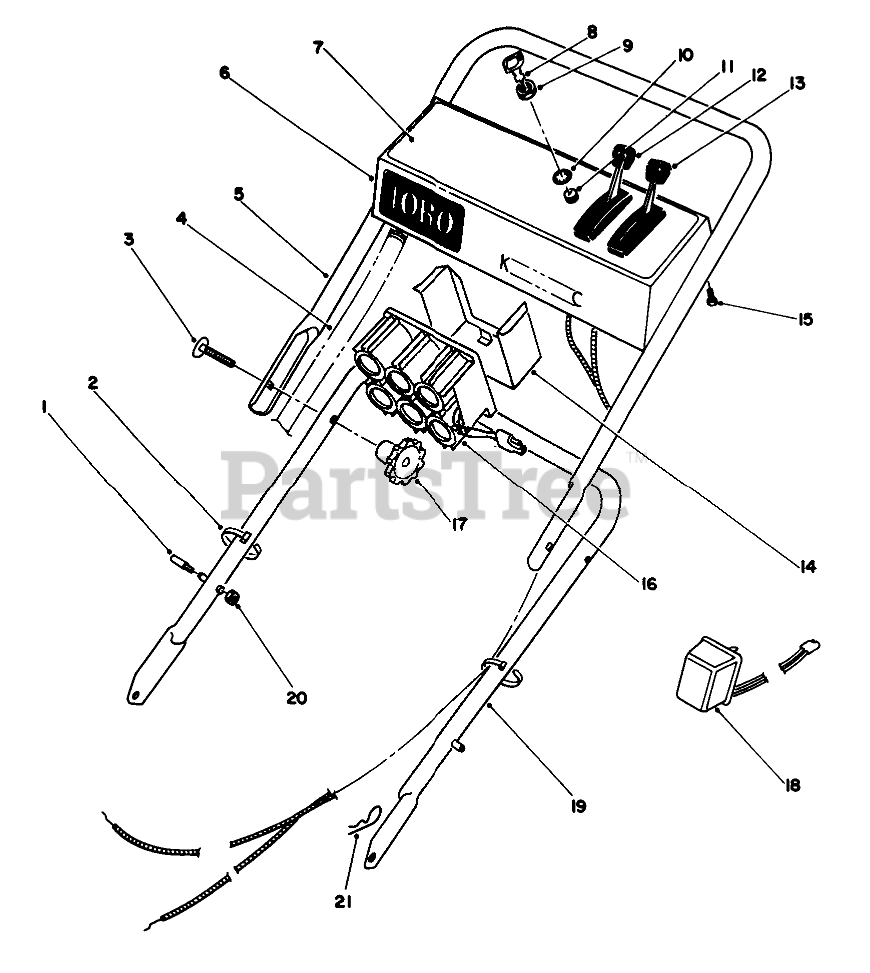

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 49-2750

HANDLE PIN

$32.99

$

Usually ships in 3-6 days

0

2

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 14

0

3

Toro 17-9421

5/16-18 X 2 HNDLE SCREW
(Superseded to 92-2260)

$3.99

$

In Stock, Qty 20+

0

4

Toro 80-3670

WIRING HARNESS

$112.99

$

Usually ships in 3-6 days

0

5

Toro 49-4234

UPPER HANDLE

$

$

Not available

6

Toro 14-3709

Panel-Control (Incl. Ref. #7)

$

$

Not available

7

Toro 80-0440

DECAL - INSTRUCTION

$26.99

$

Usually ships in 3-6 days

0

8

Toro 63-8360

KEY-IGNITION

$5.49

$

In Stock, Qty 20+

0

9

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 18

0

10

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, Qty 13

0

11

Toro 46-5780

Switch-Starter (Incl. Ref. #9 & 10)

$29.99

$

In Stock, Qty 14

0

12

Toro 46-6884

Control-Traction (Bend Type #3) Sheath Lg. 46")(Wire Lg. 2")
(Superseded to 46-6883)

$

$

Not available

13

Toro 74-3894

THROTTLE CONTROL

$95.99

$

Usually ships in 3-6 days

0

14

Toro 55-8180

Retainer-Battery
(Superseded to 55-8180-03)

$35.99

$

Usually ships in 3-6 days

0

15

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

16

Toro 55-7520

BATTERY ASSEMBLY

$176.99

$

In Stock, only 2 left!

0

17

Toro 19-4050

KNOB

$17.99

$

In Stock, Qty 9

0

18

Toro 6-9780

Charger
(Superseded to 131-0848)

$67.99

$

Usually ships in 3-6 days

0

19

Toro 49-1690

LOWER HANDLE ASM

$152.99

$

Usually ships in 3-6 days

0

20

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

21

Toro 3290-255

PIN-COTTER, HAIR

$8.99

$

In Stock, only 1 left!

0

Toro 14-3689

Loose Parts

$

$

Not available
