16402 - Toro Walk-Behind Mower (SN: 010000001 - 019999999) (1991) Handle Assembly Parts Diagram

Walk-Behind Mower

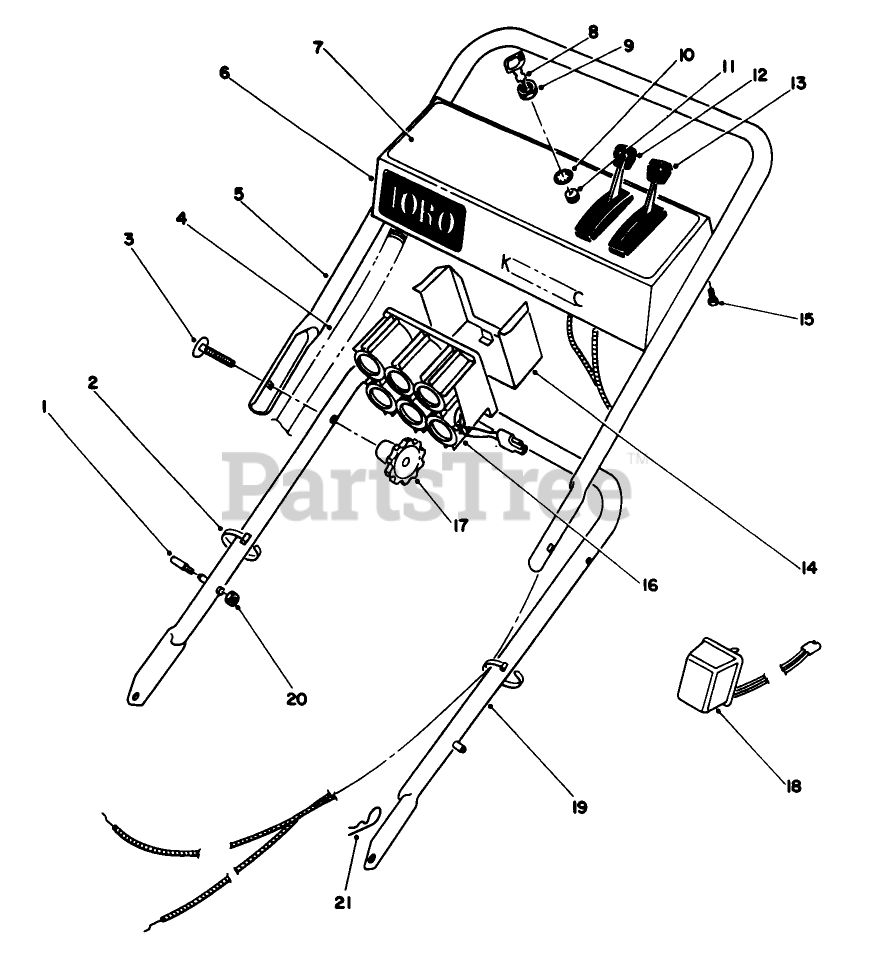

Handle Assembly Parts Diagram

  • Title

1

Toro 49-2750

HANDLE PIN

$38.99

$

Usually ships in 3-6 days

0

2

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 9

0

3

Toro 17-9421

See Supercession: 92-2260
(Superseded to 92-2260)

$4.49

$

In Stock, Qty 20+

0

4

Toro 80-3670

WIRING HARNESS

$

$

Not available

5

Toro 49-4234

DISCONTINUED

$

$

Not available

6

Toro 14-3709

DISCONTINUED

$

$

Not available

7

Toro 80-0440

DECAL - INSTRUCTION

$36.99

$

Usually ships in 3-6 days

0

8

Toro 63-8360

KEY-IGNITION

$6.49

$

In Stock, Qty 20+

0

9

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 9

0

10

Toro 3254-5

WASHER-LOCK

$1.49

$

In Stock, Qty 8

0

11

Toro 46-5780

STARTER SWITCH ASM

$31.99

$

In Stock, only 2 left!

0

12

Toro 46-6884

DISCONTINUED
(Superseded to 46-6883)

$

$

Not available

13

Toro 74-3894

THROTTLE CONTROL

$126.99

$

Usually ships in 3-6 days

0

14

Toro 55-8180

See Supercession: 55-8180-03
(Superseded to 55-8180-03)

$43.99

$

Usually ships in 3-6 days

0

15

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 5

0

16

Toro 55-7520

BATTERY ASSEMBLY,WET

$176.99

$

Usually ships in 3-6 days

0

17

Toro 19-4050

KNOB

$18.99

$

In Stock, only 2 left!

0

18

Toro 6-9780

See Supercession: 131-0848
(Superseded to 131-0848)

$74.99

$

Usually ships in 3-6 days

0

19

Toro 49-1690

LOWER HANDLE ASM

$

$

Not available

20

Toro 3296-47

NUT-LOCK, NI

$4.49

$

In Stock, Qty 19

0

21

Toro 3290-255

PIN-COTTER, HAIR

$9.49

$

In Stock, only 1 left!

0

Toro 14-3689

DISCONTINUED

$

$

Not available
