1641 (143-653-100) - Cub Cadet Garden Tractor (SN: 821060 - 880000) Electric Starting Motor Parts Diagram

Garden Tractor

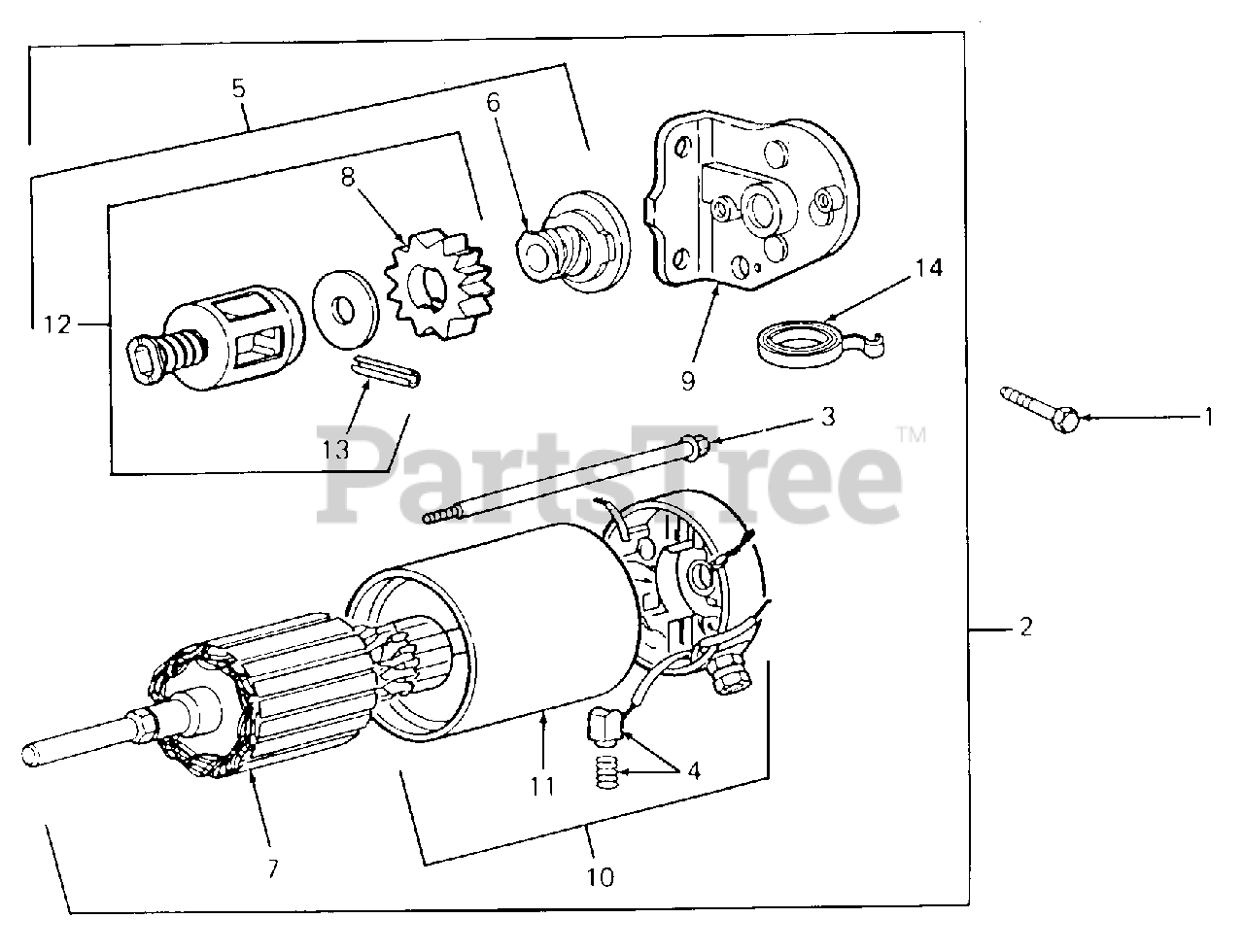

Electric Starting Motor Parts Diagram

  • Title
1

Cub Cadet BS-805247

Screw, Mounting

$

$

Not available

2

Cub Cadet BS-399169

Motor, Starting
(Superseded to BS-795121)

$143.99

$

In Stock, Qty 20+

0

$

$

Currently unavailable

4

Cub Cadet BS-490311

Brush Assy

$35.99

$

Usually ships in 2-12 days

0

5

Cub Cadet BS-490421

Kit, Bendix Drive
(Superseded to BS-696540)

$29.99

$

In Stock, only 3 left!

0

6

Cub Cadet BS-398003

Drive, Starter
(Superseded to BS-692024)

$21.99

$

In Stock, only 1 left!

0

7

Cub Cadet BS-490309

Armature Assy

$74.99

$

Usually ships in 2-12 days

0

8

Cub Cadet BS-280104

Gear
(Superseded to BS-695708)

$6.99

$

In Stock, Qty 20+

0

$56.99

$

Usually ships in 2-12 days

0

10

Cub Cadet BS-490310

Cap Assy, Commutator End

$

$

Not available

11

Cub Cadet BS-399172

Housing Assy

$

$

Not available

12

Cub Cadet BS-490467

Kit, Spring
(Superseded to BS-696540)

$29.99

$

In Stock, only 3 left!

0

13

Cub Cadet BS-94288

Pin, Roll
(Superseded to BS-691641)

$4.99

$

In Stock, only 1 left!

0

14

Cub Cadet BS-490316

Brush, Spring Set

$5.49

$

Usually ships in 2-12 days

0
