1641 (144-653-100) - Cub Cadet Garden Tractor (SN: 821060 - 880000)

Garden Tractor

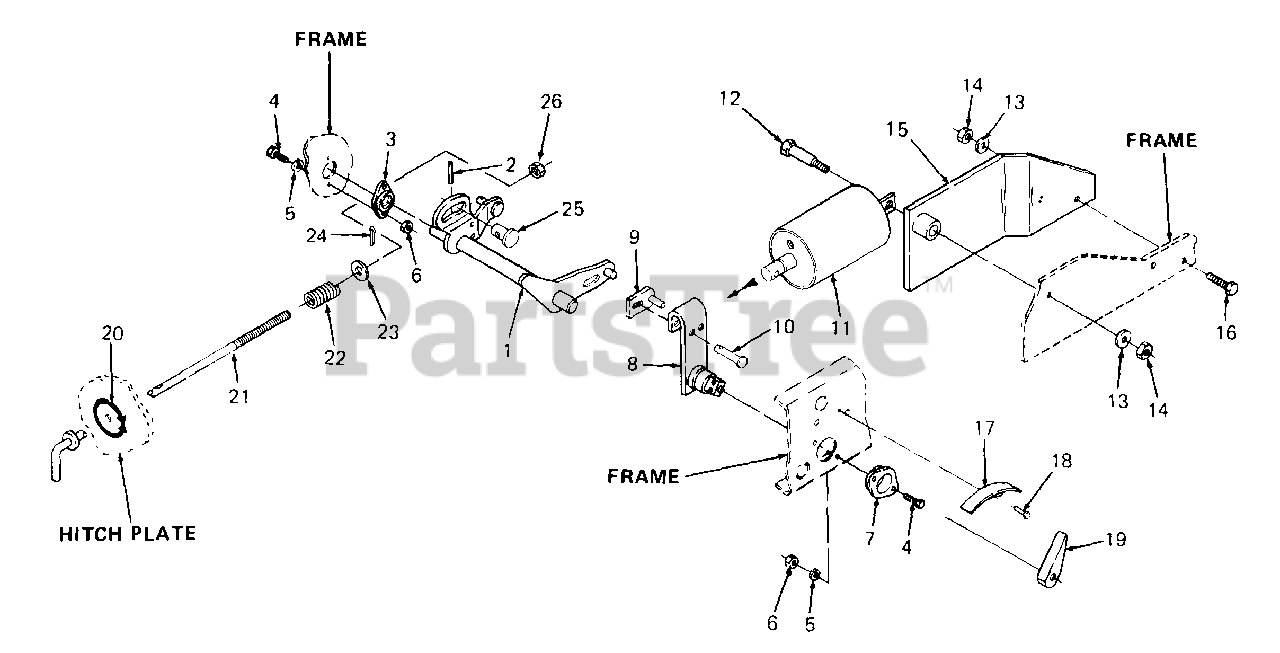

1641 (144-653-100) - Cub Cadet Garden Tractor (SN: 821060 - 880000) > All Diagrams & Kits (44) > Implement Lift & Down Stop Rod

  • Title
703-2001

1

Shaft Assy, Lift

Part# 703-2001

OEM Warranty Repair Part for Cub Cadet

Variations

OLD CUB YELLOW (0498)

LIFT SHAFT ASSEMBLY

Part# OLD CUB YELLOW (0498)

OEM Warranty Repair Part for Cub Cadet

Not available

715-0114

2

Pin, Spiral Spring, 1/4 Dia x 1.50 Lg

Part# 715-0114 (Superseded to 915-0114)

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 1 business day

Your price: $6.18

748-3041

3

Bushing, Lift, LH

Part# 748-3041

OEM Warranty Repair Part for Cub Cadet

Not available

710-3015

4

Screw, Hex Cap, 1/4-20 x .75 Lg GR5

Part# 710-3015

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 1 business day

Your price: $2.61

736-0329

5

Washer, Lock, 1/4

Part# 736-0329 (Superseded to 936-0329)

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 1 business day

Your price: $2.81

712-3006

6

Nut, Hex, 1/4-20 GR5

Part# 712-3006

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 1 business day

Your price: $2.90

748-3040

7

Bushing, Lift, RH

Part# 748-3040

OEM Warranty Repair Part for Cub Cadet

Not available

703-2006

8

Bracket Assy, Lift

Part# 703-2006

OEM Warranty Repair Part for Cub Cadet

Not available

737-3000

Lube, Fitting, 3/16 Drive

Part# 737-3000 (Superseded to 937-3000)

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 1 business day

Your price: $2.89

703-0176

9

Pin Assy, Lift

Part# 703-0176

OEM Warranty Repair Part for Cub Cadet

Not available

711-3030

10

Pin, Clevis, 1/2 Dia x 2.172 Lg

Part# 711-3030

OEM Warranty Repair Part for Cub Cadet

Not available

736-0108

Washer, Flat, .510 x .75 x .033 Thk

Part# 736-0108 (Superseded to 936-0108)

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 1 business day

Your price: $4.37

714-0115

Pin, Cotter, 1/8 Dia x 1.0 Lg

Part# 714-0115 (Superseded to 914-0115)

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 1 business day

Your price: $2.50

717-3005

11

Cylinder, Hydraulic

Part# 717-3005

Note: (For component parts see breakdown under Hydraulic Cylinder)

OEM Warranty Repair Part for Cub Cadet

Not available

738-3008

12

Bolt, Shoulder

Part# 738-3008

OEM Warranty Repair Part for Cub Cadet

Not available

736-3019

13

Washer, Flat, .531 x 1.06 x .134 Thk

Part# 736-3019

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 1 business day

Your price: $3.89

712-3022

14

Nut, Hex Center Lock, 1/2-13 GR5

Part# 712-3022

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 1 business day

Your price: $2.57

703-0174

15

Bracket, Cylinder

Part# 703-0174

OEM Warranty Repair Part for Cub Cadet

Not available

710-3032

16

Screw, Hex Cap, 1/2-13 x 1.25 Lg GR5

Part# 710-3032

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 1 business day

Your price: $4.08

703-0828

17

Bracket, Height Indicator

Part# 703-0828

OEM Warranty Repair Part for Cub Cadet

Currently unavailable

779-3533

Graphic, Lift Height Indicator

Part# 779-3533 (Superseded to 779-3533A)

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 3 to 6 business days

Your price: $2.36

728-0141

18

Rivet, .156 Dia x .250 Lg

Part# 728-0141

OEM Warranty Repair Part for Cub Cadet

Not available

731-3114

19

Indicator, Height

Part# 731-3114

OEM Warranty Repair Part for Cub Cadet

Not available

779-3563

20

Graphic, Down Stop Adjustment

Part# 779-3563

OEM Warranty Repair Part for Cub Cadet

Not available

747-3158

21

Rod, Down Stop Adjustment

Part# 747-3158

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 3 to 6 business days

Your price: $64.39

732-0645

22

Spring, Compression, .501 x .75 x 1.00 Lg

Part# 732-0645 (Superseded to 932-0645)

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 1 business day

Your price: $2.34

736-3064

23

Washer, Flat, .656 x 1.312 x .074 Thk

Part# 736-3064 (Superseded to 936-3064)

OEM Warranty Repair Part for Cub Cadet

Not available

715-0104

24

Pin, Internal Cotter

Part# 715-0104

OEM Warranty Repair Part for Cub Cadet

Not available

711-3317

25

Clevis, .750 x 1.00 Lg

Part# 711-3317

OEM Warranty Repair Part for Cub Cadet

Not available

712-0351

26

Nut, Hex LH Thrd, 1/4-26

Part# 712-0351 (Superseded to 712-04326)

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 3 to 6 business days

Your price: $9.47
