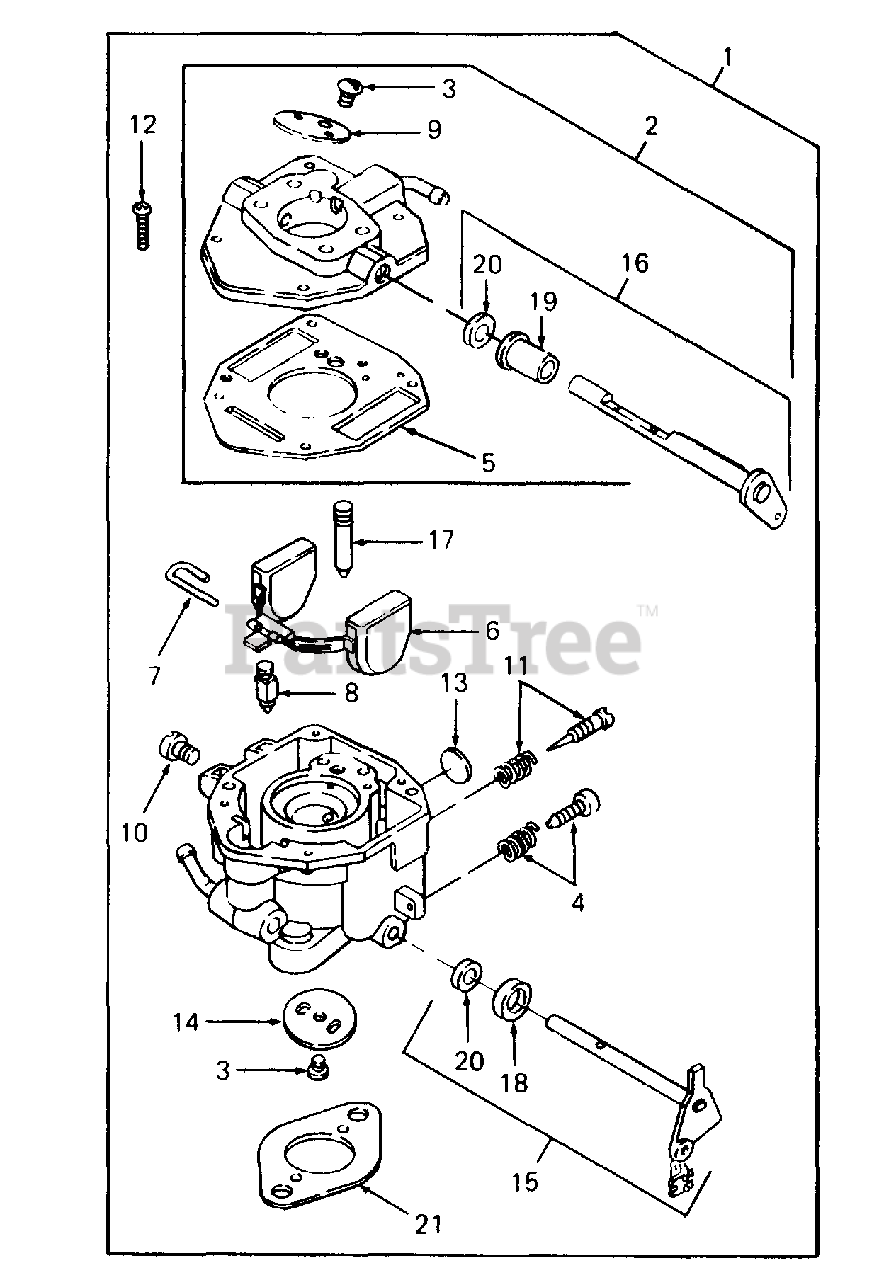

1641 (146-653-100) - Cub Cadet Garden Tractor (SN: 880001 - 899000) Carburetor Parts Diagram

Garden Tractor

Carburetor Parts Diagram

  • Title

1

Cub Cadet BS-808251

Carburetor Assy
(Superseded to BS-809011)

$321.99

$

Usually ships in 2-12 days

0

2

Cub Cadet BS-807919

Body, Upper Carburetor

Note: (Includes Ref No. 3 (Qty 2), 5, 9 & 16)

$

$

Not available

3

Cub Cadet BS-805538

Screw, Valve Mounting
(Superseded to BS-690718)

$5.99

$

In Stock, only 1 left!

0

4

Cub Cadet BS-808177

Screw, Throttle Adjustment

$13.99

$

Usually ships in 2-12 days

0

5

Cub Cadet BS-805541

Gasket, Intake Elbow
(Superseded to BS-692077)

Note: (Included in carburetor overhaul kit BS-808273)

$25.99

$

In Stock, only 1 left!

0

6

Cub Cadet BS-805546

Float Assy
(Superseded to BS-844546)

$29.99

$

In Stock, only 1 left!

0

7

Cub Cadet BS-805545

Pin, Float Hinge

Note: (Included in carburetor overhaul kit BS-808273)

$

$

Not available

8

Cub Cadet BS-805547

Valve, Fuel Inlet
(Superseded to BS-808798)

Note: (Included in carburetor overhaul kit BS-808273)

$

$

Not available

9

Cub Cadet BS-805539

Valve, Choke

$

$

Not available

10

Cub Cadet BS-805853

Jet, Main
(Superseded to BS-690862)

$15.99

$

In Stock, only 1 left!

0

11

Cub Cadet BS-808293

Valve, Idle Adjusting Needle
(Superseded to BS-842870)

$44.99

$

Usually ships in 2-12 days

0

12

Cub Cadet BS-805540

Screw, Upper Body Mounting
(Superseded to BS-690720)

$3.49

$

In Stock, only 2 left!

0

13

Cub Cadet BS-805559

Plug, Welch
(Superseded to BS-690727)

$4.49

$

In Stock, only 1 left!

0

14

Cub Cadet BS-805554

Valve, Throttle

$

$

Not available

15

Cub Cadet BS-807720

Shaft, Throttle

Note: (Includes Ref No. 18 & 20)

$49.99

$

Usually ships in 2-12 days

0

16

Cub Cadet BS-807722

Shaft, Choke

Note: (Includes Ref No. 19 & 20)

$

$

Not available

17

Cub Cadet BS-805553

Jet, Slow Speed
(Superseded to BS-690725)

Note: (Included in carburetor overhaul kit BS-808273)

$39.99

$

Usually ships in 2-12 days

0

18

Cub Cadet BS-805557

Collar, Throttle

Note: (Included in carburetor overhaul kit BS-808273)

$6.99

$

Usually ships in 2-12 days

0

19

Cub Cadet BS-805543

Collar, Choke

Note: (Included in carburetor overhaul kit BS-808273)

$

$

Not available

20

Cub Cadet BS-805544

Seal, Shaft

$

$

Not available

21

Cub Cadet BS-805700

Gasket, Carburetor Mounting
(Superseded to BS-691694)

Note: (Included in carburetor overhaul kit BS-808273);(Included in gasket set BS-807989)

$2.99

$

In Stock, Qty 20+

0

?22

Cub Cadet BS-805549

O-Ring

Note: (Included in carburetor overhaul kit BS-808273)

$

$

Not available

?23

Cub Cadet BS-807723

Plug, Jet

$6.49

$

In Stock, only 2 left!

0

?24

Cub Cadet BS-805862

Cap, Limiter
(Superseded to BS-691516)

Note: (Included in carburetor overhaul kit BS-808273)

$8.49

$

Usually ships in 2-12 days

0
